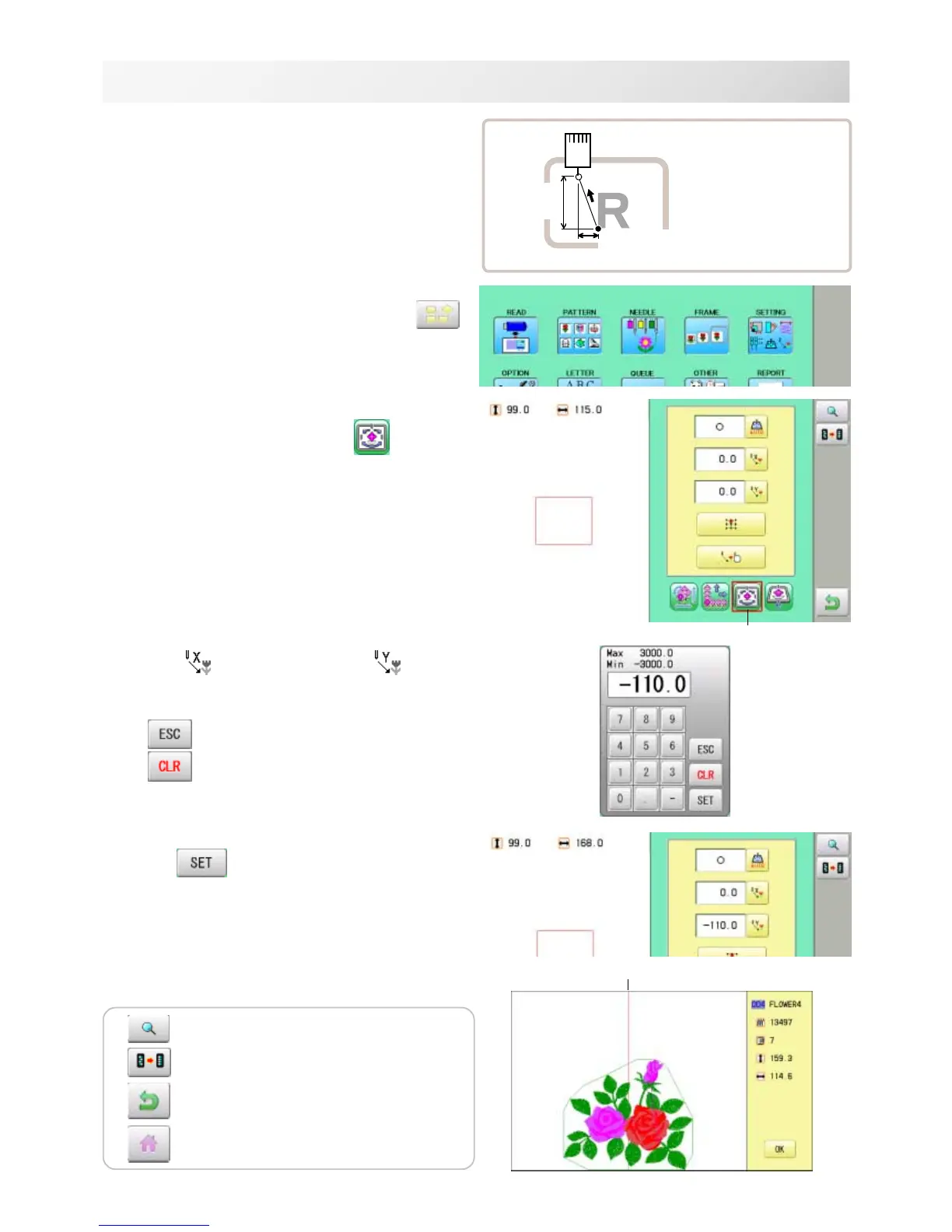

Direct input
You can move the offset manually and save
the position with "teaching input".
1. When the machine is stopped, press
.
2. Select "SETTING" and select
(Offset).
3. Select
(X axis distance) or (Y axis
distance) and select the number.
Changing is cancelled.
Numbers are deleted.
4. Press .
The setting is fixed.
14-9
PATTERN SETTINGS
12_9 NB01
Offset point
Sidewise move
distance
Lengthwise
move
distance
❍ : Offaet point
● : Start point of pattern
Offset
The pattern data may be shown.
Setting is returned to the default.
To return to Menu mode.
to return to Drive mode.
To Next Page
