-SJ -36
7-3
CAP FRAME (OPTION)
7-3 N401

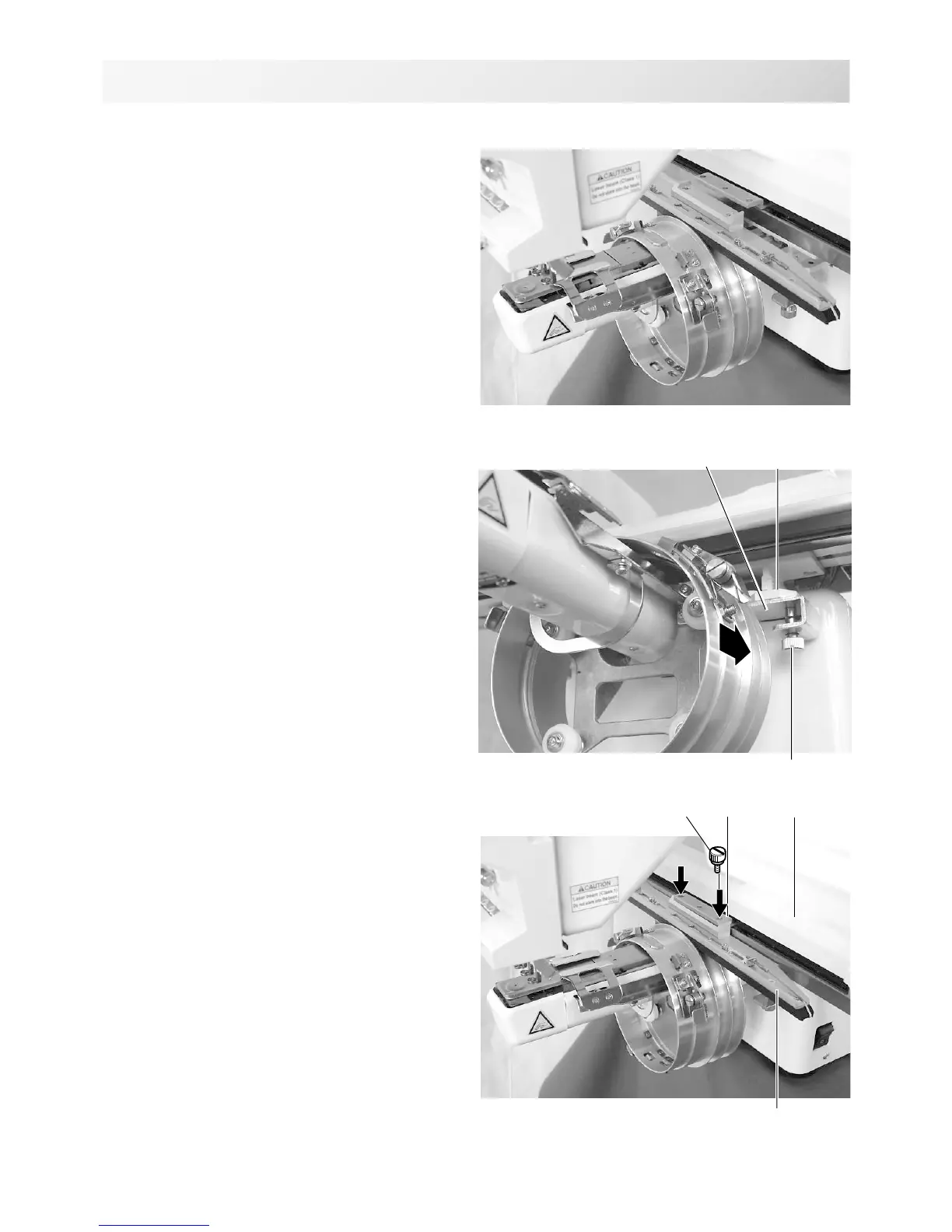

4. Move the cap drive frame backwards away
from you and rotate the rotary cylinder until
the rail bracket is upward as shown at right.
5. Move the cap drive frame in the direction of
the arrow, adjust right-and-left mount base
to carriage arm and fix them by knob bolts.
6. Fix the rail bracket to fixing base by knob
bolts.
You can move the fixing base right or left when it
is hard to tighten the set screw.
Knob bolt
Mount base
Carriage
Rail bracket
Carriage arm
Fixing base
Knob bolt
To Next Page
