Helmer iBX080 - Front

360179-A/B 56
Parts & Schematics
12.1 Front
A
B
C
D
E
F
G
H
I
J
K
L
M
N

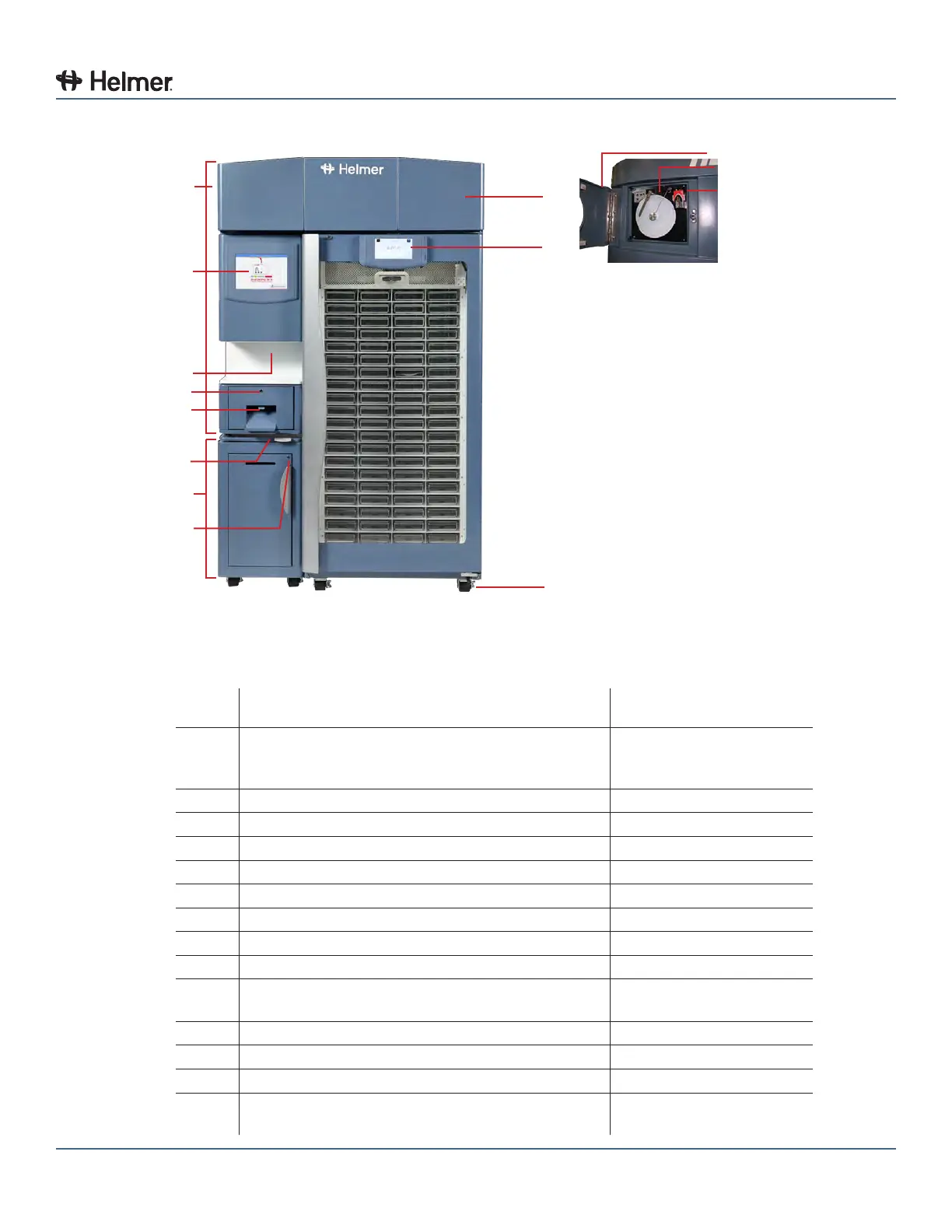

Front features.
Label Description
Part Number /
Service Kit Number
A Access Console Call for part number.
Dependent on voltage and
mounting option.
B BloodTrack

kiosk 800223-1
C Barcode scanner 800216-1
D Keyed printer drawer lock Call for part number.
E Alternate label chute Call for part number.
F Rotating shelf 800218-1
G Consumable cart Call for part number.
H Keyed door lock (consumable cart) Call for part number.
I Temperature chart recorder (optional) 800229-1
J i.C³ monitoring and control system Refer to Section V, Item
12.1.1 for part numbers.
K Caster (swivel with brake) 800227-1
L Chart recorder door (included with kit) 800229-1
M Chart paper (52 sheets) 220366
N Chart recorder backup battery (9 V, non-
rechargeable, alkaline)
120218
