Helmer iBX080 - Rear

360179-A/B 65
Parts & Schematics
12.7.3 Rear
A
B
C
D
E
F
G

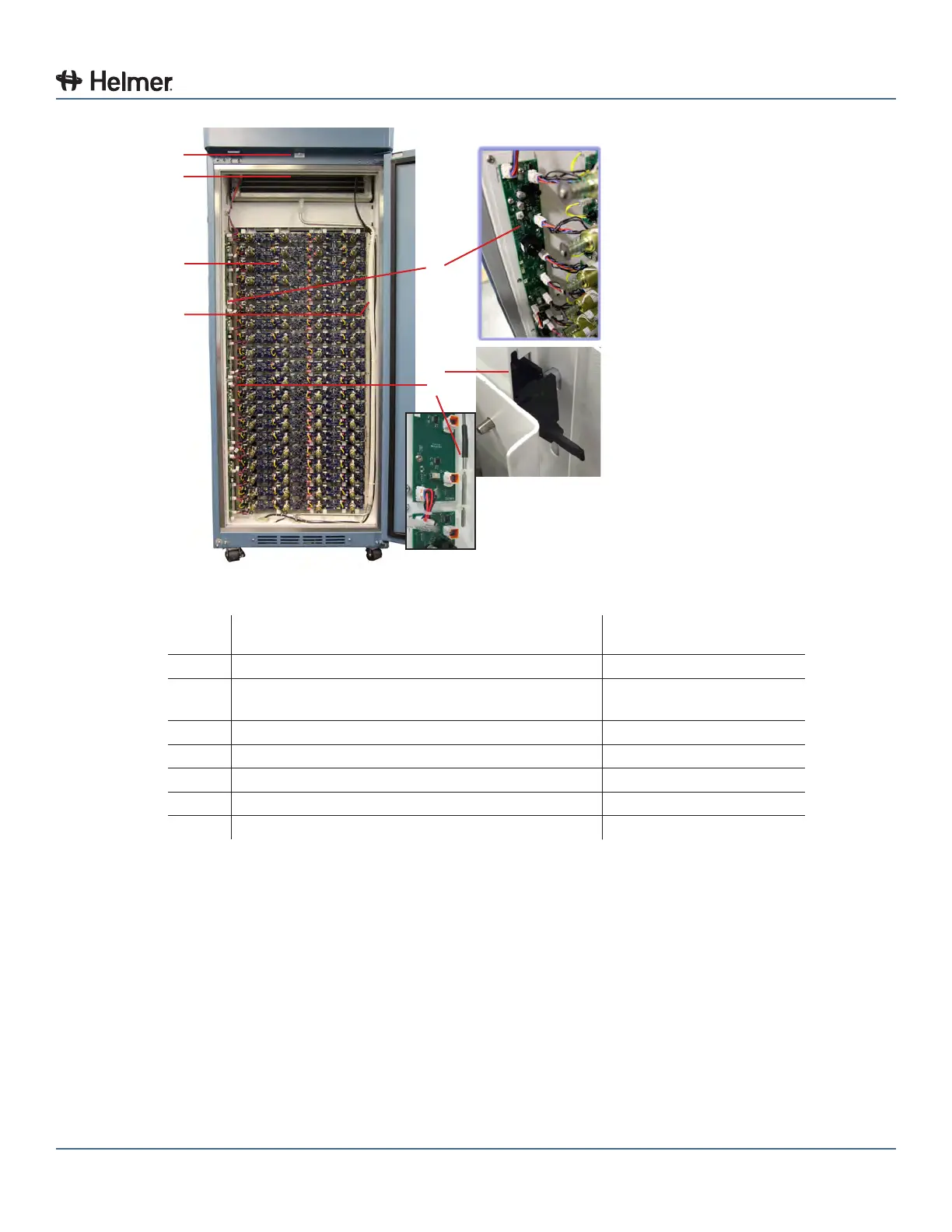

Interior (rear) features.
Label Description
Part Number /
Service Kit Number
A Door switch (rear) 800246-1
B Unit cooler with fan guard Refer to Section 5, Item
12.7.1 for part numbers
C IRACS horizontal board with solenoids 800262-1
D Condensate drain line 800235-1
E VIB board Call for part number.
F Tray latch mechanism 800268-1
G Air probe 800221-1
