360179-A/B 62
Parts & Schematics

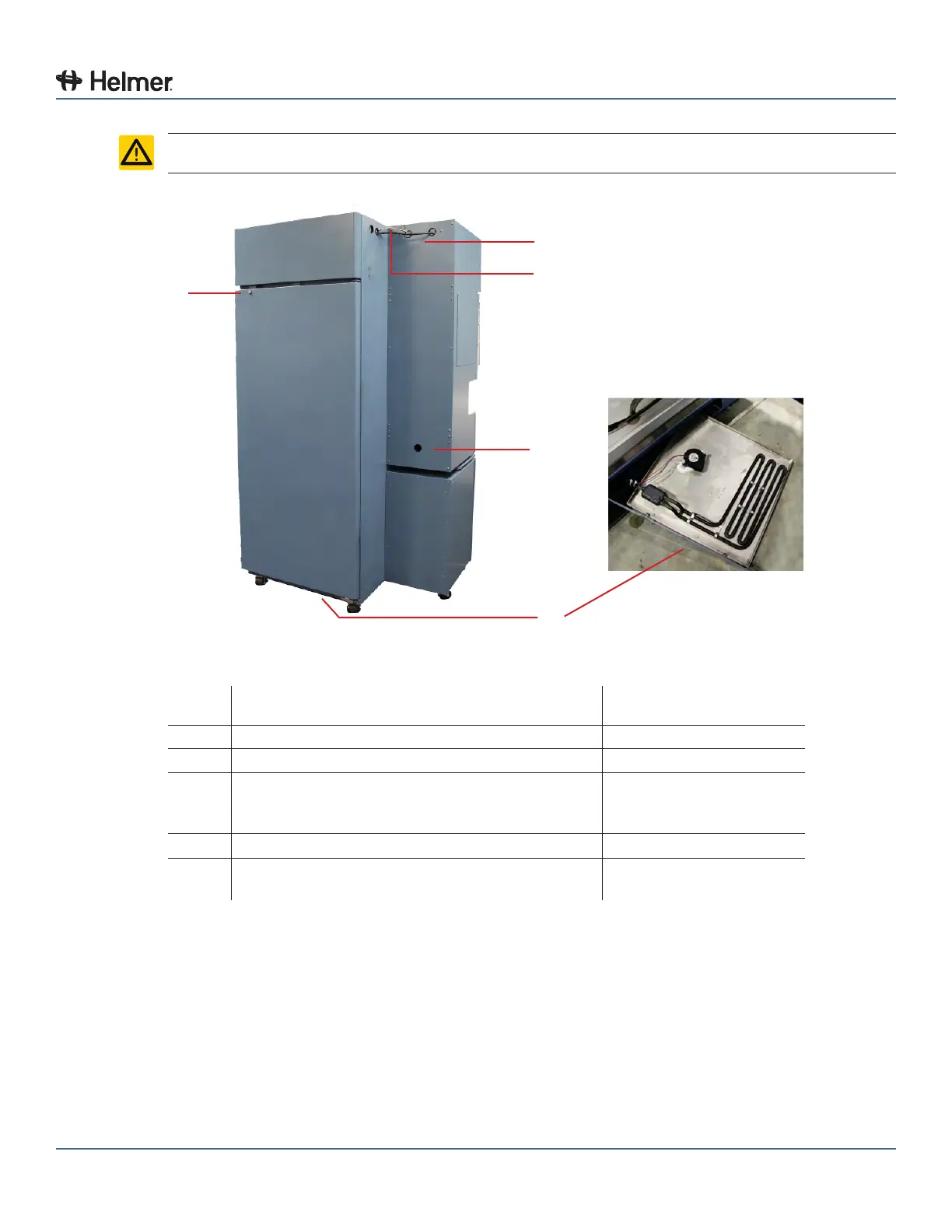

12.6 Rear
CAUTION The condensate evaporator and water evaporation tray are hot.
A
B
C
D
E
Rear features.
Label Description
Part Number /
Service Kit Number
A Keyed door lock (rear) 800271-1
B Access Console AC power cable (6 ft) 401293-1
C Access Console RJ-45 Ethernet cable (5 ft cable
included with side mount option; 20 ft cable
included with table or wall mount option)
401294-1
D Printer drawer cable access hole -
E Condensate evaporator (includes condensate
evaporator, fan, and evaporation tray)
115 V, 60 Hz: 800233-1
230 V, 50/60 Hz: 800234-1
