12.3 Electrical Box Components
WARNING Switch the Compartmental Access Refrigerator AC ON/OFF switch OFF and disconnect
the AC power cord from AC power before opening the electrical box.
NOTICE The i.C³ control board is sensitive to static electricity and can be damaged by electrostatic
discharge. Use proper ESD precautions when handling the board.
A
B
C
D
E
F
G
H
I
J
K
L

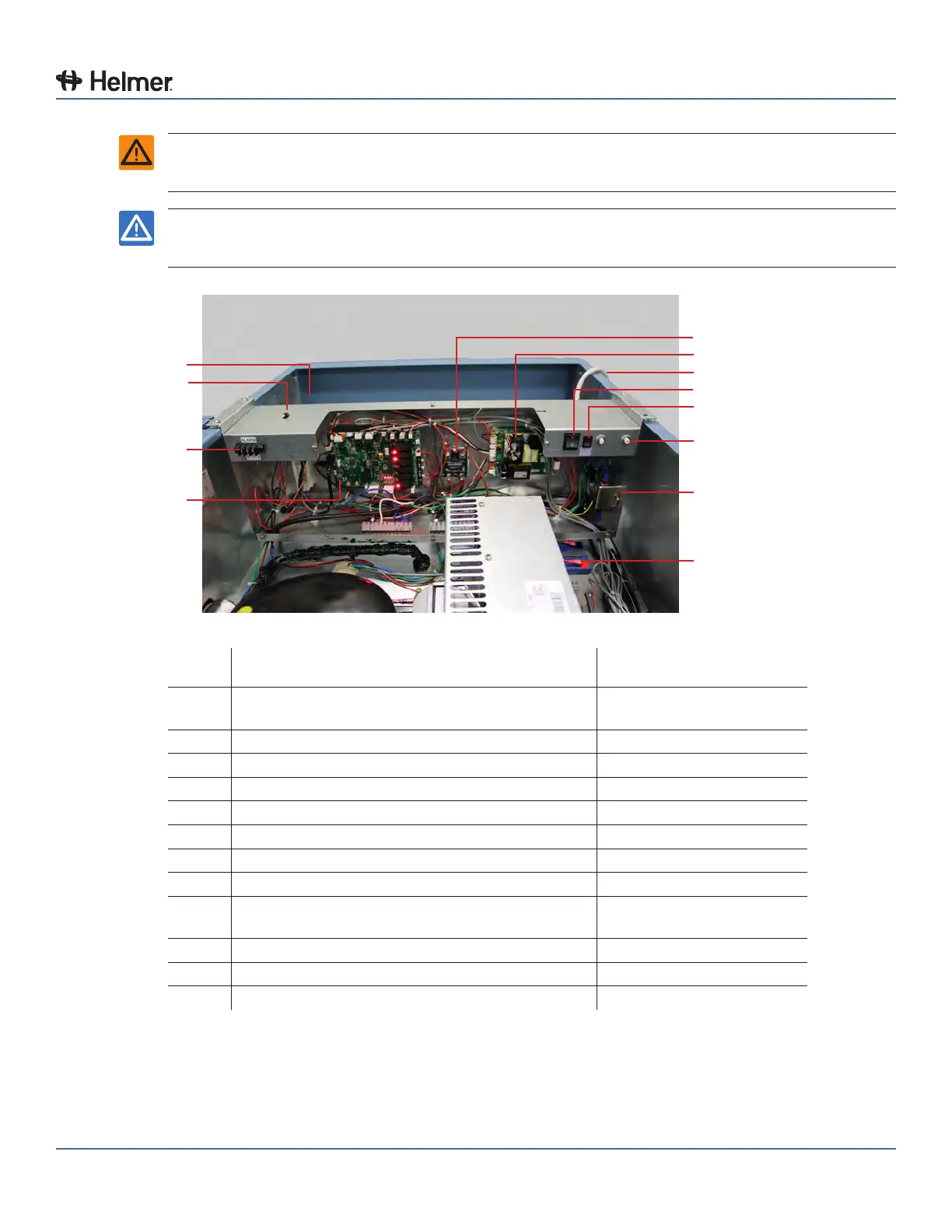

Electrical box components.
Label Description
Part Number /
Service Kit Number
A RJ-45 Ethernet port (located behind electrical
panel)
Call for part number.
B USB port Call for part number.
C Remote alarm contacts Call for part number.
D i.C
3
control processor board 800252-1
E Compressor relay 800232-1
F i.C
3
power supply board 800255-1
G AC power cord Call for part number.
H AC ON/OFF switch 800214-1
I Monitoring system / Access Control backup battery
ON/OFF switch
800259-1
J Circuit breakers ( for 230V units only) 800231-1
K Power line lter Call for part number.
L
i.C
3
Monitoring System / Access Control backup battery 800251-1
