12.1.1 Control System and Display
NOTICE ► The i.C³ display assembly is sensitive to static electricity and can be damaged by
electrostatic discharge. Use proper ESD precautions when handling the display
assembly.
► Although the touchscreen and display board may be replaced independently of the
i.C³ display assembly, Helmer recommends replacing the complete assembly.
A
B
C

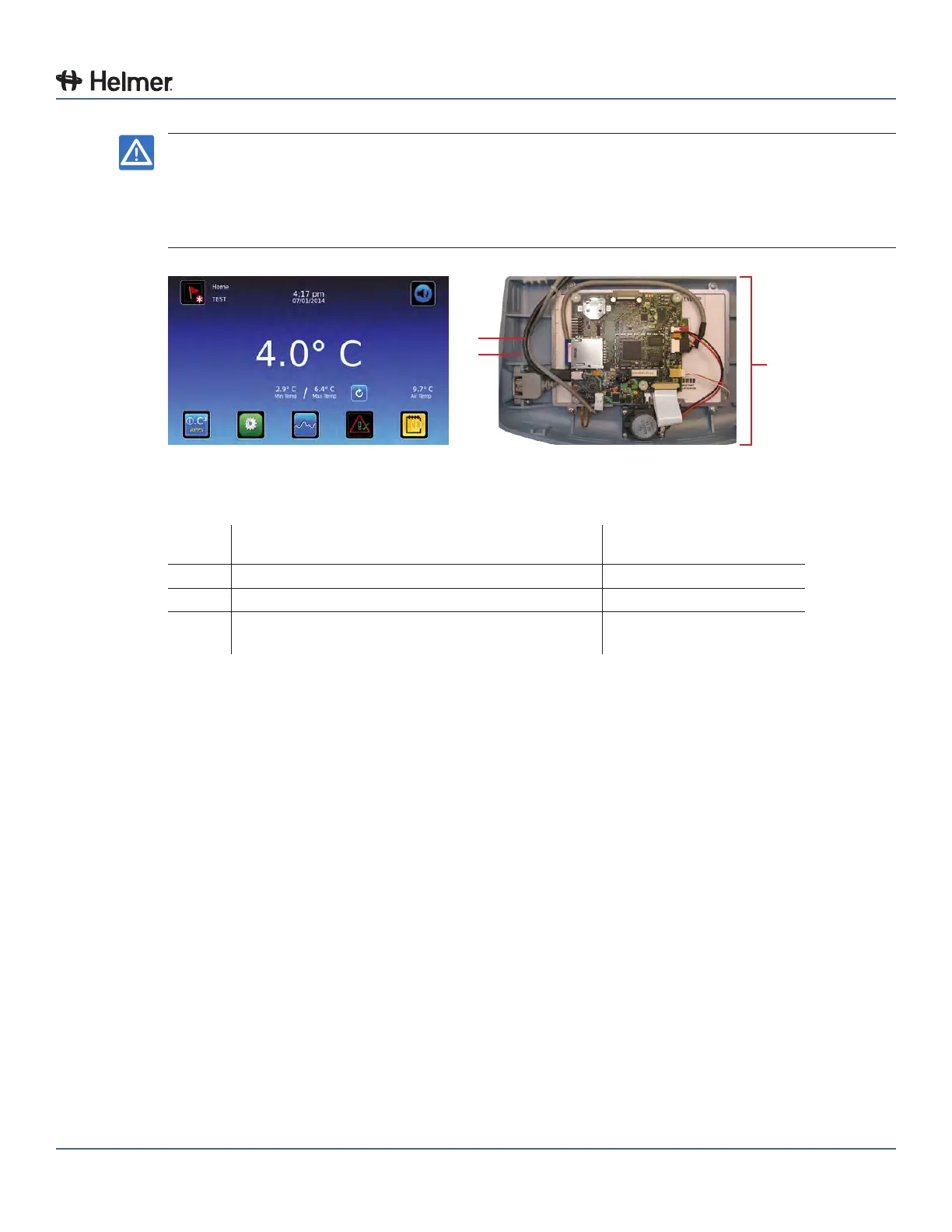

Front view, LCD touchscreen (left)
Rear view of display, showing display board (right)
Label Description
Part Number /
Service Kit Number
A Interface communication cable 800253-1
B Power cable 800253-1
C Display assembly (includes touchscreen, display
board, interface cable, speaker)
800254-1
