360179-A/B 66
Parts & Schematics
12.8 Door and Hinge
A
B
C
D
E
F
G
H
I
J

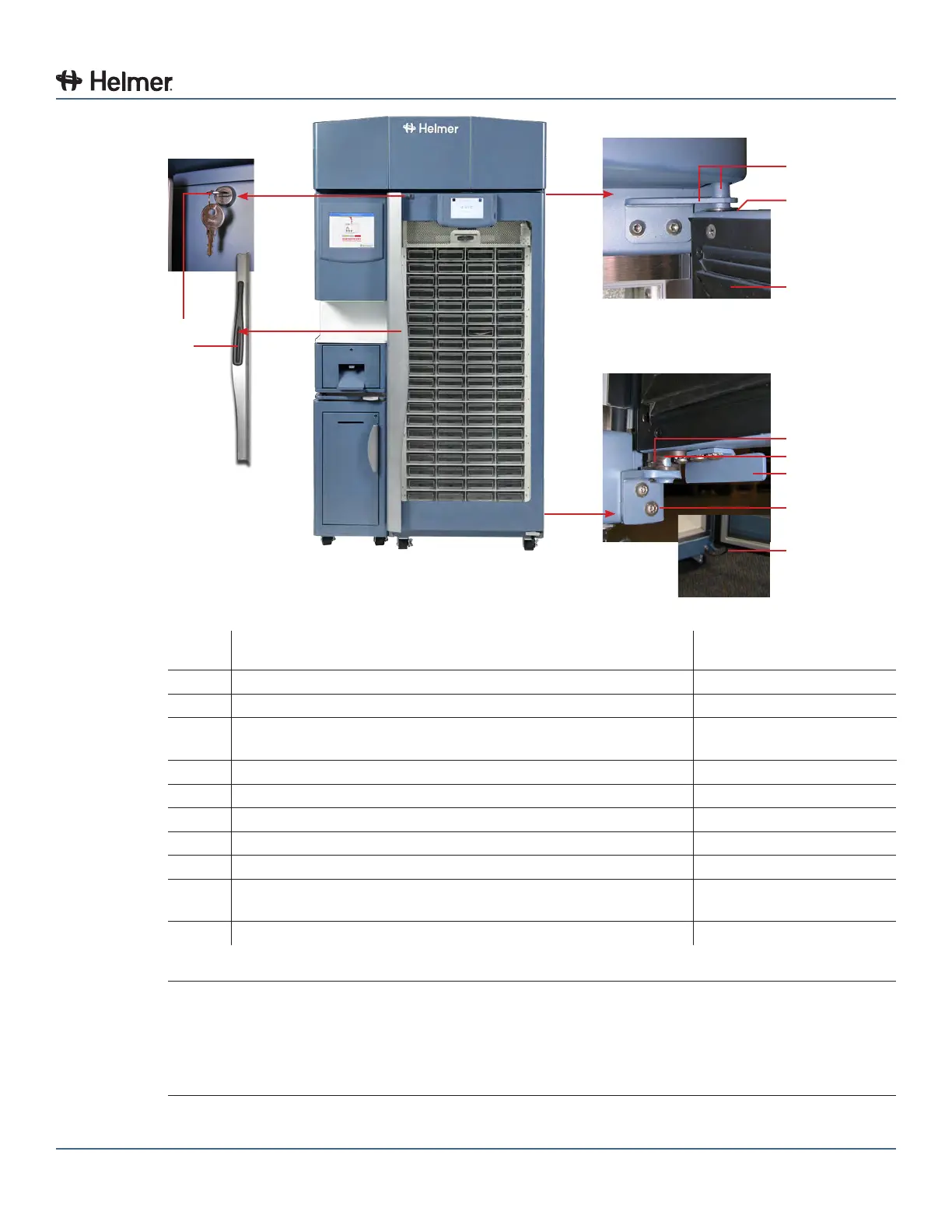

Door and hinge features.
Label Description
Part Number /
Service Kit Number
A Door lock (front) 800270-1
B Door handle pad 320684-1
C Hinge assembly (includes upper and lower) Right hinge: 800245-1
Left hinge: 800264-1
D Upper hinge bearing 220541
E Door gasket 800244-1
F Lower hinge cam (quantity 2) 320742-1
G Lower hinge bearing 220375
H Door stop 320763-1
I Hinge bracket (includes upper and lower) Included with 800245-1
and 800264-1
J Ground strap Call for part number.
NOTE The rear door is not shown, however the rear door features the same components
and part numbers as noted in Section V, Item 12.8 (Door and Hinge), except items B
and J.
The front door is available in left-hinged or right-hinged conguration.
The rear door is available in right-hinged conguration only.
