360179-A/B 64
Parts & Schematics
12.7.2 Front
A
B
C
D
E
F
G
H
I
J
K

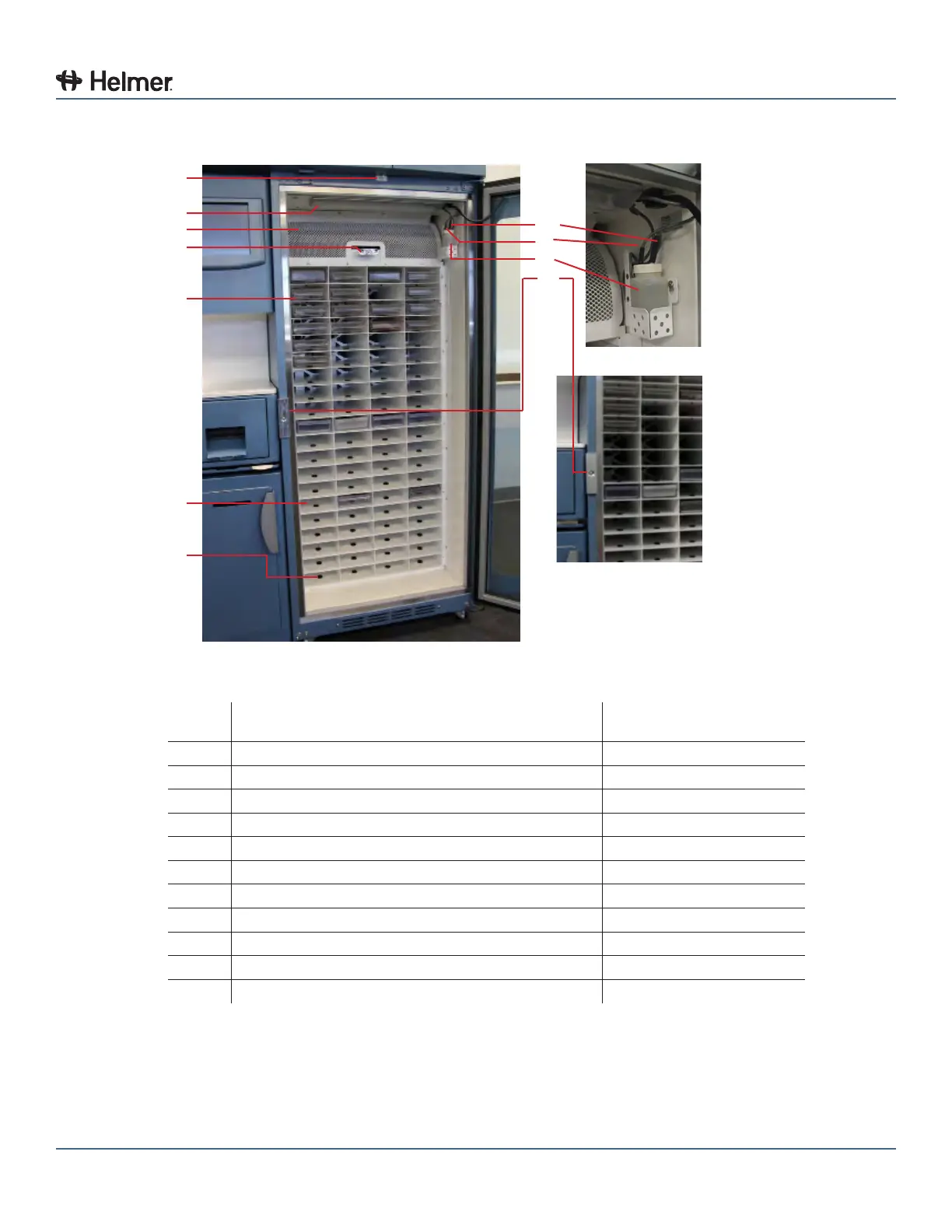

Interior (front) features.
Label Description
Part Number /
Service Kit Number
A Door switch 800246-1
B Chamber light (includes circuit board and cover) 800228-1
C Guard panel 401314-1
D Bypass Release handle and lock 220642
E Tray 800266-1
F Compartment assembly Call for part number.
G Tray bumper (includes 4 bumpers) 800267-1
H Upper chamber probe 800269-1
I Chart recorder probe (optional) 800219-1
J Probe bottle and glycerin kit 400922-1
K Access Control door lock (inside door frame/handle) 800220-1
