HGM COMPUSHIFT II User Manual

COMPUSHIFT II Manual – COMPUSHIFT II Manual
Installation– 30
•
•
•
•
•
•

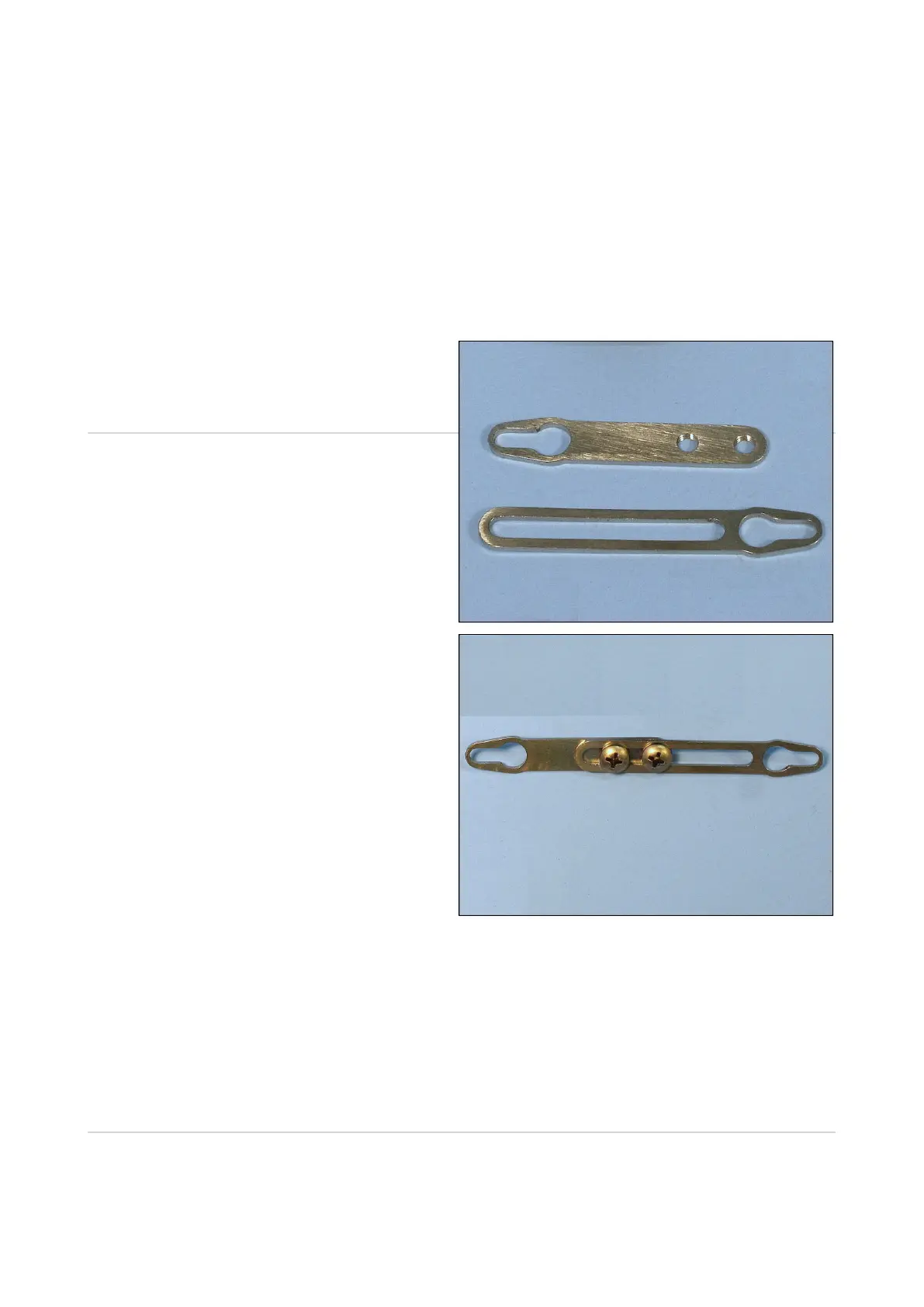

3.4.1.5 Assemble the Adjustable Arm
The Adjustable Arm from your COMPUSHIFT II Kit contains two (4) pieces:
Fixed, threaded section
Sliding section
Two screws
Find and assemble the Adjustable Arm, leaving the screws gently snug.
3.4.1.6 Attach The Throttle Position Sensor
Attach the fully assembled AccuLink TPS to the carburetor using its linkage side-rear manifold bolt. 
The TPSmustbe aligned correctly: rotation of the throttle linkage should match the rotation of the TPS.
The Ratio Armmustbe aligned along a straight line with the TPS (see photo). Hint: think of self-aligning
window louvers.
A straight edge or ruler can help you with correct alignment.
