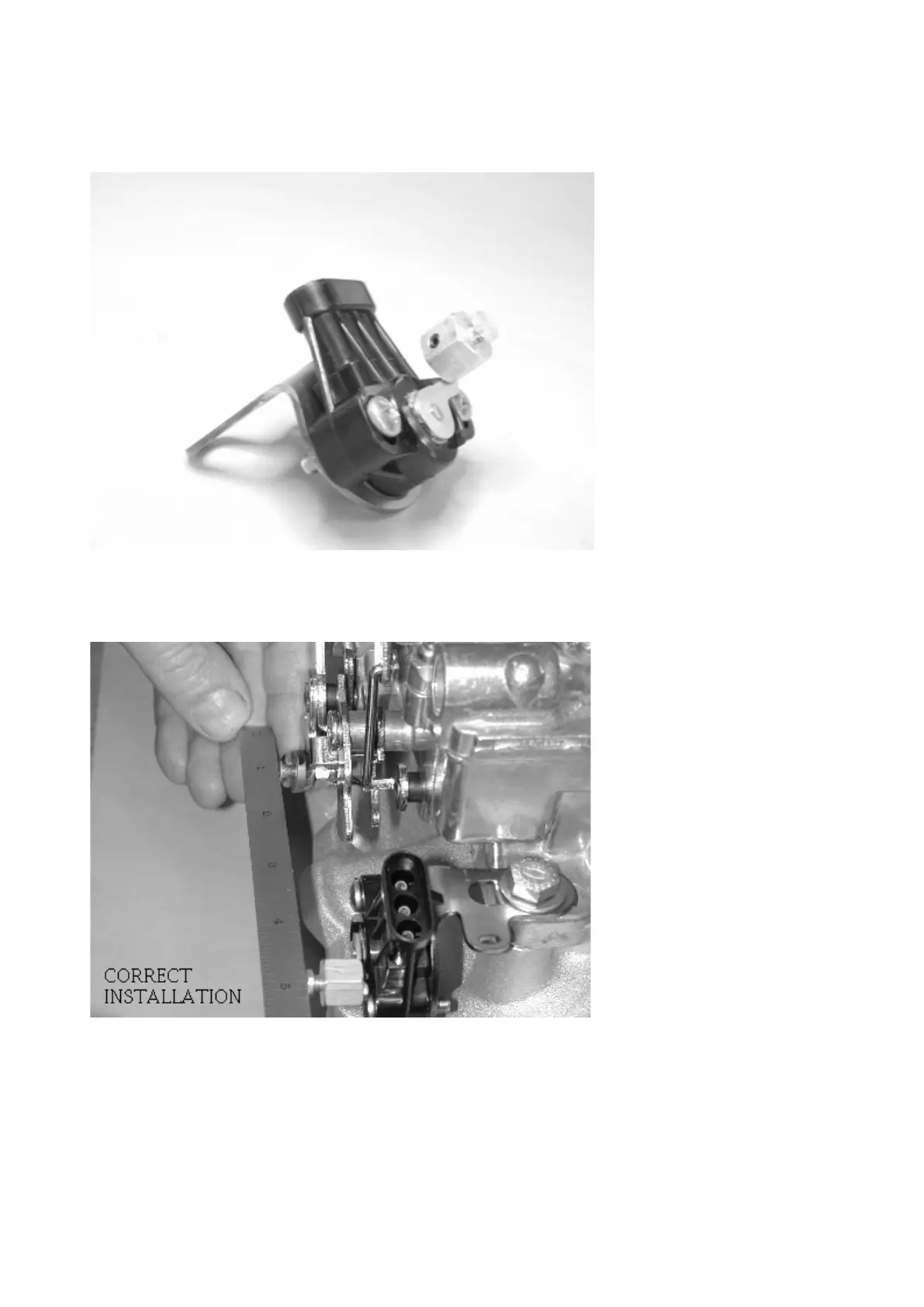

This picture shows the completed sensor and bracket.
7.5.11 Attaching the TPS to the Carburetor
Attach the throttle position sensor and bracket assembly to the carburetor using the carburetor's linkage side rear
manifold bolt.
The sensor must be aligned correctly. The rotation of the throttle linkage should match the rotation of the throttle
position sensor. The ratio arm needs to be aligned along a straight line with the throttle position sensor (think of the
motion of louvers on a window shade). A straight edge or ruler can be used as shown to assist with alignment.
