For the Rochester Quadrajet, set the ratio arm angle so that the ratio arm pin is vertical as shown in the picture
above. Tighten the screw and nut in this position.
7.5.10 Assembling the TPS Bracket

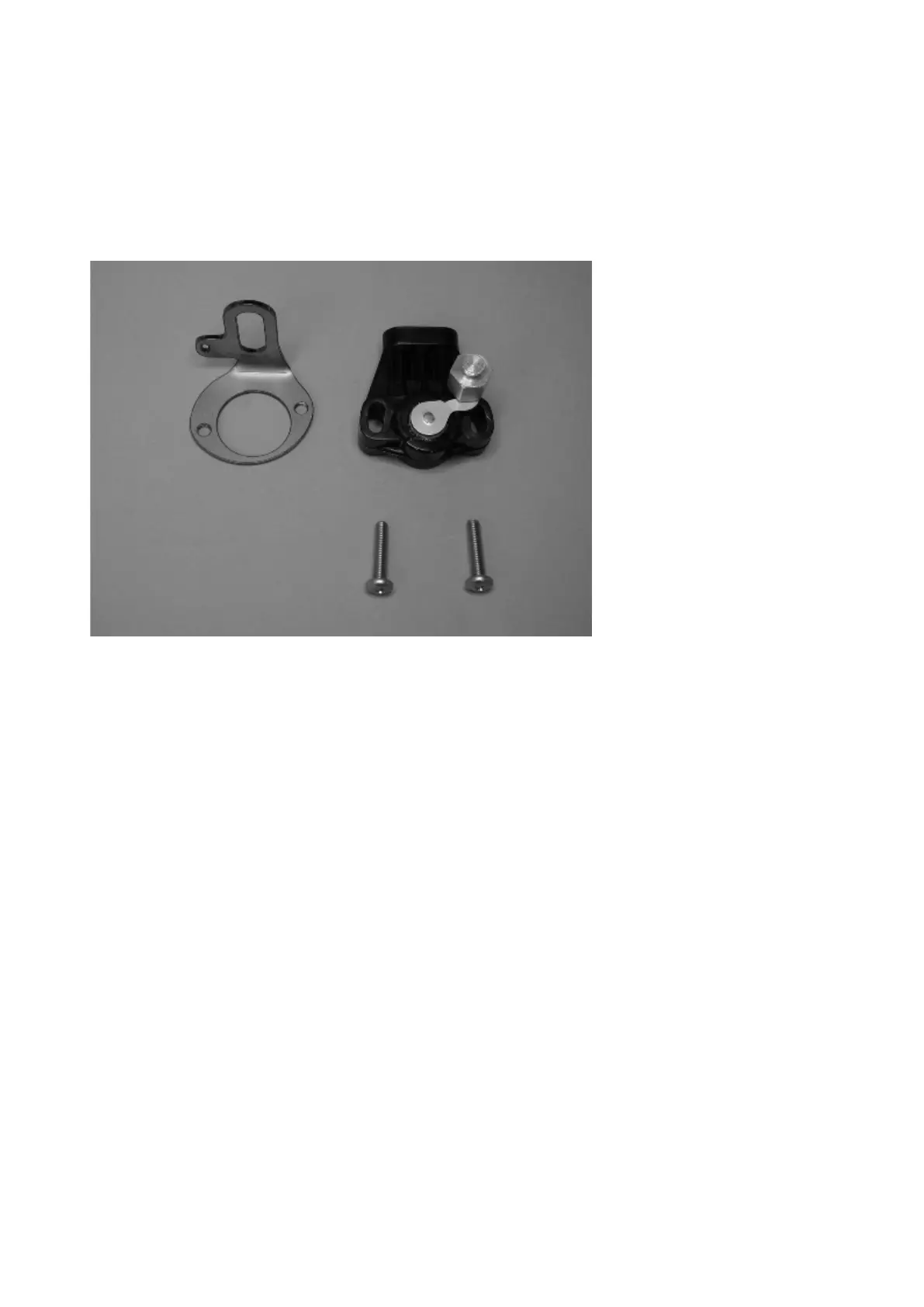

Identify throttle position sensor, sensor bracket, and two 10/32x7/8 Phillips pan-head screws.
Mount the throttle position sensor to the sensor bracket as shown on the opposing page. Gently tighten the screws
gently so that throttle position sensor can be rotated on the bracket.
Rotate throttle position sensor on the sensor bracket fully counterclockwise. The plug side of the throttle position
sensor should be vertical. Tighten throttle position sensor screws.
