3.4.1.11 Connect the AccuLink TPS to the Harness
Snap the TPS plug into theAccuLink TPS(see page 27). The plug has a rubber gasket that fits tightly.
Be sure to push the plug fully into the socket by squeezing the plug and the sensor together so you don't
bend the sensor bracket.
This may require two hands.
If you can see the green gasket (first photo), it is not fully connected. It should be fully compressed
(second photo).

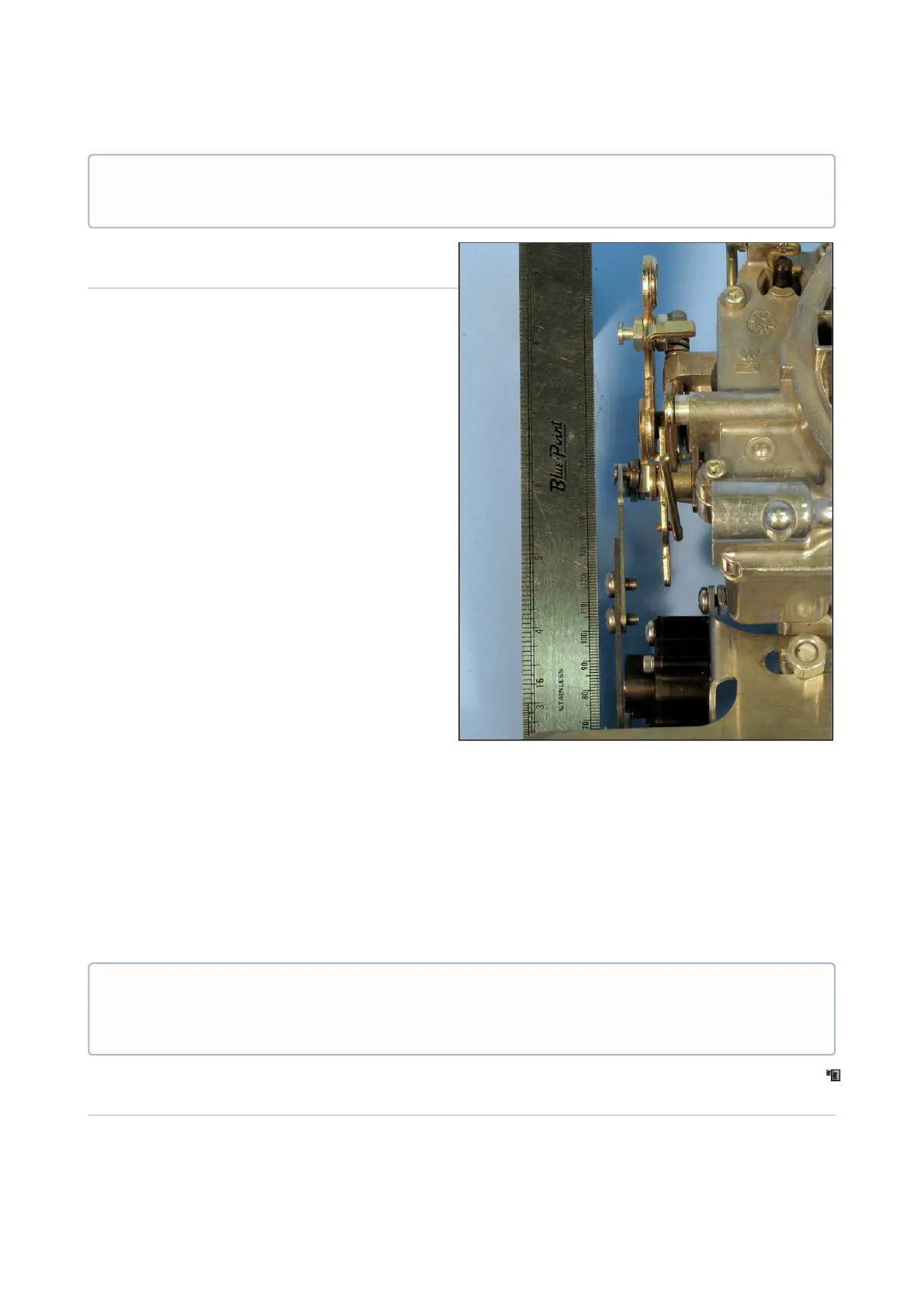

This photo shows an incorrect install: the TPS rotation is not aligned with the linkage, and neither are the
arms.
Your system may have been shipped with an extension cable to connect the AccuLink TPS to the Controller
if it's mounted far from the engine. If necessary, route the extension cable between the COMPUSHIFT II
Controller and the TPS.
