7.5.14 Connecting the TPS

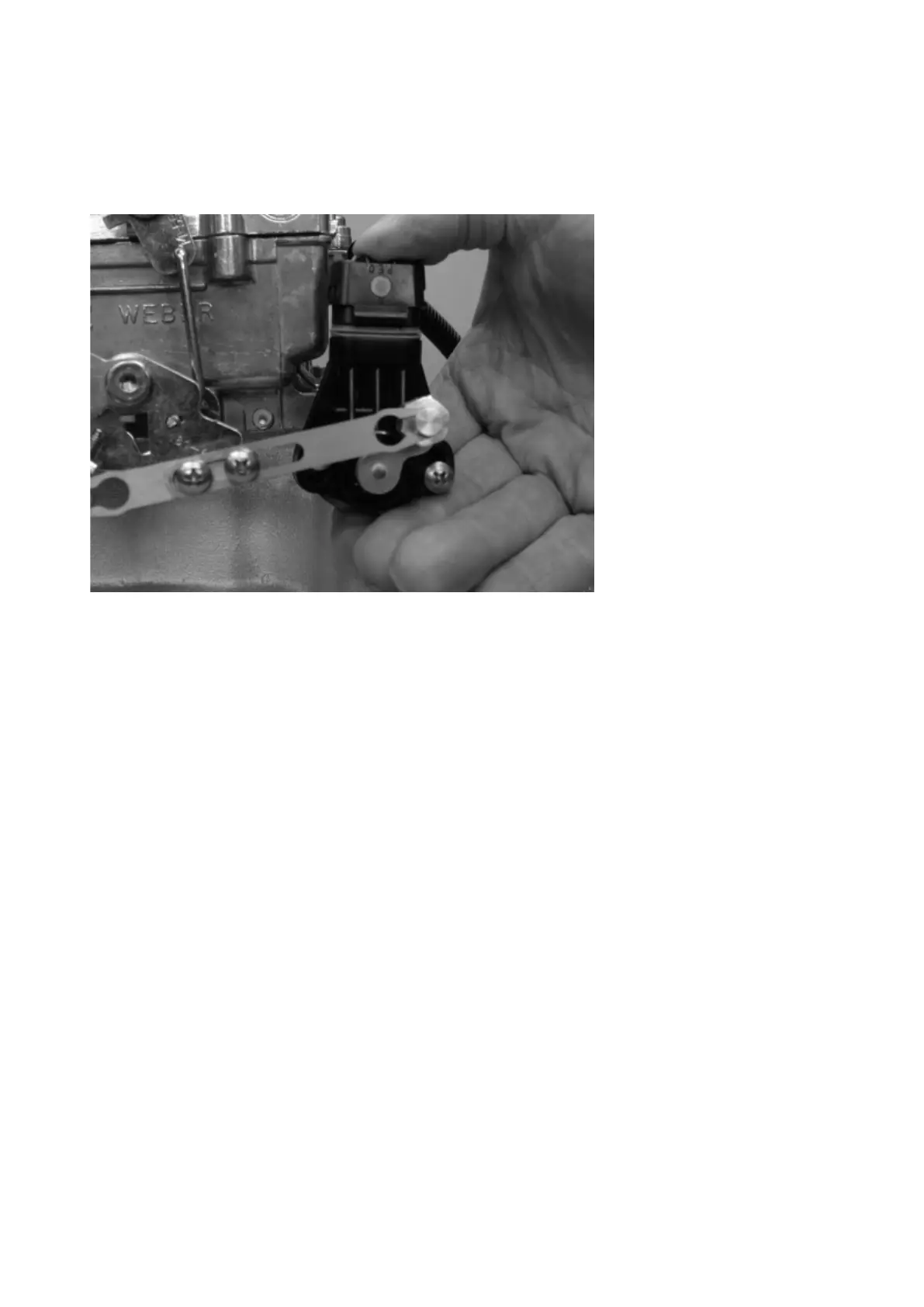

Install throttle position sensor plug into throttle position sensor. The plug has a rubber gasket that is tight fitting. Be
sure to push the plug into the socket by squeezing the plug and the sensor together as shown so as not to bend the
sensor bracket. This may require two hands.
Your system may have shipped with an extension cable for the throttle position sensor. If necessary, install the
extension cable between the controller and the sensor.
