User Manual of Digital Video Recorder
156
The time synchronization interval can be set from 1 to 10080min, and the default value is 60min. If the device is
connected to a public network, you should use a NTP server that has a time synchronization function, such as the
server at the National Time Center (IP Address: 210.72.145.44). If the device is setup in a more customized
network, NTP software can be used to establish a NTP server used for time synchronization.
9.2.4 Configuring Email Settings
Purpose:
The system can be configured to send an Email notification to all designated users if an alarm event is detected, a
motion detection event is detected, etc.
Before you start:
The device must be connected to a local area network (LAN) that maintains an SMTP mail server. The network
must also be connected to either an intranet or the Internet depending on the location of the email accounts to
which you want to send notification.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Set the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the Preferred DNS Server in the Network
Settings interface.

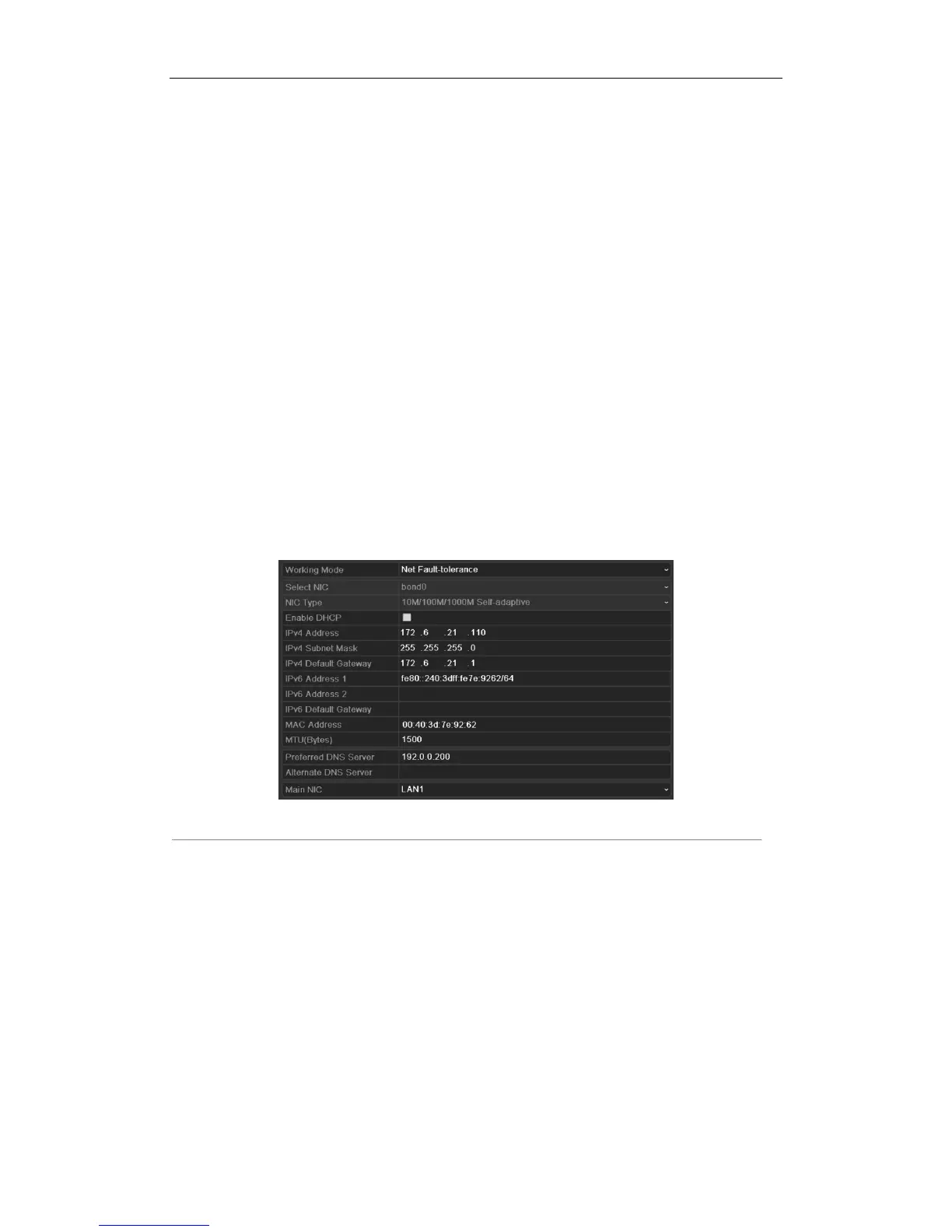

Figure 9. 16 Network Settings Interface
3. Click Apply to save the settings.
4. Select the Email tab to enter the Email Settings interface.
5. Configure the following Email settings:
Enable Server Authentication (optional): If your mail server requires authentication, check this
checkbox to use authentication to log in to this server and enter the login User Name and Password.
User Name: The user name of sender’s account registered on the SMTP server.
Password: The password of sender’s account registered on the SMTP server.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL (optional): Check the checkbox to enable SSL if required by the SMTP server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
To Next Page
