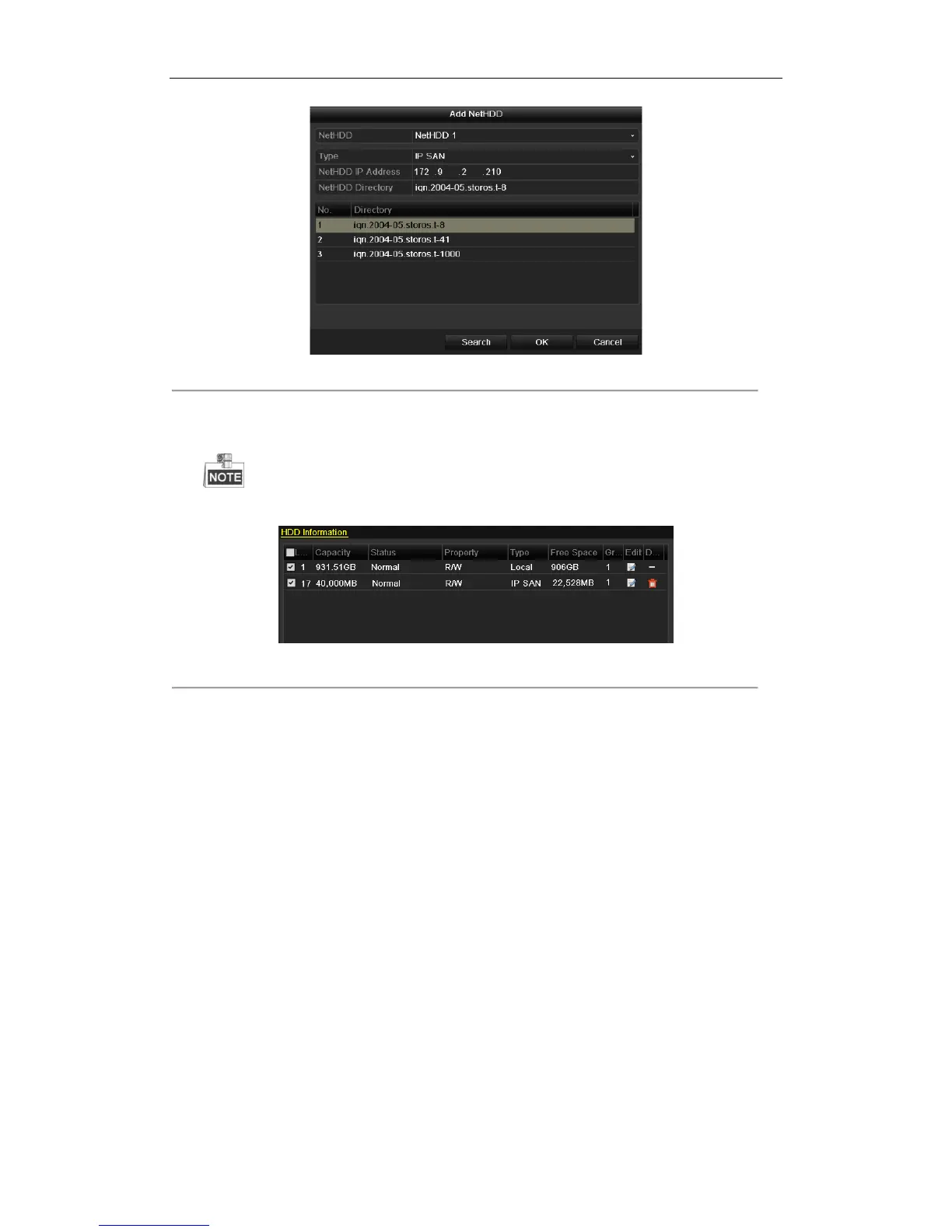

User Manual of Digital V
ideo Recorder
189
Figure 11. 6
Add I
P SAN Disk
6.
After having successfully added the NAS or IP SAN disk, return to the HDD Information me
nu. The added
NetHDD will be displayed in the list.
If
the added NetHDD is uninitialized, please select it and click
Init
for initialization.
Figure 11. 7
I
nitialize Added NetHDD
189
191
Table of Contents
Default Chapter
1
Digital Video Recorder
1
User Manual
1
Trademarks and Registered Trademarks
5
Preventive and Cautionary Tips
6
Product Key Features
7
Table of Contents
11
Chapter 1 Introduction
16
Front Panel
17
IR Remote Control Operations
21
USB Mouse Operation
24
Input Method Description
25
Rear Panel
26
Starting up and Shutting down the Device
29
Chapter 2 Getting Started
31
Using the Wizard for Basic Configuration
32
Adding and Connecting the IP Cameras
36
Adding the IP Cameras
36
Configuring the Connected IP Cameras
40
Chapter 3 Live View
43
Introduction of Live View
44
Operations in Live View Mode
45
Front Panel Operation
45
Using the Mouse in Live View
46
Using an Auxiliary Monitor
47
Quick Setting Toolbar in Live View Mode
47
Adjusting Live View Settings
51
Channel-Zero Encoding
53
Manual Video Quality Diagnostics
54
User Logout
55
Chapter 4 PTZ Control
56
Configuring PTZ Settings
57
Setting PTZ Presets, Patrols & Patterns
59
Customizing Presets
59
Calling Presets
60
Customizing Patrols
60
Calling Patrols
61
Customizing Patterns
61
Calling Patterns
62
Customizing Linear Scan
62
Calling Linear Scan
63
One-Touch Park
63
PTZ Control Panel
64
Chapter 5 Record and Capture Settings
66
Configuring Encoding Parameters
67
Configuring Record/Capture Schedule
71
Configuring Motion Detection Recording and Capture
74
Configuring Alarm Triggered Recording and Capture
76
Configuring VCA Recording and Capture
78
Configuring Manual Recording and Continuous Capture
80
Configuring Holiday Recording and Capture
82
Configuring Redundant Recording and Capture
84
Configuring HDD Group for Recording and Capture
86
Files Protection
88
Locking the Record Files
88
Setting HDD Property to Read-Only
90
Chapter 6 Playback
92
Playing Back Record Files
93
Playing Back by Time
93
Playing Back by Event
96
Playing Back by Tag
98
Playing Back by Smart Search
100
Playing Back by Searching System Log
102
Playing Back External Files
104
Playing Back Frame Extracting Record
105
Auxiliary Functions of Playback
107
Playing Back Frame by Frame
107
Digital Zoom
107
Reverse Playback of Multi-Channel
108
Picture Playback
110
Chapter 7 Backup
112
Backing up Record Files
113
Quick Export
113
Backing up by Normal Video Search
114
Backing up by Event Search
116
Backing up Video Clips
119
Backing up Pictures
122
Managing Backup Devices
125
Hot Spare Backup
127
Setting the Hot Spare Device
127
Setting the Working Device
128
Hot Spare Management
129
Chapter 8 Alarm Settings
131
Setting Motion Detection
132
Setting Sensor Alarm
134
Detecting Video Loss
136
Detecting Video Tampering
138
Detecting VCA Alarm
140
Handling Exceptions
144
Setting Alarm Linkage Actions
145
Triggering or Clearing Alarm Output Manually
148
Chapter 9 Network Settings
149
Configuring General Settings
150
Configuring Advanced Settings
153
Configuring Pppoe Settings
153
Configuring DDNS Settings
153
Configuring NTP Server Settings
156
Configuring Email Settings
157
Configuring FTP Server Settings
158
Configuring SNMP Settings
159
Configuring NAT Settings
160
Configuring more Network Settings
162
Configuring HTTPS Settings
164
Virtual Host Settings
165
Telnet Settings
166
Checking Network Traffic
167
Network Detection
168
Testing Network Delay and Packet Loss
168
Exporting Network Packet
168
Checking Network Status
169
Checking Network Statistics
170
Chapter 10 RAID Configuration
172
Configuring Array and Virtual Disk
173
One-Touch Configuration
174
Manually Creating Array and Virtual Disk
175
Rebuilding Array
180
Automatically Rebuilding Array
180
Manually Rebuilding Array
181
Repairing Virtual Disk
182
Deleting Array / Virtual Disk
183
Deleting the Virtual Disk
183
Deleting the Array
183
Upgrading Firmware
184
Chapter 11 HDD Management
186
Initializing Hdds
187
Managing Network HDD
189
Managing Esata
191
Managing HDD Group
192
Setting HDD Groups
192
Setting HDD Property
193
Configuring Quota Mode
194
Configuring Frame Extracting Mode
196
Configuring Disk Clone
198
Checking HDD Status
200
Checking S.M.A.R.T. Information
201
Detecting Bad Sector
202
Configuring HDD Error Alarms
203
Chapter 12 Camera Settings
204
Configuring OSD Settings
205
Configuring Privacy Mask
206
Configuring Video Parameters
206
Chapter 13 Device Management and Maintenance
209
Viewing System Information
210
Searching & Exporting Log Files
211
Importing/Exporting Configuration Files
213
Upgrading System
214
Upgrading by Local Backup Device
214
Upgrading by FTP
214
Restoring Default Settings
215
Chapter 14 Others
216
Configuring RS-232 Serial Port
217
Configuring General Settings
218
Configuring DST Settings
220
Configuring more Settings
221
Managing User Accounts
222
Logging out / Shutting down / Rebooting Device
225
Chapter 15 Appendix
226
Glossary
227
Troubleshooting
228
Summary of Changes
233
List of Compatible IP Cameras
235
List of Hikvision IP Cameras
235
List of Third-Party IP Cameras
239
