User Manual of Digital Video Recorder
76

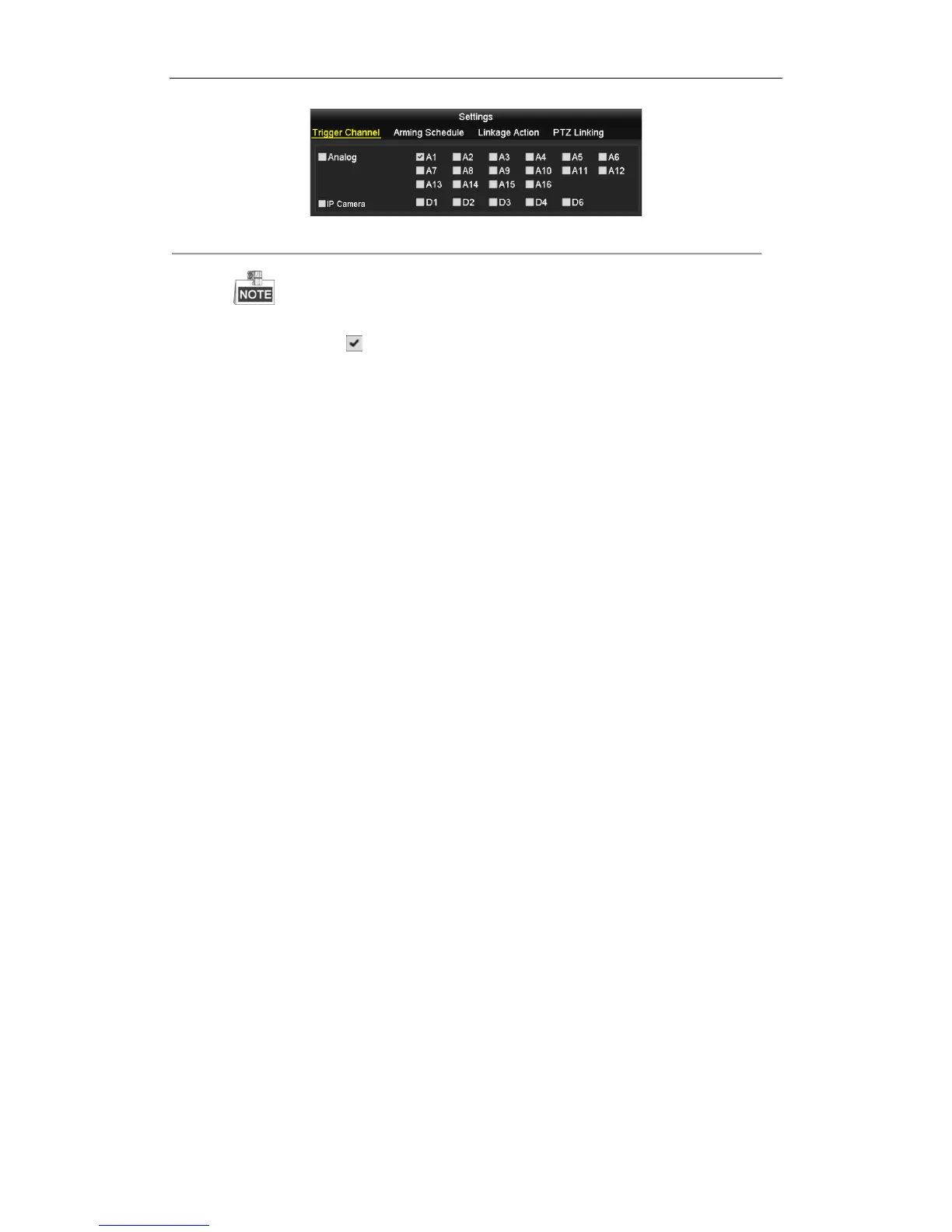

Figure 5. 18 Alarm Input Settings
IP Camera is supported by HDVR series only.
5) Check the checkbox to choose the alarm triggered recording/capture channel.
6) Click Apply to save settings.
7) Click OK to back to the upper level menu.
8) Click Apply in the Alarm Input interface to save the settings.
9) Repeat the above steps to configure parameters of other alarm inputs. Optionally, you can click Copy
to copy the current settings to other alarm inputs.
3. Enter Record/Capture Schedule settings interface (Menu> Record> Schedule>Record/Capture Schedule),
and then set Alarm as the record type. For details, see step 2 in Chapter 5.2 Configuring Record/Capture
Schedule.
