HIKVISION DS-PEA4H-10 - Rear Panel

Panic Alarm Master Station • User Manual
2

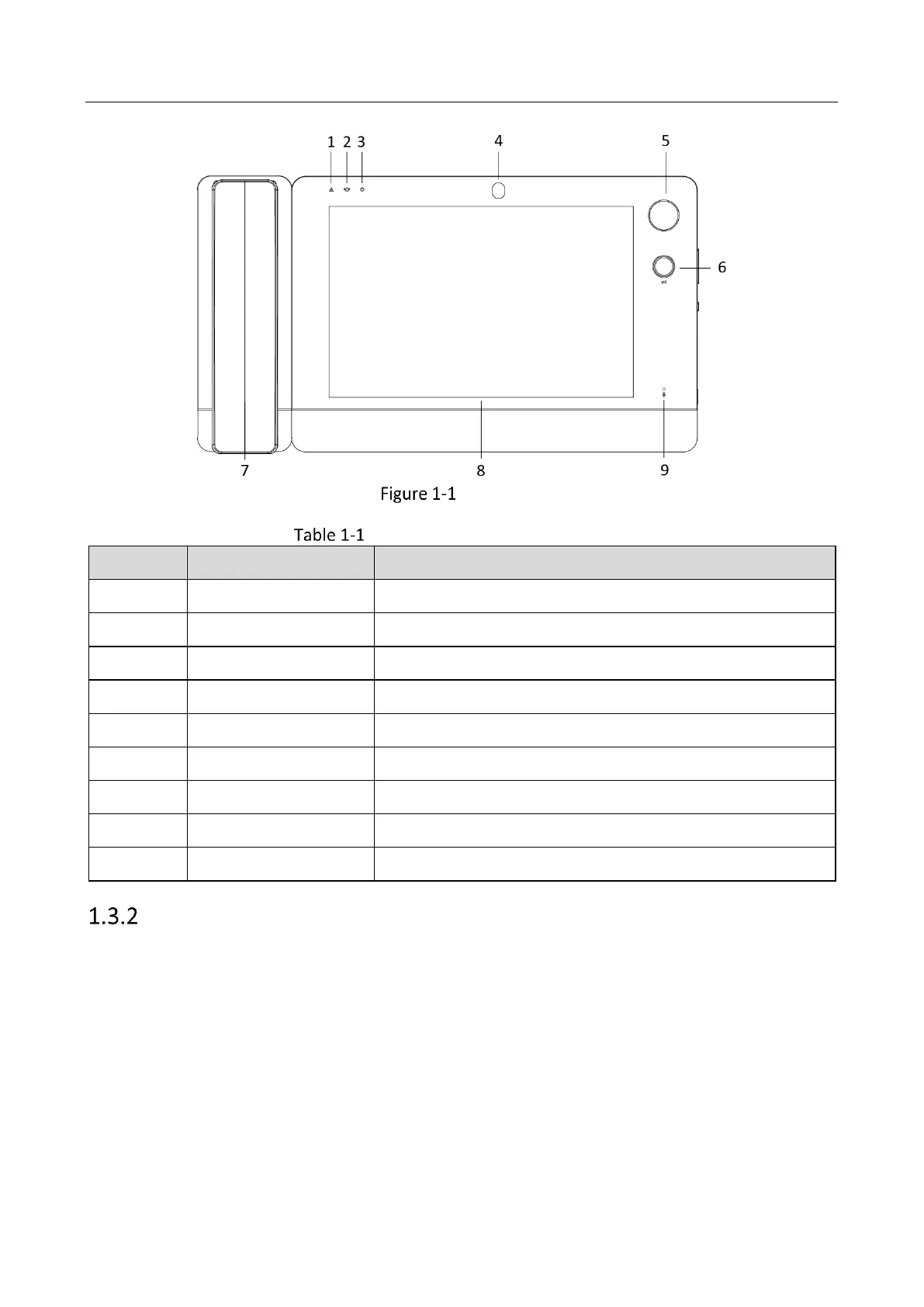

Front Panel
Front Panel Component Description
No.
Component
Description
1
Exception indicator
Flashing yellow when exception occurs.
2
Information indicator
Flashing green when receiving alarm information.
3
Power indicator
Solid blue when the master station is powered on.
4
Camera
Rotatable 2 MP high definition camera.
5
Mic support interface
Connect to mic support.
6
Broadcast button
Start/End broadcast in the preset group.
7
Handset
Answer calls.
8
Screen
10.1-inch colorful TFT LCD, 1280 × 800.
9
Microphone
Audio input.
Rear Panel
The rear panel of master station is shown below.
