HIKVISION DS-PEA4H-10 User Manual

Panic Alarm Master Station • User Manual
4
Rear Panel Component Description
No.
Component
Description
1
Camera angle adjustment wheel
Adjust the angle of 2MP HD camera.
2
Built-in speaker
Audio output.
3
Power interface
Connect to 12 VDC power supply.
4
Network interface
Connect to wired network.
5
VGA interface
Connect to display.
6
HDMI interface
Connect to display.
7
Audio output interface
Connect to active speaker.
8
Audio input interface
Connect to microphone.
9
RS-485 interface
Reserved.
10
Alarm output interface
Connect to alarm output devices, such as sounder, siren.
11
Alarm input interface
Connect to IO input signal, such as detectors.

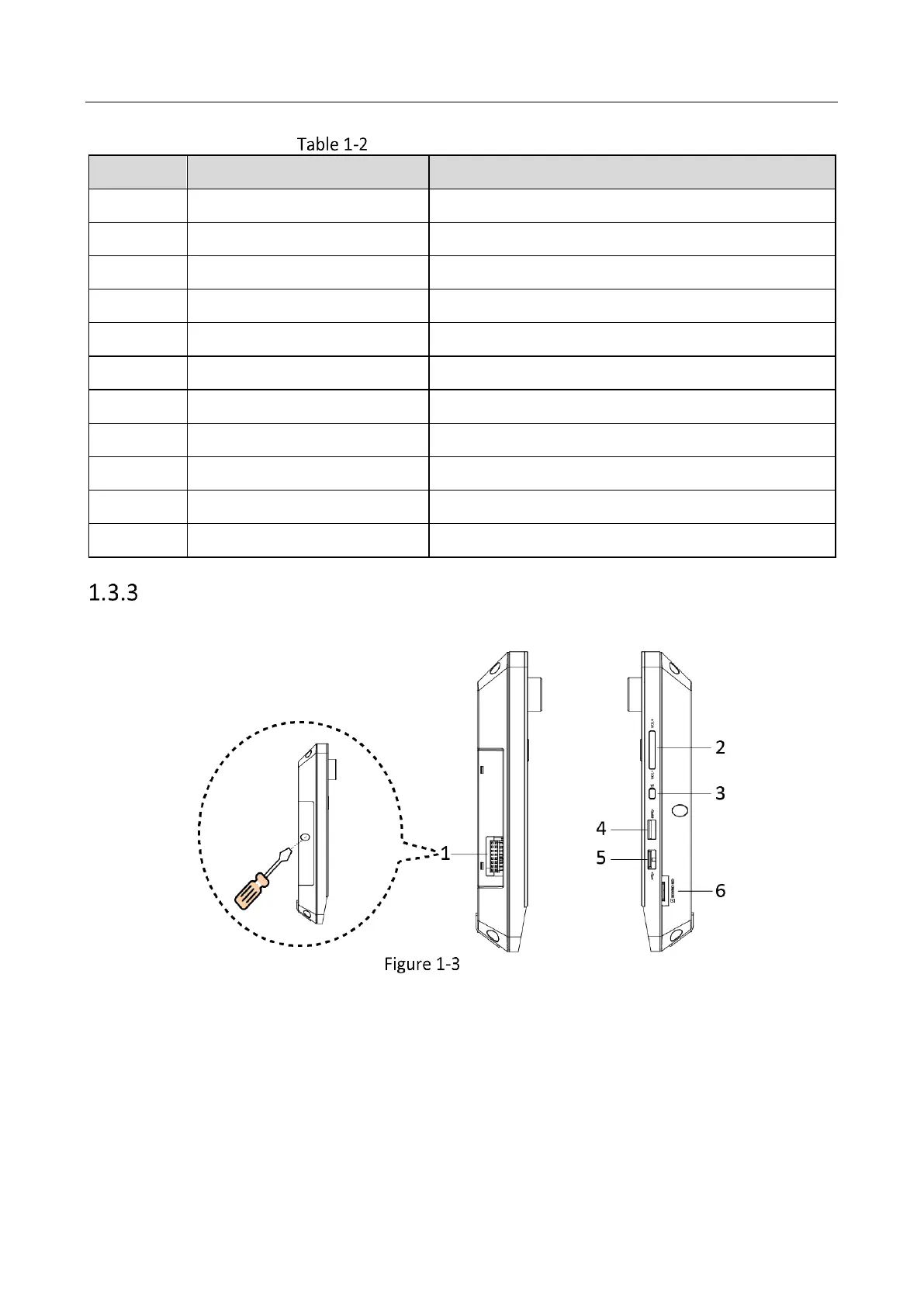

Side Panel
The side panel of master station is shown below.
Side Panel

HIKVISION DS-PEA4H-10 Specifications

General

Brand	HIKVISION
Model	DS-PEA4H-10
Category	Intercom System
Language	English
