A12
Measurement Probe (Option)

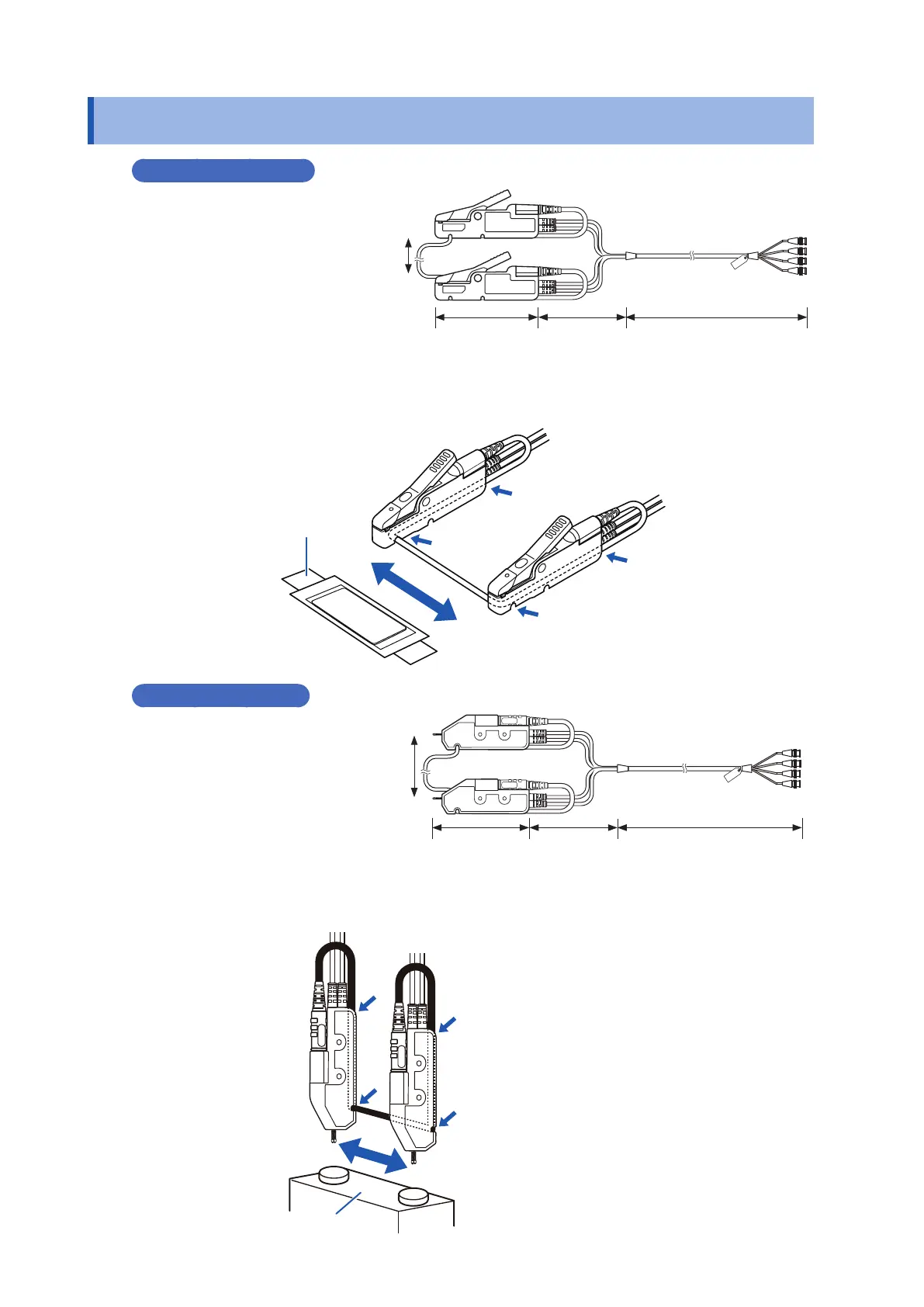

Appx. 8 Measurement Probe (Option)
L2002 Clip Type Probe
Total length: Approx.
1500 mm
100 mm 400 mm 1000 mm
Maximum
500 mm
1. Arrange the probes so that the distance between the SENSE of the probes is the same as the actual
object to be measured with the SENSE of the probes (both red and black) facing inwards.
2. Adjust the position of the probes such that the return cable between the probes does not sag, and x by
pushing the return cable into the grooves of the probes.
Measuring
object
L2003 Pin Type Probe
Total length: Approx.
1490 mm
90 mm 400 mm
Maximum
500 mm
1000 mm
1. Arrange the probes so that the distance between the pin tips of the probe is the same as that between the
terminals of the actual measuring object, with the SENSE sides of the probes (both red and black) facing inwards.
2. Adjust the position of the probes such that the return cable between the probes does not sag, and x by
pushing the return cable into the grooves of the probes.
Measuring object
(The return cable is indicated black
in the illustration.)
To Next Page
