18

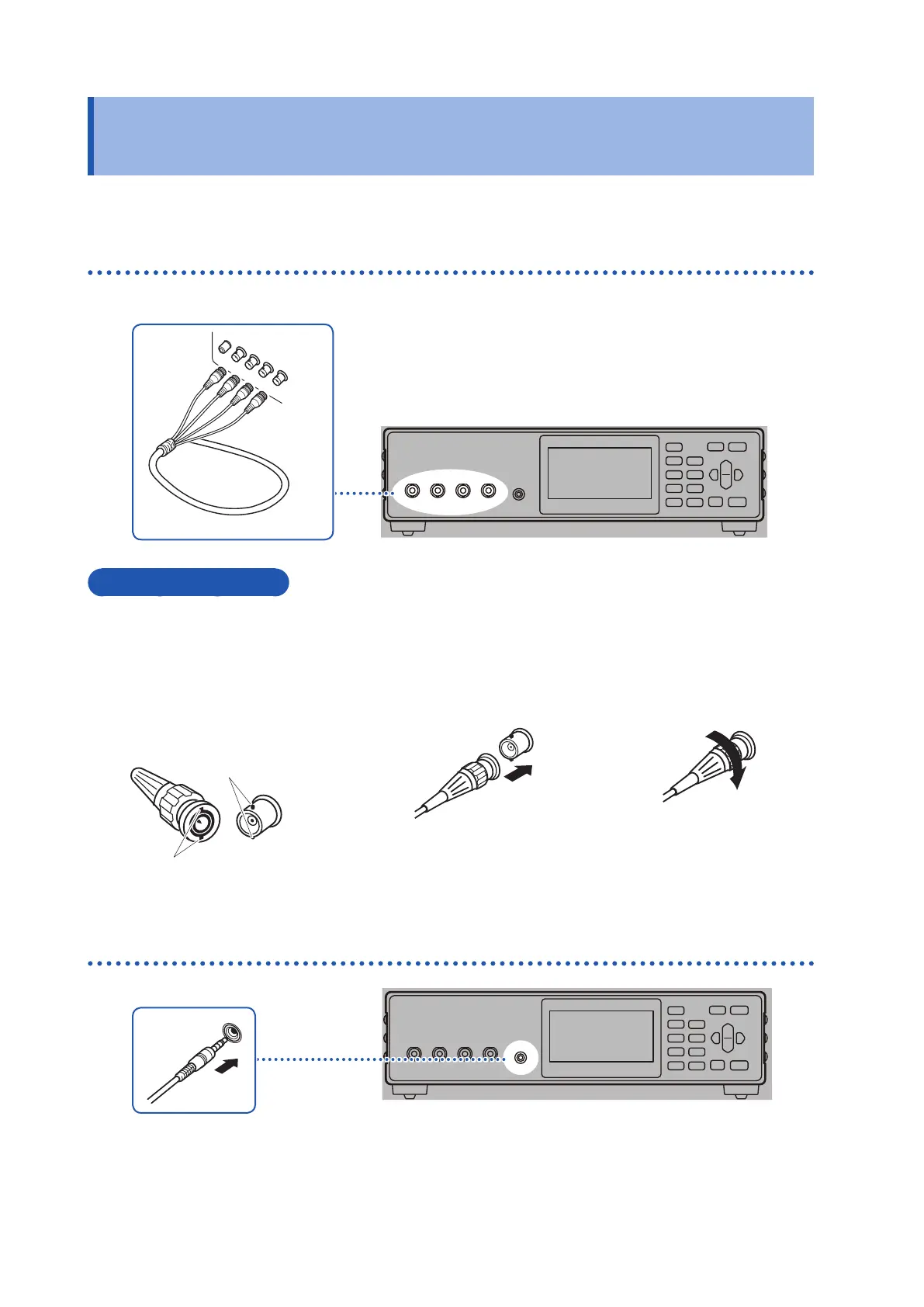

Connecting the Measurement Probe and Temperature Sensor (Optional)
2.2 Connecting the Measurement Probe and
Temperature Sensor (Optional)
The measurement probe and the temperature sensor are optional. (p. A12)
Connect the four-terminal cable to the instrument
Connection method
1
Check the orientation of the groove
in the BNC connector and ensure
that it ts into the connector guide
of the instrument side.
2
Align the groove in the BNC
connector along the connector
guide of the instrument, and
insert the BNC connector into the
instrument connector.
3
Turn the BNC connector to the
right and lock it.
Connector guide of the
instrument’s current
input terminal
BNC connector groove of
measurement probe
Connect the temperature sensor to the instrument
To Next Page
