Setting the Measurement Frequency

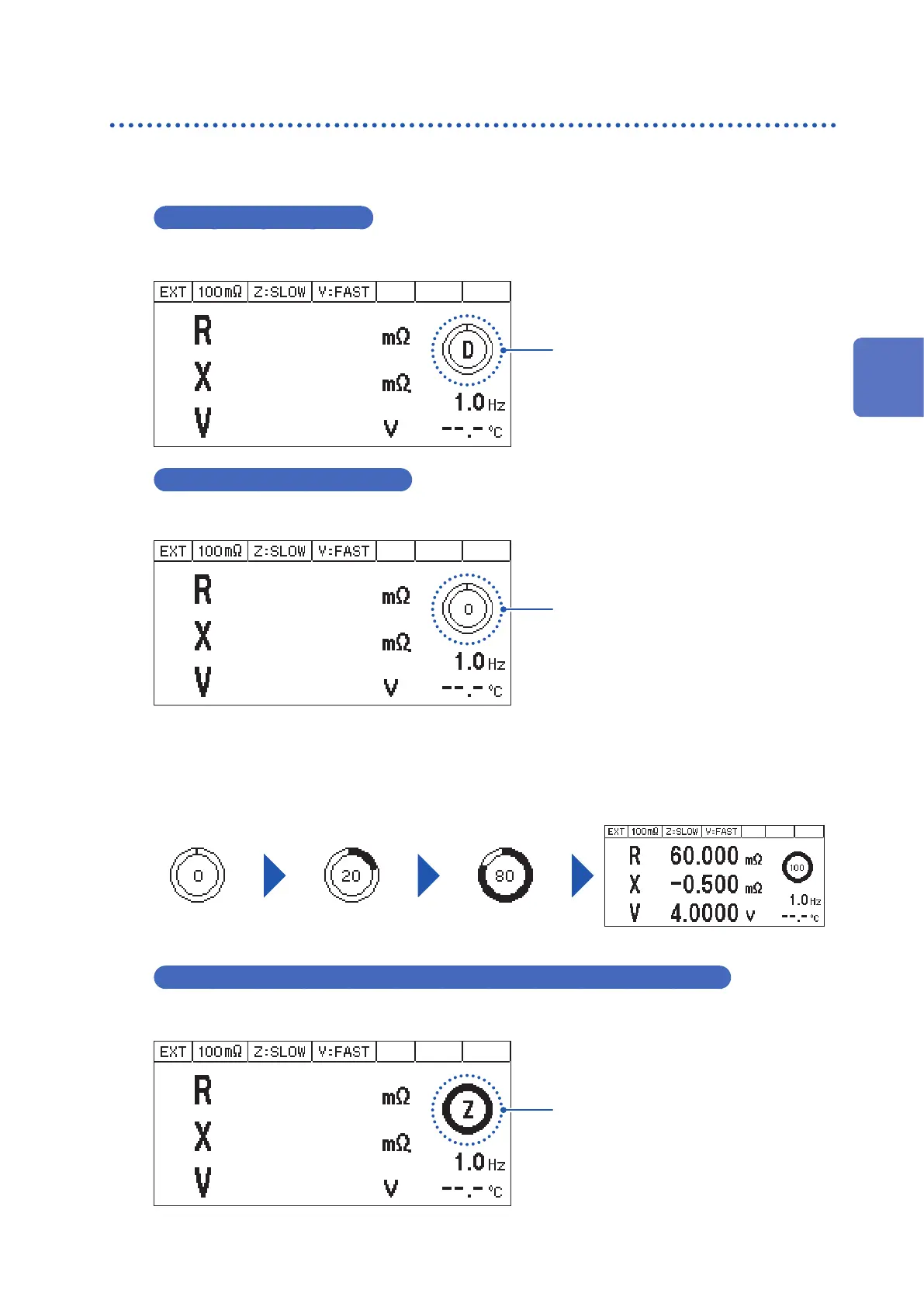

When the measurement time is long (Display of the Progress Bar)
When the impedance measurement time is long (more than approx. 1 second), the progress bar is
displayed on the right side of the measuring screen which is in operation.
During sample delay (p. 38)
[D] is displayed at the center of the progress bar.
Progress bar
([D] is displayed at the center.)
During impedance measurement
Percentage of measurement progress is displayed at the center of the progress bar.
Progress bar
(Progress percentage is displayed at the
center.)
Transition of the progress percentage
Progress
percentage
0%
Progress
percentage
20%
Progress
percentage
80%
Measurement complete (The
progress percentage is 100%.)
The measurement is nished and the
measurement value is displayed.
During the detection of zero cross stop (When zero cross stop is ON) (p. 47)
[Z] is displayed at the center of the progress bar.
Progress bar
([Z] is displayed at the center.)
