Saving the Setting Conditions (Panel Saving Function)

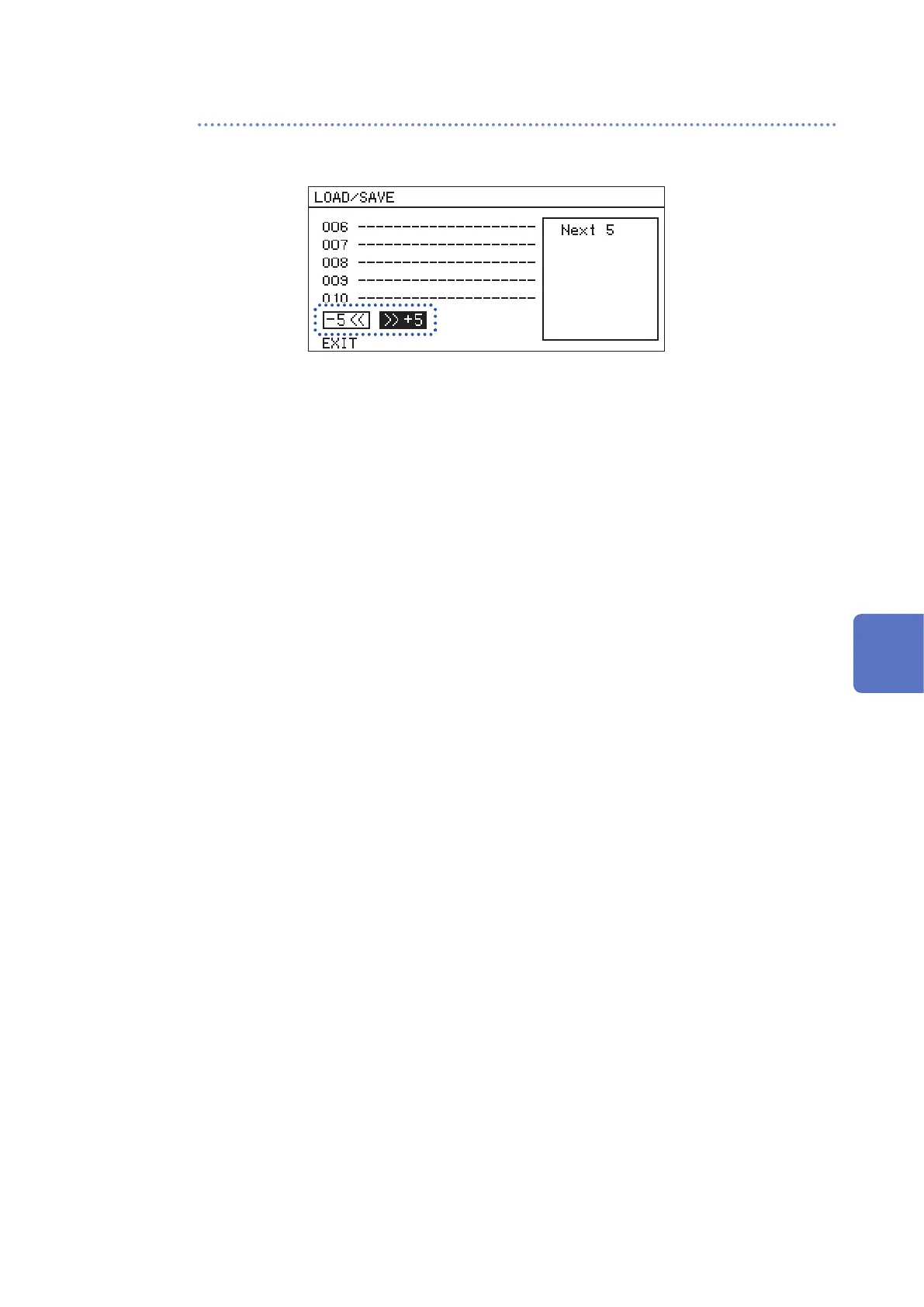

When [+5] is selected, the next 5 panel numbers are displayed. When [-5] is selected, the

previous 5 panel numbers are displayed.

6

(Panel Saving and Loading)
