Timing Chart

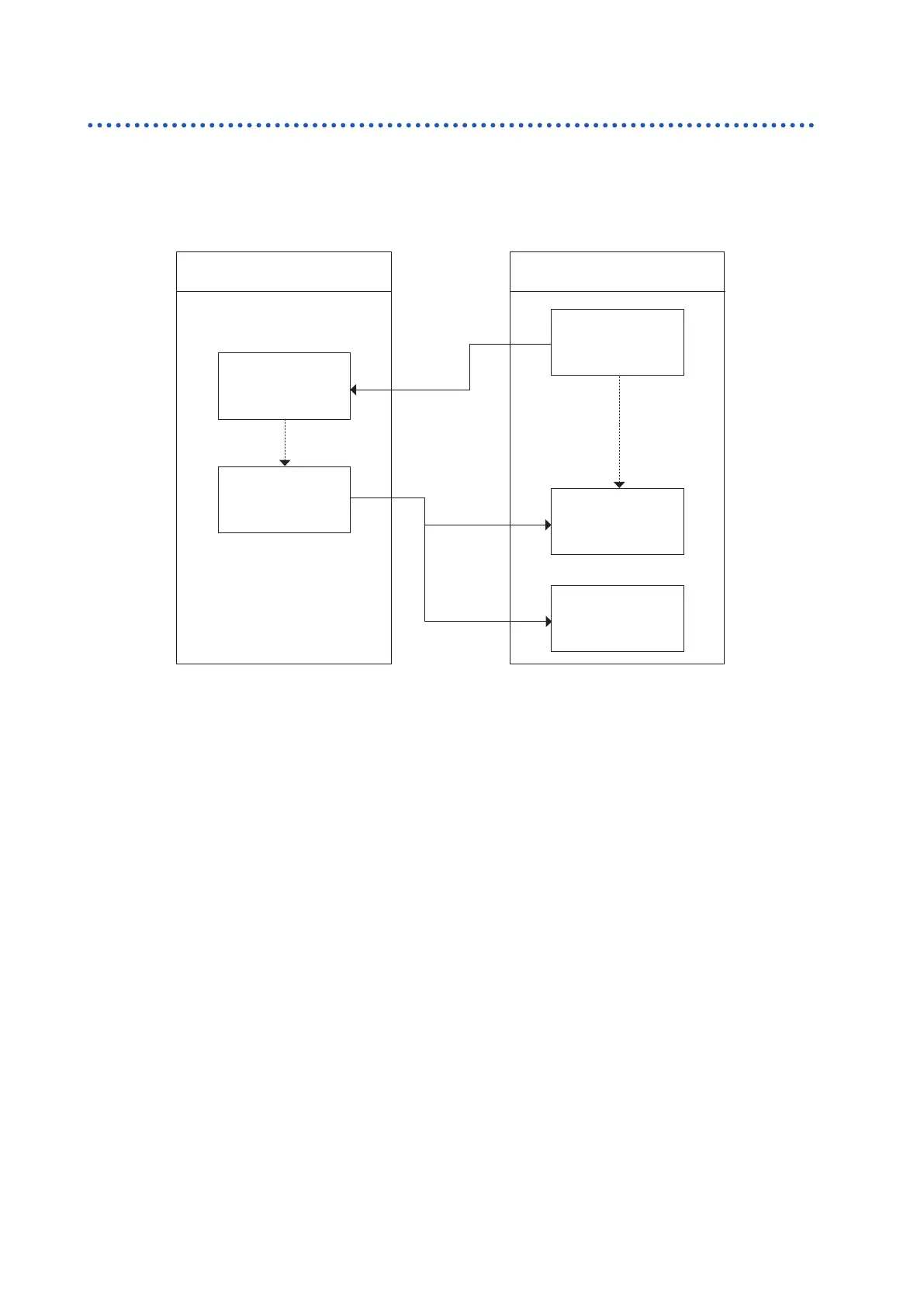

Taking-in ow with the external trigger
With the external trigger, the diagram indicates the ow from the starting of the measurement to the taking-in
of the judgment result or the measured values. The instrument outputs the EOM signal immediately after the
judgment results (HI, IN, LO, PASS, FAIL, ERR) have been determined. When the response of the controller’s
input circuit is delayed, it takes a waiting time from the detection of the EOM signal’s ON status to the taking-in
of the judgment results.
Starting the
measurement
judgment result OFF
Completion of
measurement
Starting the
measurement
End of measurement
reception
Judgment result
acquisition
The instrument Controller
TRIG
Waiting for
EOM
(In the case of
level detection,
waiting for
0.5 ms.)
EOM
HI, IN,
LO, PASS,
FAIL, ERR
During
measurement
