Redundancy
RM Web L3P
Release
4.1
03/08
8.1
Link aggregation
129

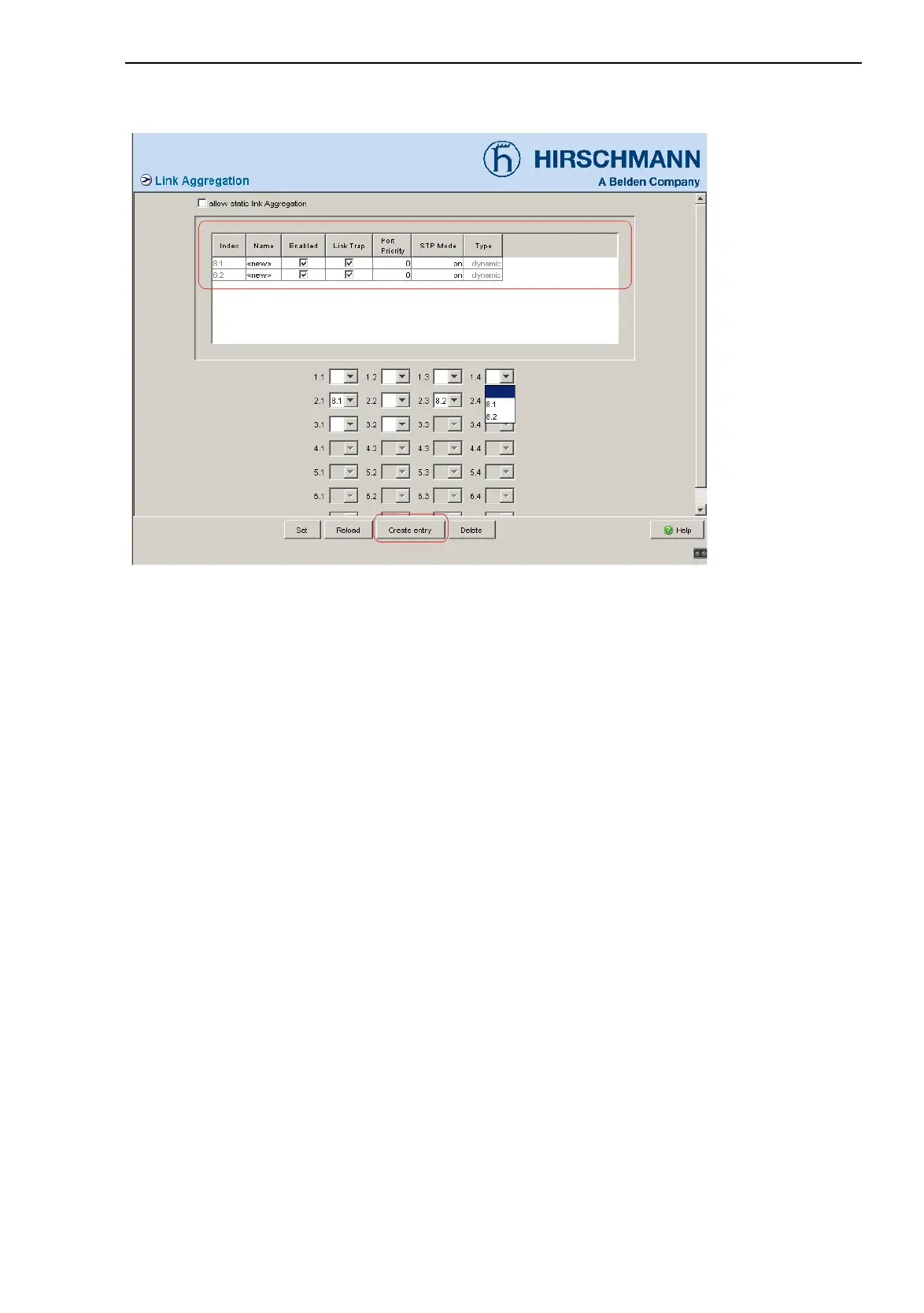

Figure 40: Setting the link aggregation
Select Allow static link aggregation if the partner device does
not support the Link Aggregation Control Protocol (LACP) (e.g. MACH
3000).
Devices that support LACP prevent loops when they are coupled via mul-
tiple connection lines.
Click “Create entry” to set up a new link aggregation connection.
The Index column shows you the name under which the device uses a
link aggregation (a trunk) as a virtual port.
The Name column allows you to give this connection any name you want.
The Enabled column allows you to enable/disable a link aggregation
connection that is set up.
Select Link Trap if you want the device to generate an alarm if all the
connections of the link aggregation are interrupted.
In the “STP Mode” column, you select
on if the link aggregation connection is connected to a Spanning Tree,
off if no Spanning Tree is active.
