Hirschmann Power MICE Reference Manual

Redundancy
RM Web L3P
Release 4.1 03/08
8.2 HIPER-Ring
141
The displays in the “Information” frame mean:
– „“Redundancy guaranteed”: One of the lines affected by the function can
fail, whereby the redundant line will then take over the function of the
failed line.
– „“Configuration failure”: The function is incorrectly configured or there is
an error on ringport link.

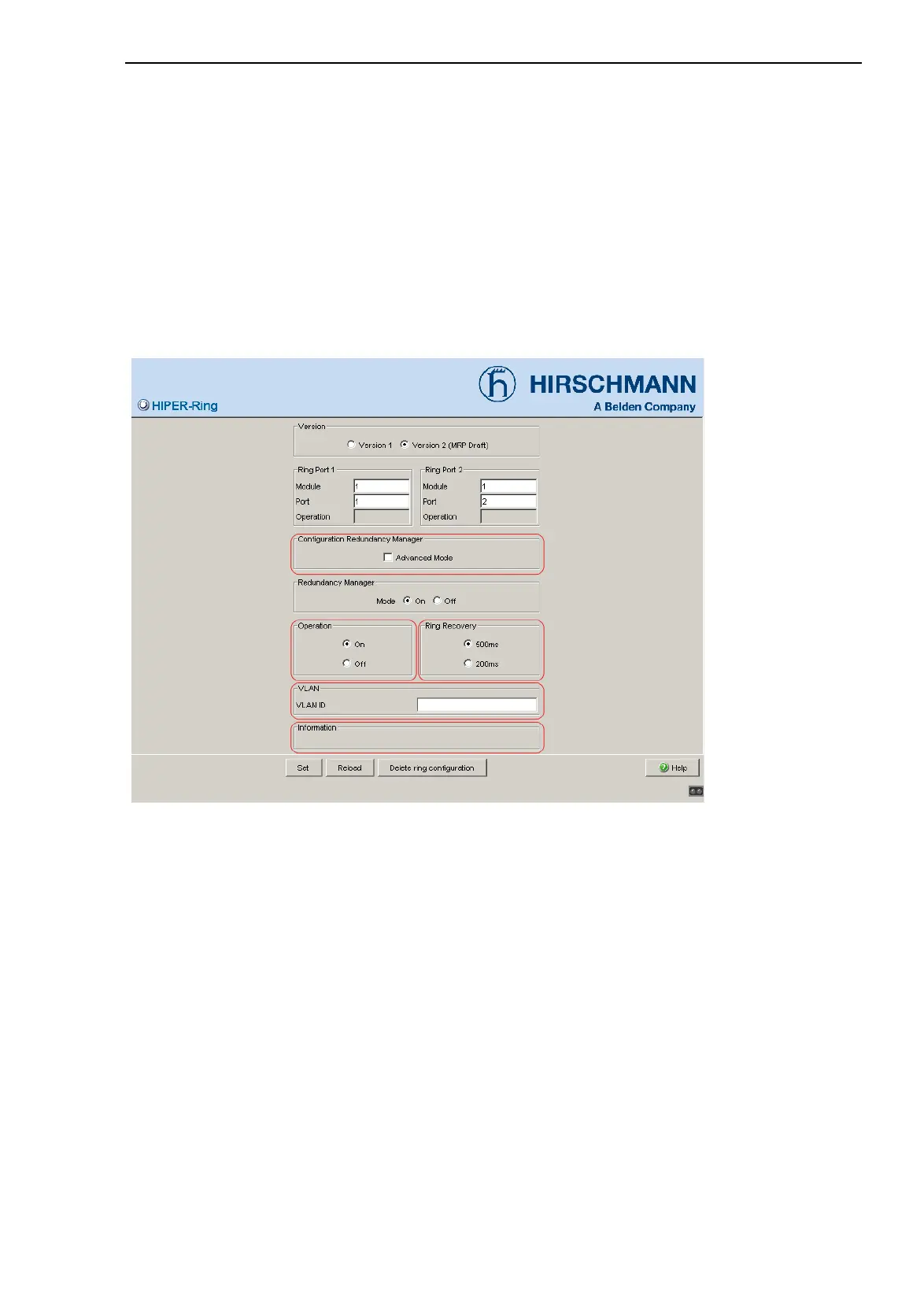

Figure 45: Configuring the Redundancy Manager, selecting operation, selecting ring
recovery and entering VLAN ID. Display: Information.

Hirschmann Power MICE Specifications

General

Brand	Hirschmann
Model	Power MICE
Category	Network Router
Language	English
