8.3 Redundant coupling
155

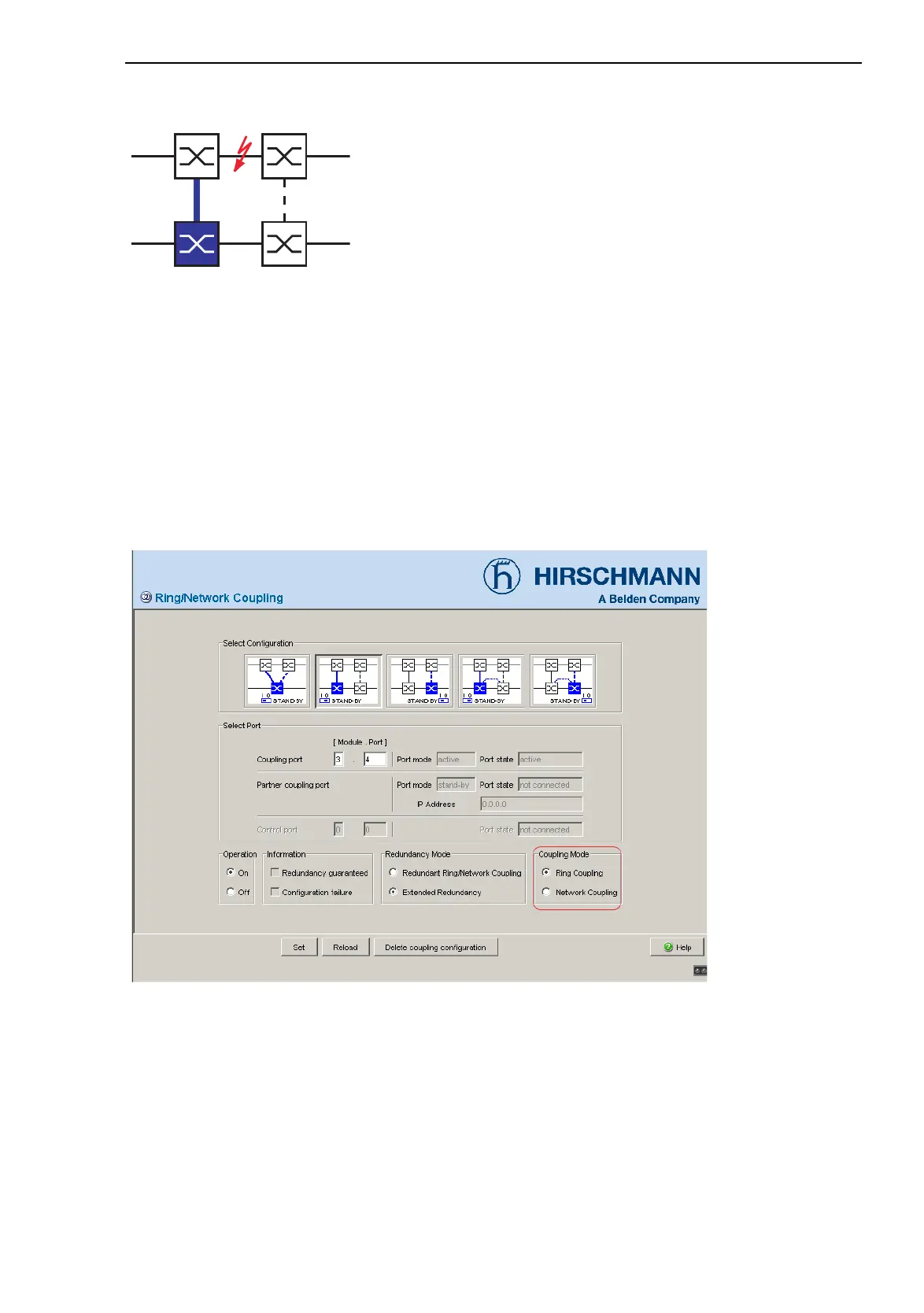

Figure 56: Extended redundancy
Coupling mode
The coupling mode indicates the type of the connected network.
 In the “Coupling Mode” frame, select (see fig. 57)
– “Ring Coupling” or
– “Network Coupling”
Figure 57: Selecting the coupling mode
 Select “Ring coupling” if you are connecting a HIPER-Ring.
 Select “Network Coupling” if you are connecting a line structure.
Delete coupling configuration
