Opening the Web-based Interface
16
RM Web L3P
Release
4.1
03/08

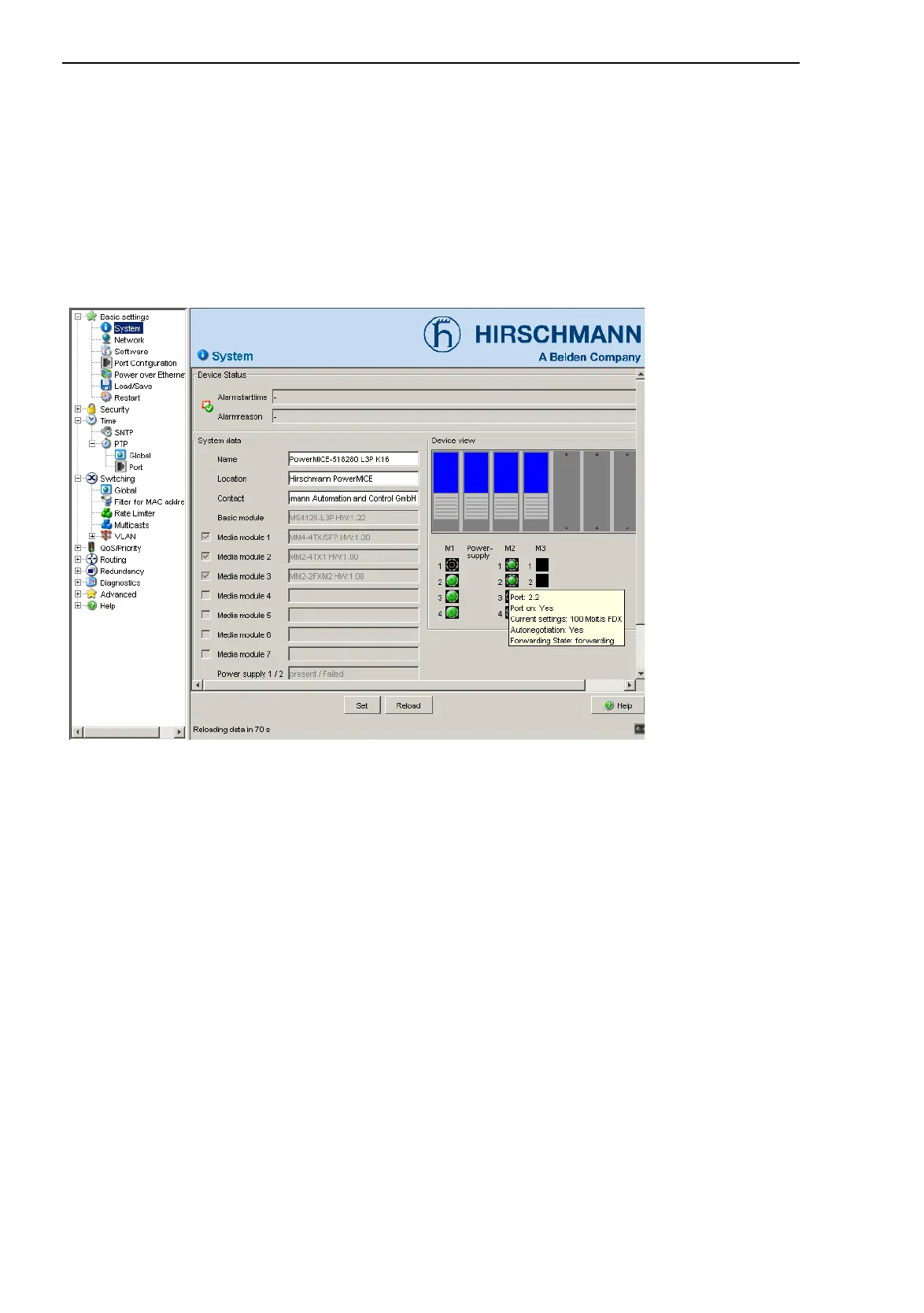

The menu section displays the menu item
s. By placing the mouse pointer in
the menu section and clicking the right mouse button you can use “Back” to
return to a menu item you
have already selected, or
“Forward” to jump to a
menu item you have
already selected.
