8.5 VRRP/HiVRRP
RM Web L3P
Release 4.1 03/08

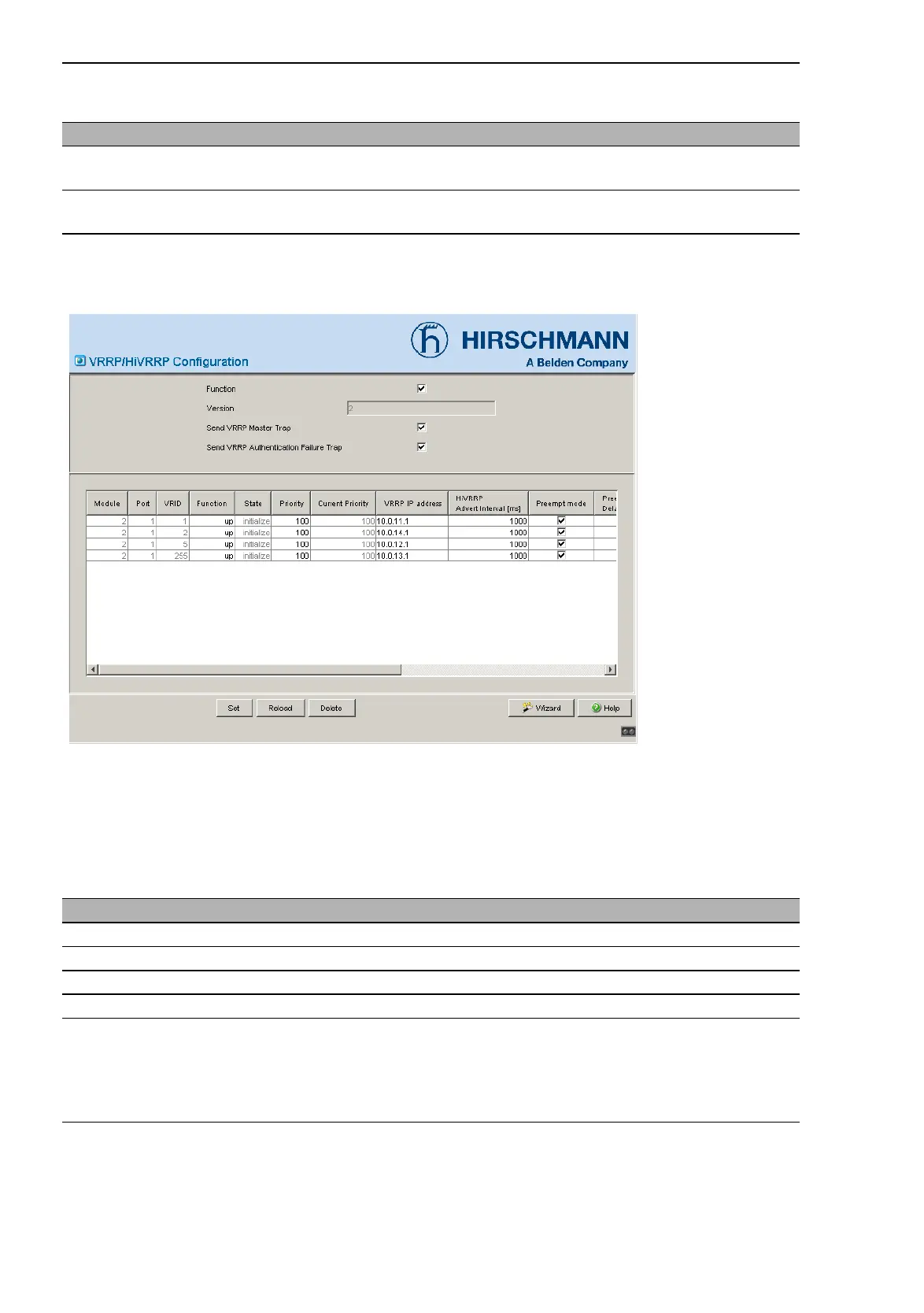

Figure 68: VRRP/HiVRRP configuration dialog
 VRRP instance settings
Send VRRP Master
Trap
As soon as the router takes over the VRRP master function, it sends a
master trap
Send VRRP Authen-
tication Failure Trap
As soon as the router receives a VRRP message with an incorrect
authentication, it sends a VRRP authentication error trap.
Parameter Meaning
Module Module of the device
Port Port to which this entry applies
VRID Virtual router ID (value 1-255)
Operation Switch the VRRP instances on and off
Status VRRP state
– “initialize”: VRRP is in the initialization phase. No master has been
named yet.
– “backup”: The Switch sees the possibility of becoming master.
– “master”: The Switch is master.
Table 36: VRRP configuration table
