5. SPECIFICATION
5-22
(2) RAS external control interface (optional)
NOTE: Serial port and External control I/O port

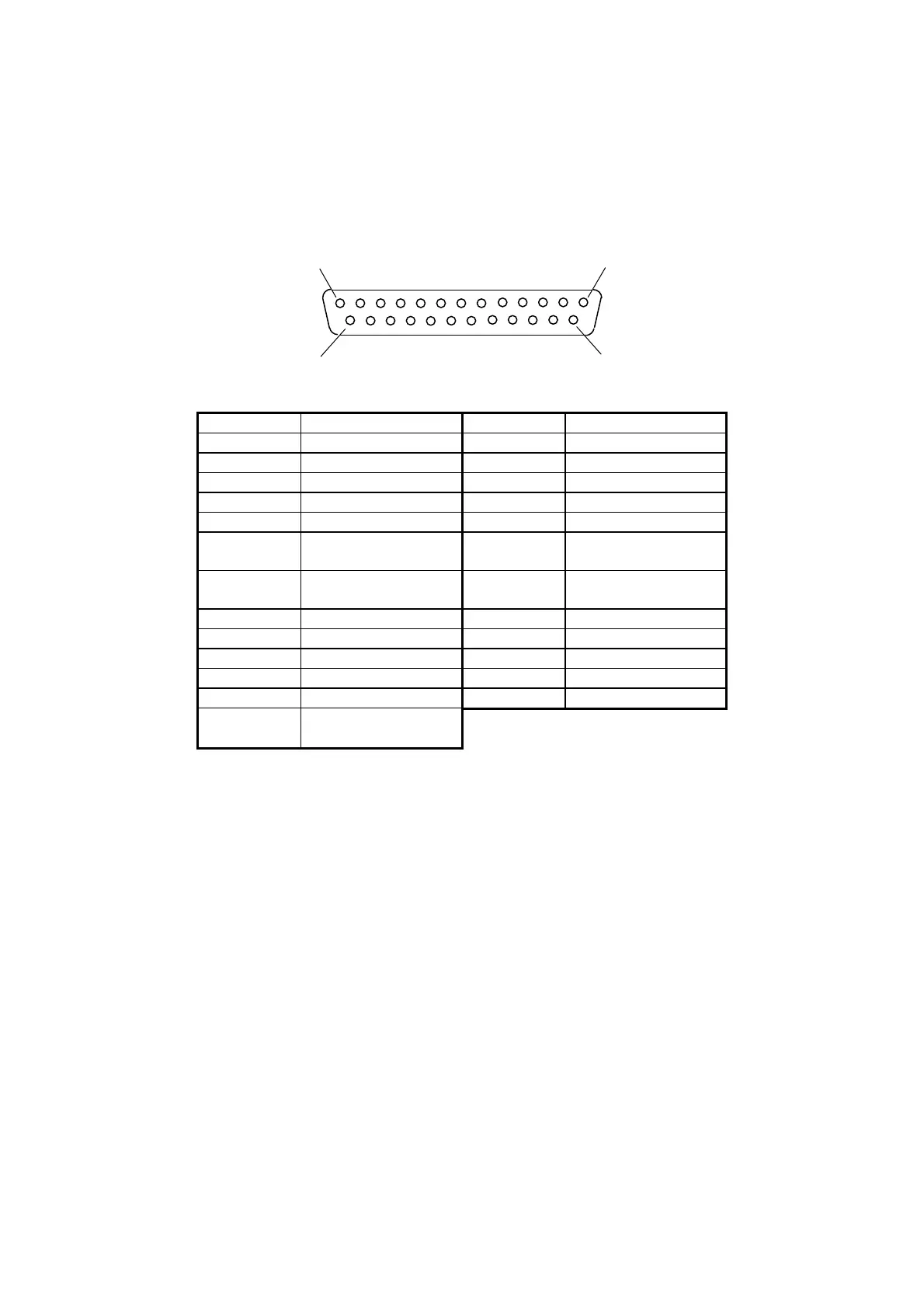

● External control I/O port (male connector, inch screws)
Pin No.
Signal name
Pin No.
Signal name
1
MCALL_1
14
MCALL_2
2
GENDO0_1
15
GENDO0_2
3
GENDO1_1
16
GENDO1_2
4
WDTTO_1
17
WDTTO_2
5
PSDOWN_1
18
PSDOWN_2
6
GENDI0_1
19
RMTPWRON_2
/GENDI2_2
7
RMTSTDN_1
/GENDI_1
20
RMTSTDN_2
/GENDI_2
8
RMTRESET_2
21
GENDI1_2
9
CPUSTOP_2
22
GENDI0_2
10
GENDO2_2
23
CPUSTOP_1
11
RMTRESET_1
24
GENDO2_1
12
GENDI1_1
25
GND
13
RMTPWRON_1
/GENDI2_1
1
14
13
25
