4.1.2 Operation Windows
The section explains operation windows used to control the model TM3000 Tabletop
Microscope.
On the operation window, a button is provided for each function so that buttons can be
switched and adjusted by clicking them.

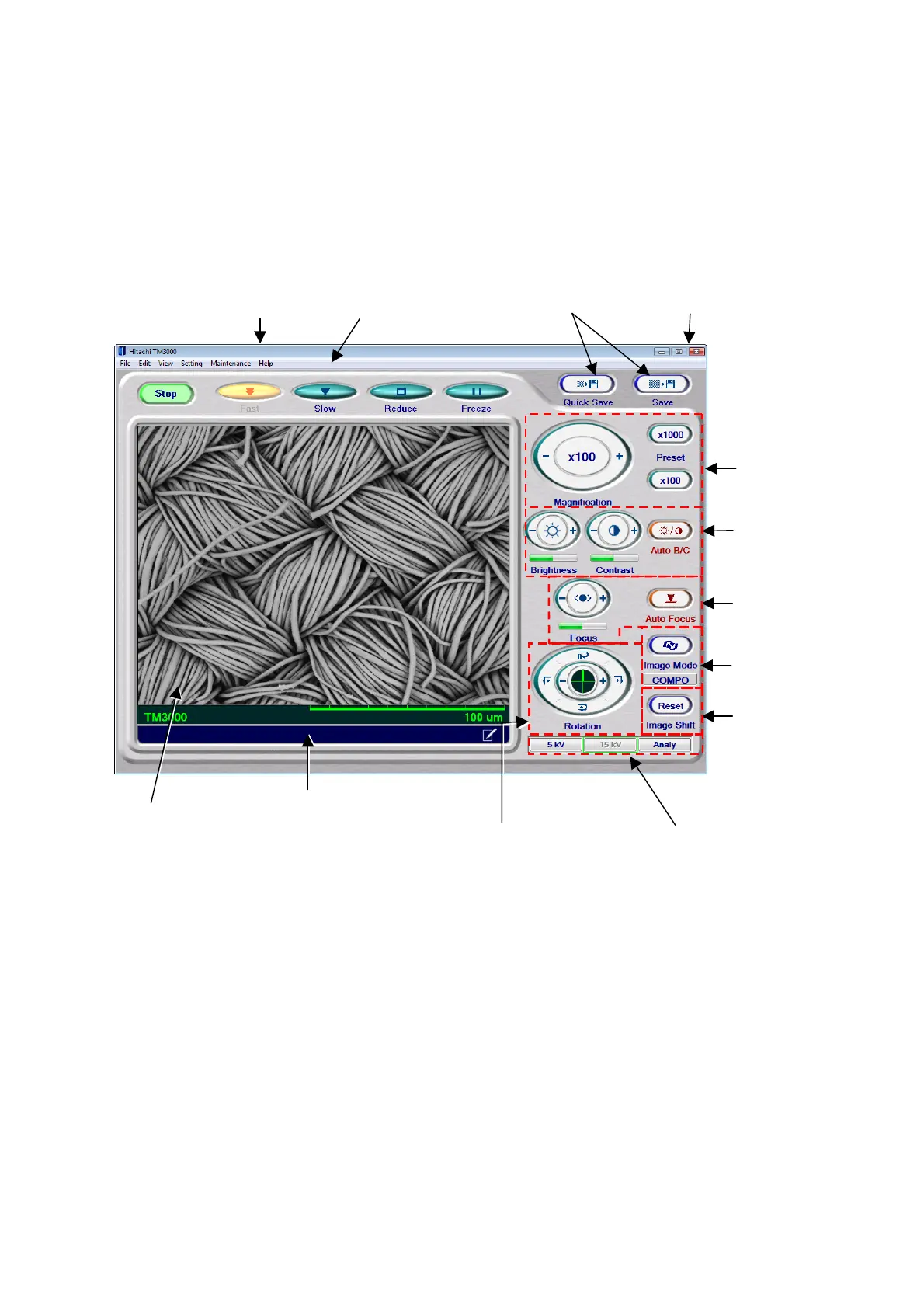

Figure 4.1.2 Operation Window
1. Title bar Displays the name of an application.
2. Menu bar Provides a classification of the functions of the application.
Select a given function to execute it.
3. Image save button A button to save observation images in a file.
4. Title bar button Closes or minimizes the window.
Title bar button
Image save button
Observation conditions settings button
Information/comment area
Image observation area
Title bar
Menu bar
Rotation button
Image shift reset
button
Image Mode
button
Focus settings
button
Brightness/contrast
settings button
Observation
magnification
settin
s button
