4.3.23 Image Shift Reset Button

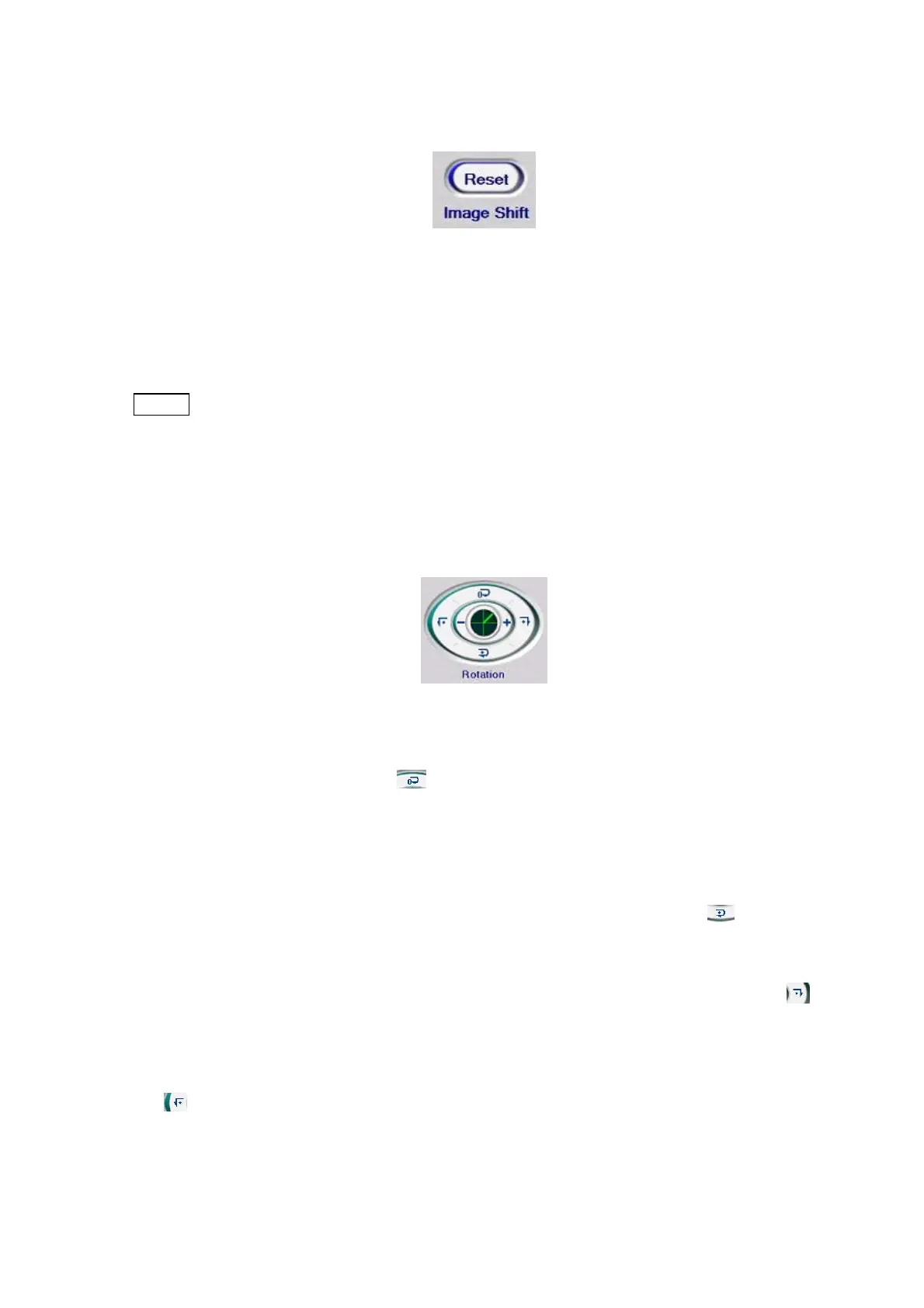

Figure 4.3.23 Image Shift Reset Button
Clicking the Image Shift Reset button resets the FOV to the condition that existed before the
Image Shift (see 4.2.10 2.) was performed.
NOTE
: Because the range over which the FOV can be moved by image shifting is limited
(see Section 1.3), if the FOV ceases to move, press the Reset button once, move
the FOV by manipulating the XY knobs, and then use the Image Shift again for
fine adjustments.
4.3.24 Rotation Button
Figure 4.3.24-1 Rotation Button
1. Resetting to 0° Clicking the
mark changes the image into a non-rotated image.
The position orthogonal to the direction extending from the front of the system main unit to
the back of it is 0° (reference position). This is the position in which the operation of the XY
motion knobs on the specimen stage matches the direction of motion of the image.
2. Rotating the Image by 180° from the Current Position Clicking the
mark
rotates the image by 180° from the current position.
3. Rotating the Image Clockwise by 90° from the Current Position Clicking the
mark rotates the image clockwise by 90° from the current position.
4. Rotating the Image Counterclockwise by 90° from the Current Position Clicking
the
mark rotates the image counterclockwise by 90° from the current position.
