4 - 96
4.3.32 Image Balance Window

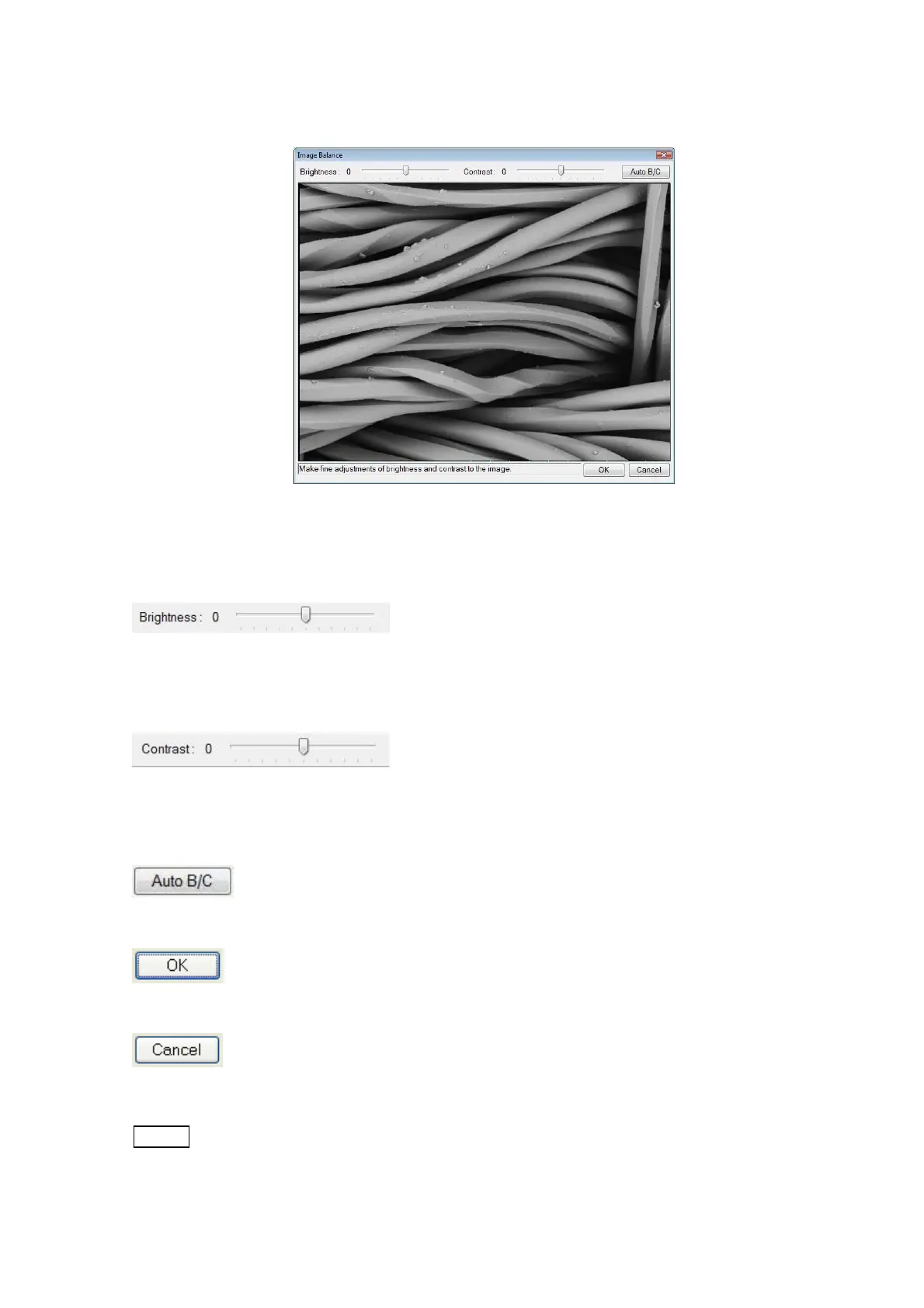

Figure 4.3.32 Image Balance Window
This window allows the user to adjust the image on the Data Entry window.
Brightness slider: Adjusts the brightness. Dragging the slider to the right
increases the brightness; dragging it to the left decreases it.
Contrast slider: Adjusts the contrast. Dragging the slider to the right increases
the contrast; dragging it to the left decreases it.
Auto B/C button: Automatically adjusts the brightness and contrast based on
the image on the Data Entry window.
OK button: Applies the results of adjustments to the image on the Data Entry
screen and closes the Adjustment screen.
Cancel button: Closes the Adjustment screen without applying the results of
adjustments to the image on the Data Entry window.
NOTE
: Only the image on the Data Entry window can be adjusted; freeze images and
images being observed on the Observation screen cannot be adjusted.
