Hitachi TM3000 - Quick Save Button

4 - 63
4.3.14 Quick Save Button

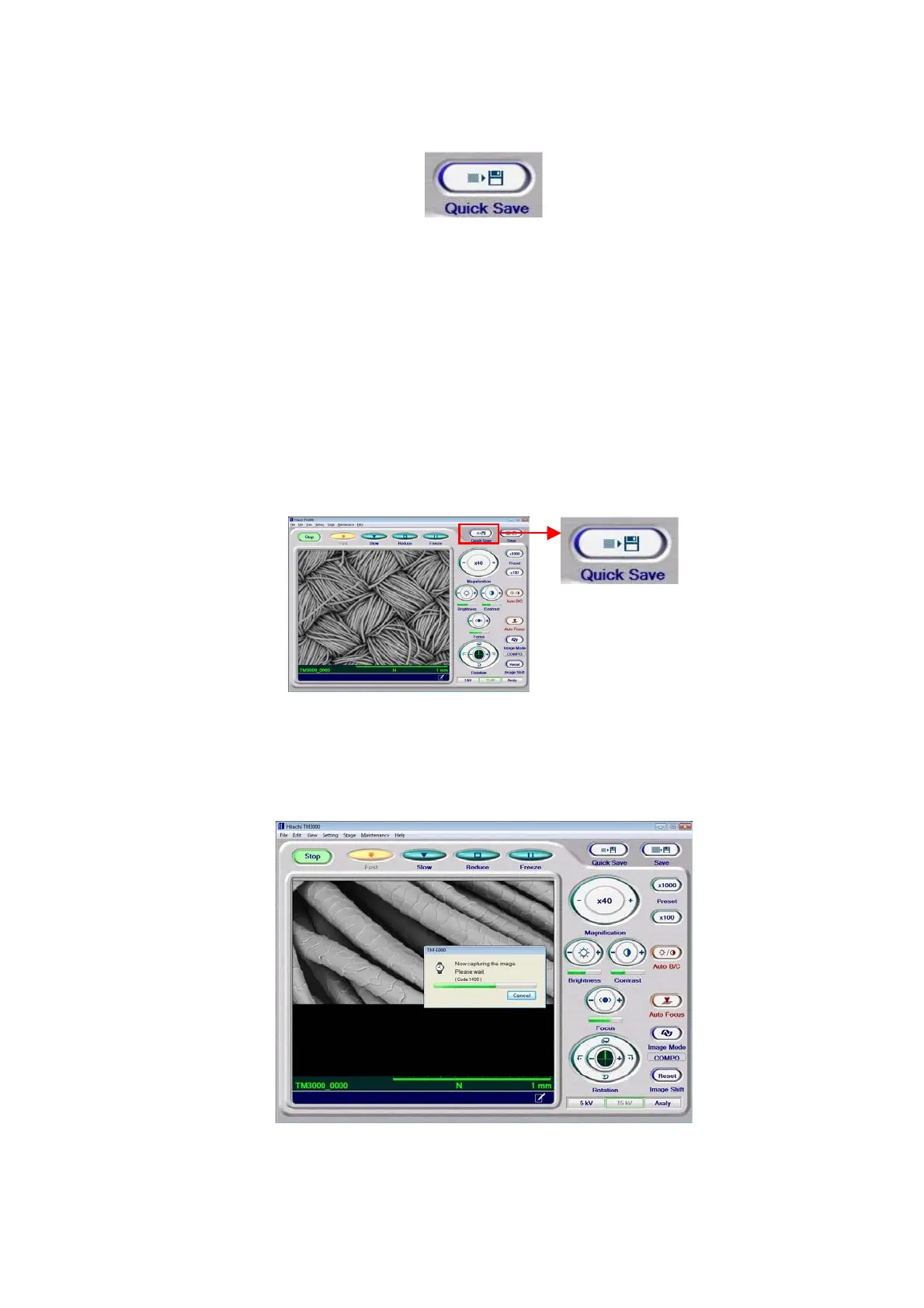

Figure 4.3.14-1 Quick Save Button
This button saves the currently displayed image as is.
Image save size: 640x480 pixels (image only), 640x520 pixels (image + information),
640x550 pixels (image + information + comments)
Image save format: JPEG (*.jpg), bitmap (*.bmp), TIFF (*.tif)
1. To save an image, either click the Save button or select Quick Save from Save Image on
the File menu.
Figure 4.3.14-2 Quick Save Button for Image Data
2. The view mode changes to the Freeze mode (the observation image pauses).
Figure 4.3.14-3 Image Data Pause Screen
