4 - 76

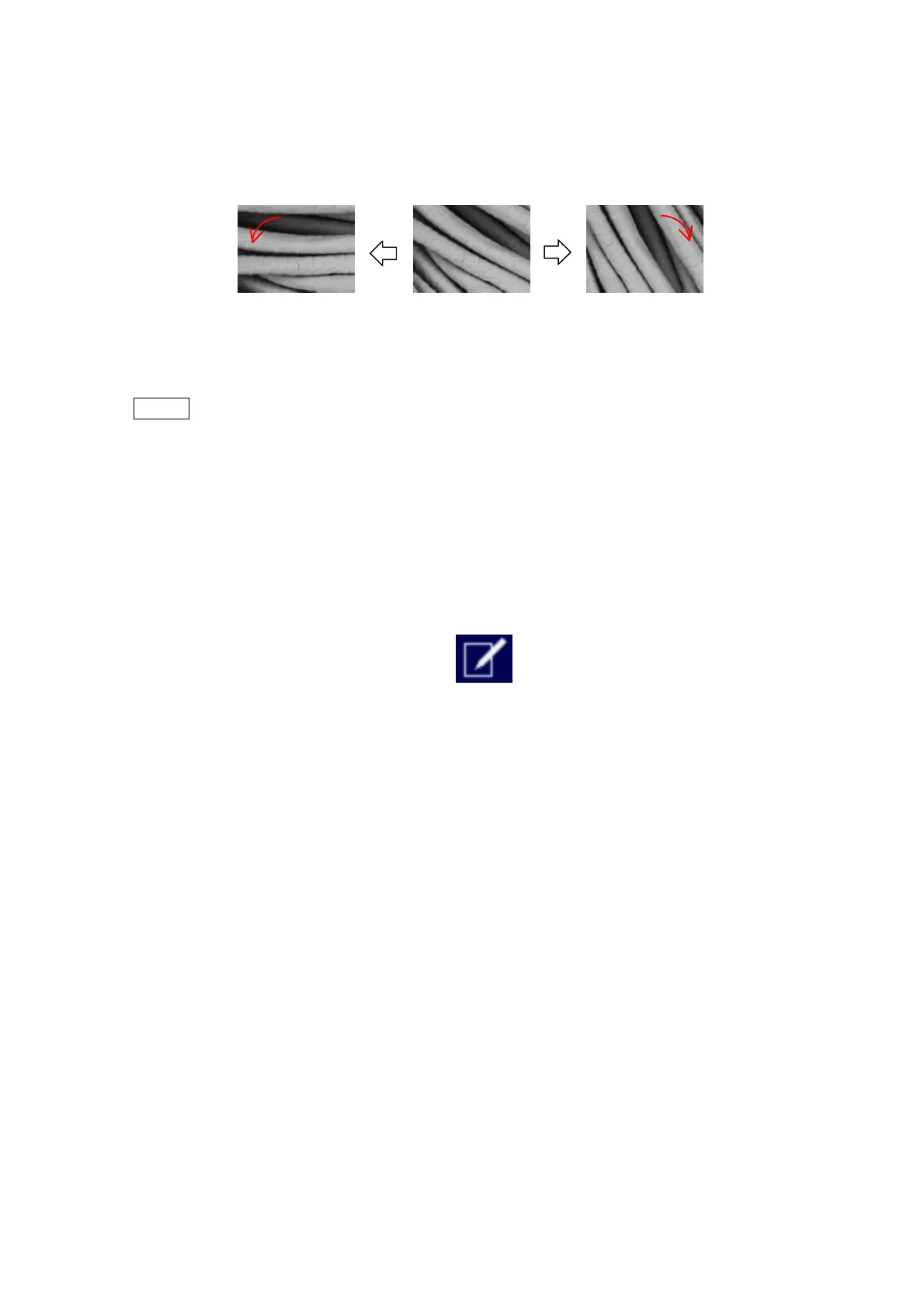

5. Fine-Adjusting the Rotational Position Clicking the + mark rotates the image
clockwise; the – mark rotates it counterclockwise. Clicking it continuously produces continuous
change one step at a time.
Figure 4.3.24-2 Selecting an Observation FOV (Rotation Operation)
NOTE
: If the rotation position is not 0° (the reference position), the operation of the motion
knobs for the specimen does not match the direction of motion of the image.
The current angle of rotation is represented by the indicator provided in the center of the
button. The 0°rotational angle (the reference position) means that the indicator shows a
position directly above the button.
4.3.25 Edit Button
Figure 4.3.25-1 Edit Button
Displays the Setting for Save Window. Use this window to set an Information/Comments area
on the image being observed or auxiliary information (the Save Image type that permits the
inclusion of information and comments in the image file) in the saved image.
On this window, the user can set information show/hide, edit any comments that are entered,
and select the desired image save type.
Image turns to (-) Image turns to (+)
