2 - 15
2.2.3
Setup of System Files
1.
Se
tu
p
Sy
ste
m
Fil
es
. Click the button [Installation for TM3000 applicat
ion].
Click

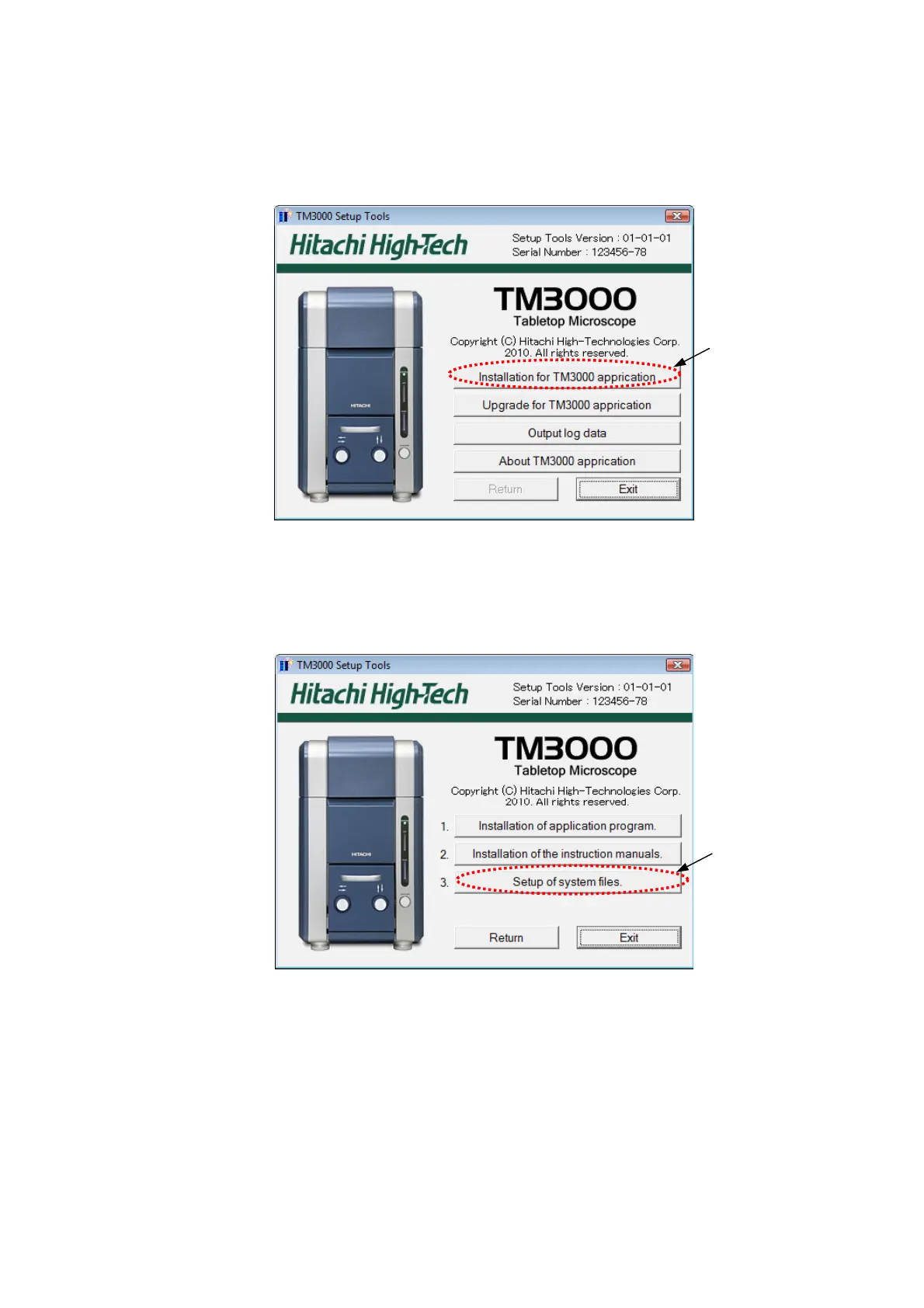

Figure 2.2.3-1
The Main Menu of TM3000 Setup Tools
2.
The following window appears. Click the button [Setup of system files].
Click
Figure 2.2.3-2
Installation Menu of TM3000 Setup Tools
