NOTE : If a magnification is embedded in the information area and the saving of a digital
zoom image is executed, the magnification is also embedded in the saved image.
The embedded magnification will be the virtual magnification [D x MMM] used
during the execution of digital zooming. If the magnification value is 1000 or
higher, the notation xM.Mk will be used, or if it is 10000 or higher, xMMk will be
used.
4.3.31 Data Entry/Measurement Window

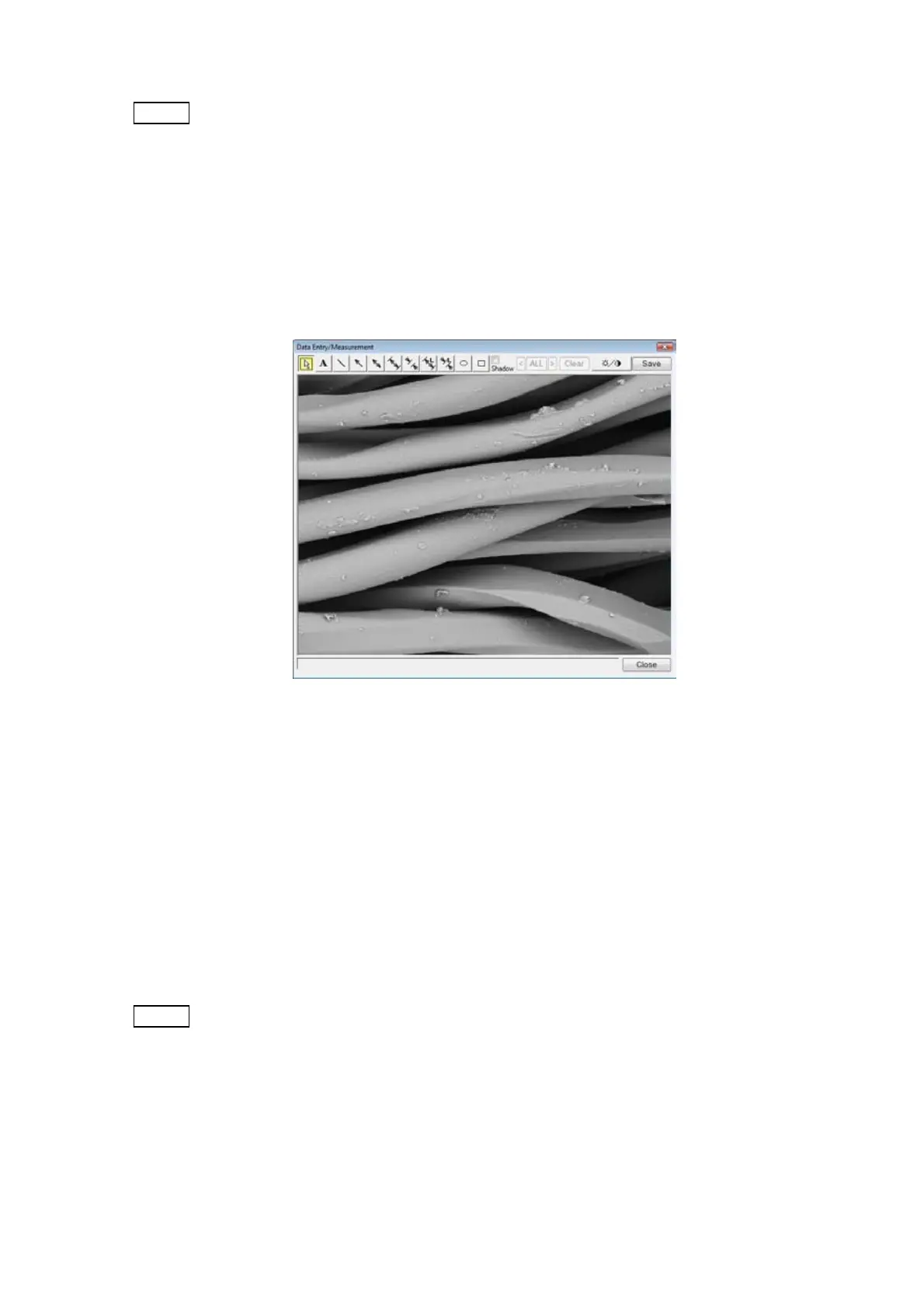

Figure 4.3.31-1 Data Entry/Measurement Window
A maximum of 50 characters and graphics can be written onto an observed screen. In
addition, the distance between two points can be measured (using the Quick Measurement
function).
1. Data Entry Operation
1a. Set the observation mode to the freeze mode. From the Edit menu, select Data
Entry/Measurement.
NOTE
: To write characters and graphics on the observation screen, use an image that
has undergone the execution of the [Freeze Image] mode (see 4.3.11) or [Quick
Save] (see 4.3.14). Data cannot be entered in [Fast], [Slow], or [Reduce] modes.
