3.
The following message is displayed, after fi
nishing installation of System Files.

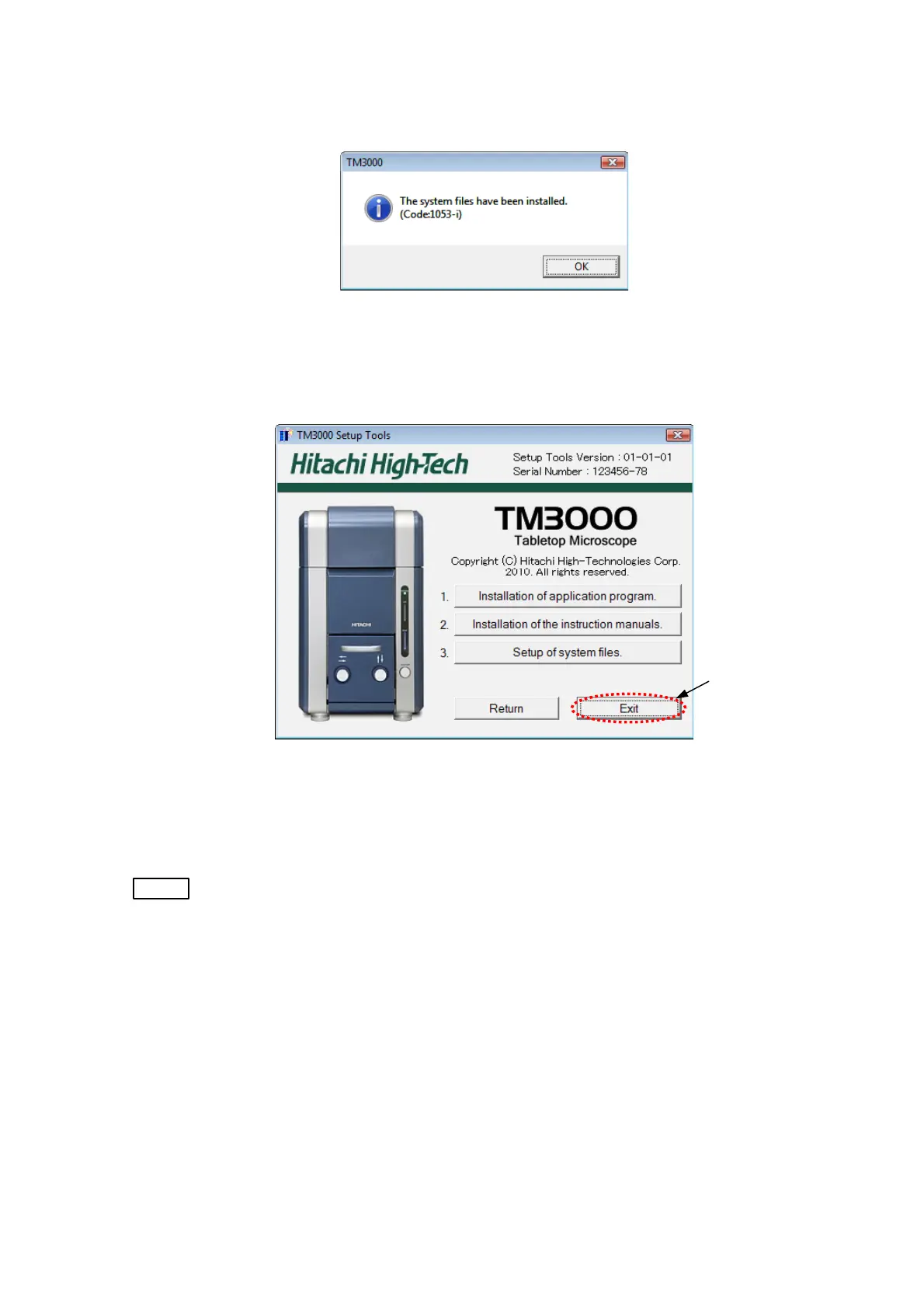

Figure 2.2.3-3
Message of Finishing Installation of System Files
4.
Click the button [Exit] of Installation menu of TM3000 Setup Tools.
Click
Figure 2.2.3-4
Installation for TM3000 Application
5.
Take out the setup disk from CD/DVD drive.
NOTE
:
In a setup disk, system data at the time
of the shipment of the device are saved.
Please keep it carefully. Never lost!
2 - 16
52
54
Table of Contents
Preface
3
Important
5
Product Warranty
5
Installation, Relocation, and after Service
7
Disposal
8
System Life
8
Workshop and Training for Customers
8
Miscellaneous
9
For the Safe Handling of the System
10
General Precautions on Safety
12
Warning
12
Caution
12
WARNING and CAUTION Labels on the System
16
To Avoid Serious Property Damage or Damage to the System
18
About the Power Supply
18
About the Cable Connection
18
About the Detector
18
About Power Outages
19
On the Power Supply for the PC
19
On Data Backup
19
About Application Software
19
About the Computer Virus
20
About Network Connection
21
For the Proper Use of the System While Avoiding Minor Damage to It
22
Installing the Control Application
22
Properties of the PC Screen
22
About PC Freezing
22
About the Power Saving Feature and the Screen Saver
22
Table of Contents
24
Precautions on Operating the System
25
Precautions on Handling
29
Precautions on Using the System
29
Electromagnetic Wave Interference
30
Emergency Action
30
Miscellaneous
30
1 Specifications and Installation Conditions
31
Overview
31
Features
32
Specifications
33
Installation Conditions
34
PC Specifications
37
Customer-Provided Items
37
2 Installation and Setup
38
Connecting to the PC
38
Setting up the PC
39
Installing an Application
39
Installing an Instruction Manual
47
Setup of System Files
52
Checking the Installation of Application
54
Installing the USB Driver Software
55
Checking the Driver Software
56
Screen Settings
58
Changing the Default Input Language
75
Setting an Observation Screen Size
79
Adding a User Account
84
Uninstalling an Application Program
87
Uninstalling an Instruction Manual
89
Upgrade
91
Upgrade of an Application
91
Upgrade (Repair) of Application
96
Downgrade of Application
98
Upgrade of Instruction Manual
99
Upgrade (Repair) of Instruction Manual
103
Downgrade of Instruction Manual
104
About TM3000 Setup Disk (a Brief Explanation /Summary)
105
Installing an Application
106
Upgrade for TM3000 Application
107
Output Log Data
108
About TM3000 Application
108
Exit
108
3 System Configuration
109
Part Names
110
Main Unit
110
Diaphragm Pump
112
4 Operations
114
Summary of Operations
114
Operation Units
114
Operation Windows
115
Basic Operations
117
Starting the System
117
Fixing a Specimen and Adjusting Its Height
117
Changing Specimens
125
Starting Observing an Image
131
Selecting a Display Mode
132
Setting an Observation Mode
134
Setting an Observation Condition
135
Adjusting the Brightness/Contrast of an Image
135
Coarse Adjustment of the Focus
137
Selecting an Observation FOV
138
Setting an Image Mode
143
Setting a Magnification
143
Fine Focusing
146
Saving the Image Data
149
Checking the Image Data
151
Terminating the Image Observation
152
Shutting down the System
153
Detailed Description of Functions
155
Image Viewing Area
155
Information/Comments Area
155
File Menu
156
Edit Menu
158
View Menu
159
Setting Menu
161
Stage Menu
163
Maintenance Menu
166
Help Menu
167
Start/Stop Button
168
View Mode Selection Button
170
Image Mode Button
171
Observation Condition Selection Button
174
Quick Save Button
176
Save Button
178
Magnification Button
180
Preset Buttons
181
Brightness Button
181
Contrast Button
183
Auto B/C Button
185
Focus Button
186
Auto Focus Button
187
Image Shift Reset Button
188
Rotation Button
188
Edit Button
189
Minimize Button
196
Exit Button
196
Setting for Save Window
197
Save Image Window
198
Digital Zoom Window
200
Data Entry/Measurement Window
204
Image Balance Window
209
Preset Magnification Window
210
Auto B/C Adjustment Window
210
Control Sensitivity Window
211
Beam Axis Alignment Window
212
Observation Screen Size Window
214
Astigmatism Correction
215
User Information Window
216
Version Information Window
217
5 Maintenance
218
Filament Replacement
219
Beam Axis Adjustment
227
Condenser Lens Aperture Replacement
236
Objective Aperture Replacement
240
Error Messages
244
Messages that Are Displayed When a Given Application Is Started
244
Initial Startup Window (During Initialization)
246
Normal Observation Screen
248
Wait Message Window
264
Termination Process
266
6 Replacement Parts
267
Consumables
267
Limited Life Parts
268
Spare Parts
270
Requirements for Conformity
271
