4 - 95

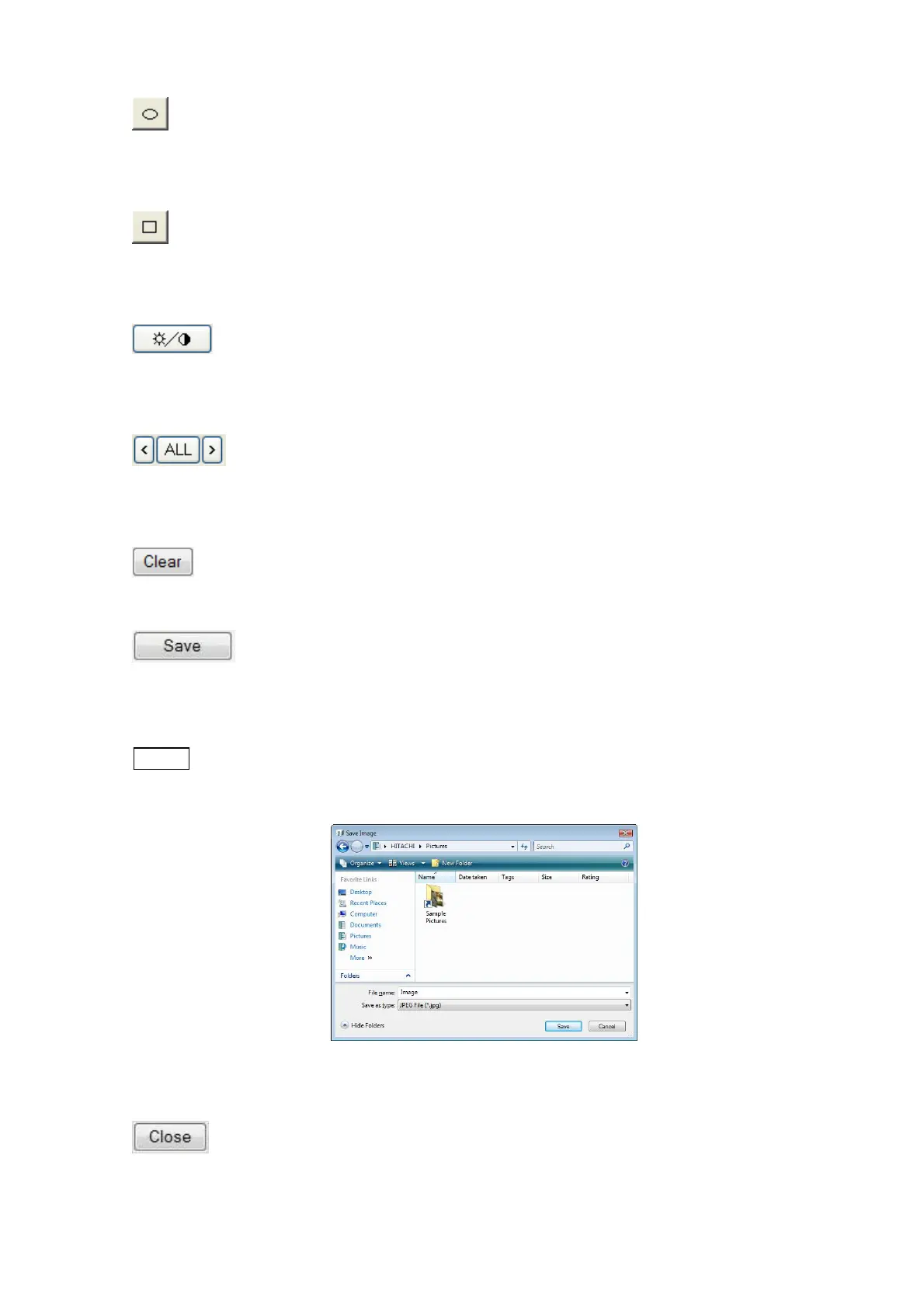

Circle button: Draws a circle. Left-click the mouse at the starting point of the circle,
move the mouse while holding down on the button, and release the button to draw the
circle.
Square button: Draws a square. Left-click the mouse at the starting point of the
square, move the mouse while holding down on the button, and release the button to
draw the square.
Image adjustment screen: Calls an image adjustment screen. The brightness
and contrast can be adjusted on this screen. For details, see 4.3.32 Image
adjustment screen.
Delete selection button: Allows the user to select the data to be deleted. The
data can be selected in sequence by pressing the [＜] and [＞] keys (the
selected data ia highlighted in red.) [ALL] selects all input data.
Clear button: Deletes the input data that was selected using the above Delete
Select button.
Saves the image for which data was entered. As the Save Image Window
appears, enter the file name, and save the image by selecting the destination
of save and the file type. If not saving the image, click he [Cancel] button.
NOTE
: Any of the following characters cannot be used in a file name: [\ / : ; * ? " < > | ! ' &]
(half-width characters).
Figure 4.3.31-6 Save Image Window
Closes the window
To Next Page
