Figure 4.2.3-3 Taking Out the Specimen Stub Assembly
5. Insert the specimen stub assembly, with its height already adjusted, securely into the
holder base for the stage until it stops.
Lock nut 2 can be fixed with the hexagon socket head screw outside of the holder base.
Tighten the hexagon socket head screw with the ball wrench 2 when observing at high
magnification or observing the heavy specimen.

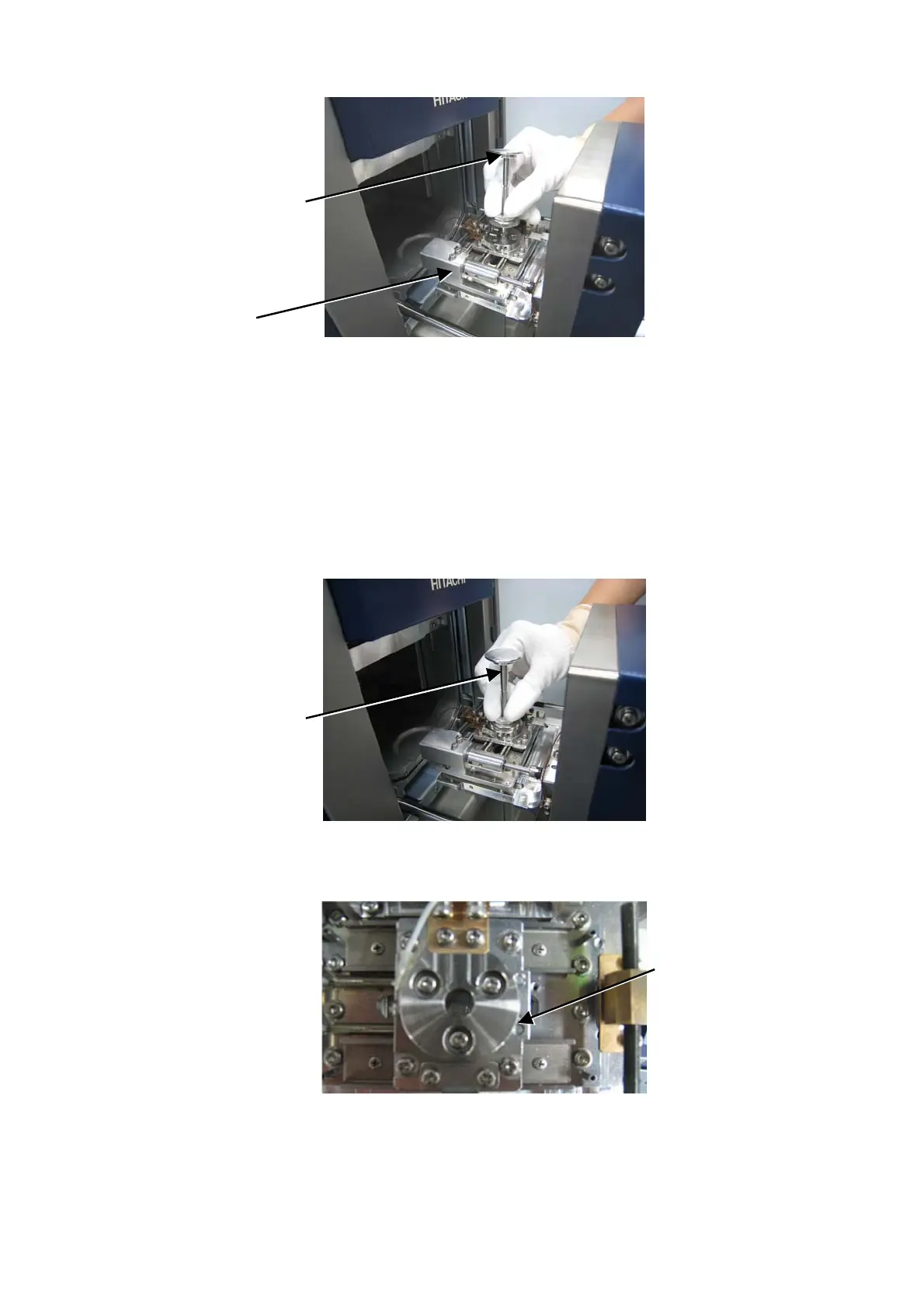

Figure 4.2.3-4 Attaching the Specimen Stub Assembly
Figure 4.2.3-5 Hexagon Socket Head Screw That Fixes Lock Nut 2
Stage
Specimen stub
Specimen stub assembly
Hexagon socket head screw
