Press OK, and the makeup stream is ejected from the nozzle orifice.

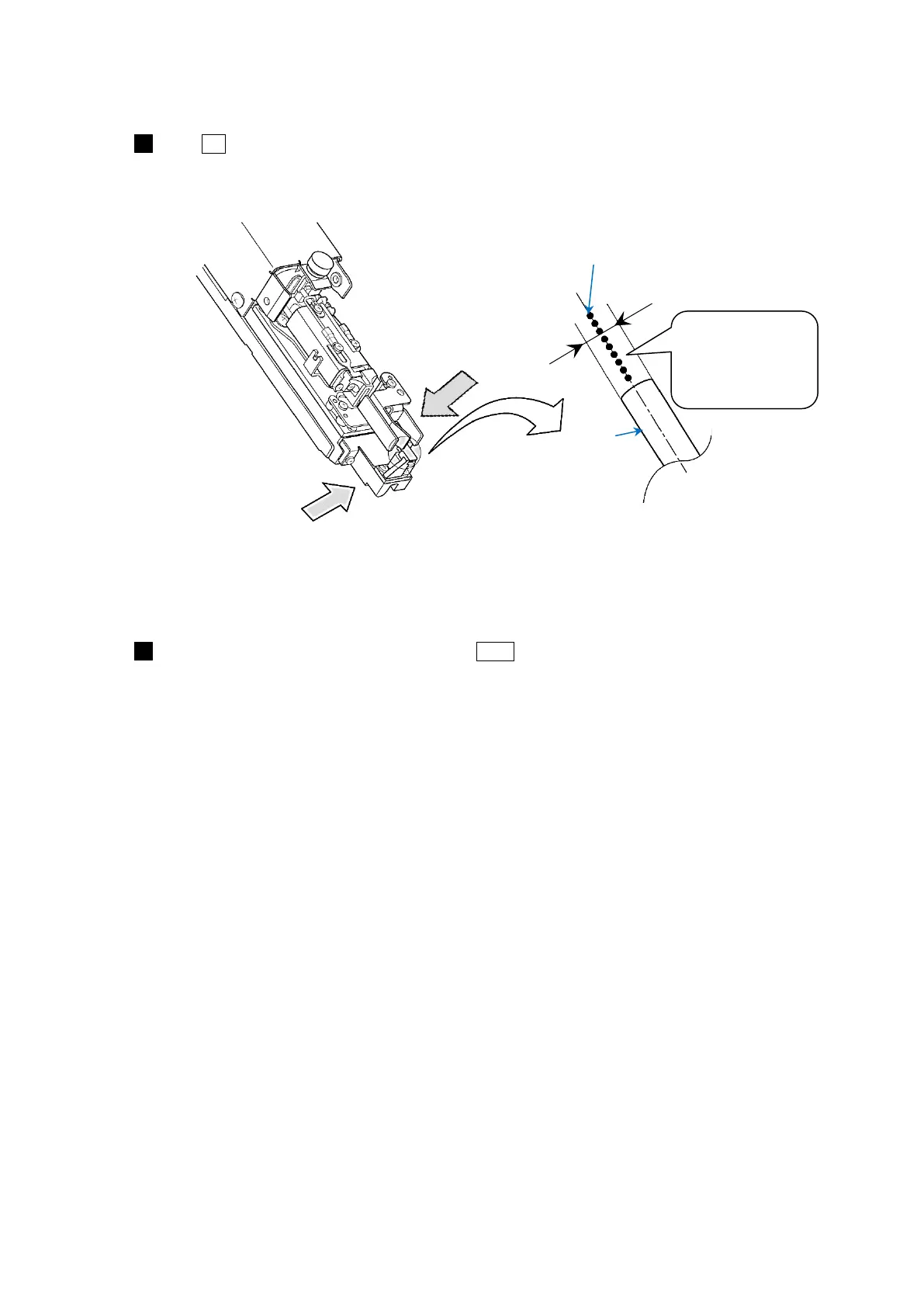

Check the makeup stream position from the upper and side directions of the print head as shown in the
figure below.
If the stream is not in the center of the gutter, perform the nozzle backwash again.
If the problem is not corrected even after the nozzle backwash is performed three times, see "5.4.2.
Disassembly and Cleaning of Nozzle Orifice".
After checking the makeup stream position, press Abort to stop the makeup ejection.
7
Upper direction
Gutter
Makeup stream (Its actual color is transparent.)
Gutter outside diameter
The stream should
be positioned in the
center of the gutter
inlet.
Side direction
8
