6.1.2. How to Install Cleaning Station on Parts Other Than Main body
This section describes how to install the Cleaning Station on parts other than the main body.
When the Slide base is fixed at any location, the Cleaning Station can be installed away from the IJP main
body.
* The length of the cleaning unit cable is 4.5 m.
(1) Provide four M4 screw holes at a location where you want to install the Cleaning Station.

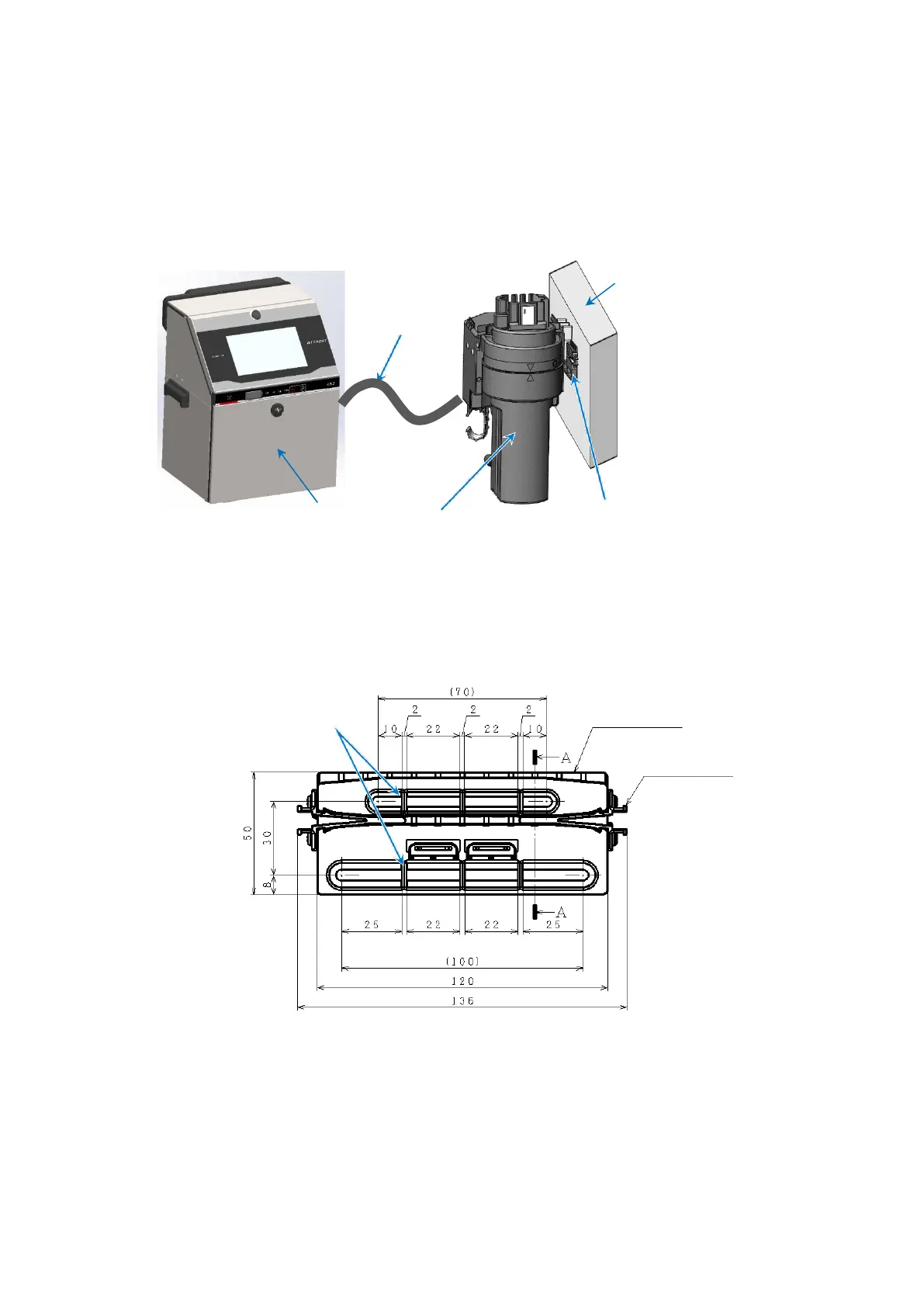

● The screws of the Slide base should be spaced referring to the dimensions shown below. Avoid
interference with the ribs of the screw mounting part.
IJP main body
Cleaning station
Slide base
Any location where the
Slide base is fixed
cleaning unit
cable (*)
Rib of the screw mounting part
(at six locations in total on the
top and bottom)
Unit: mm
Slide base
Slide stopper
Slide base
