121

(10) Write the start date of use on the cleaning solvent container label of accessories and attach it on the

cleaning solvent container like below.

NOTE

● The service life of a cleaning solvent container is about two years. If the surface of the cleaning

solvent container is broken, cracked, or chipped, stop using it and replace it with a new one.

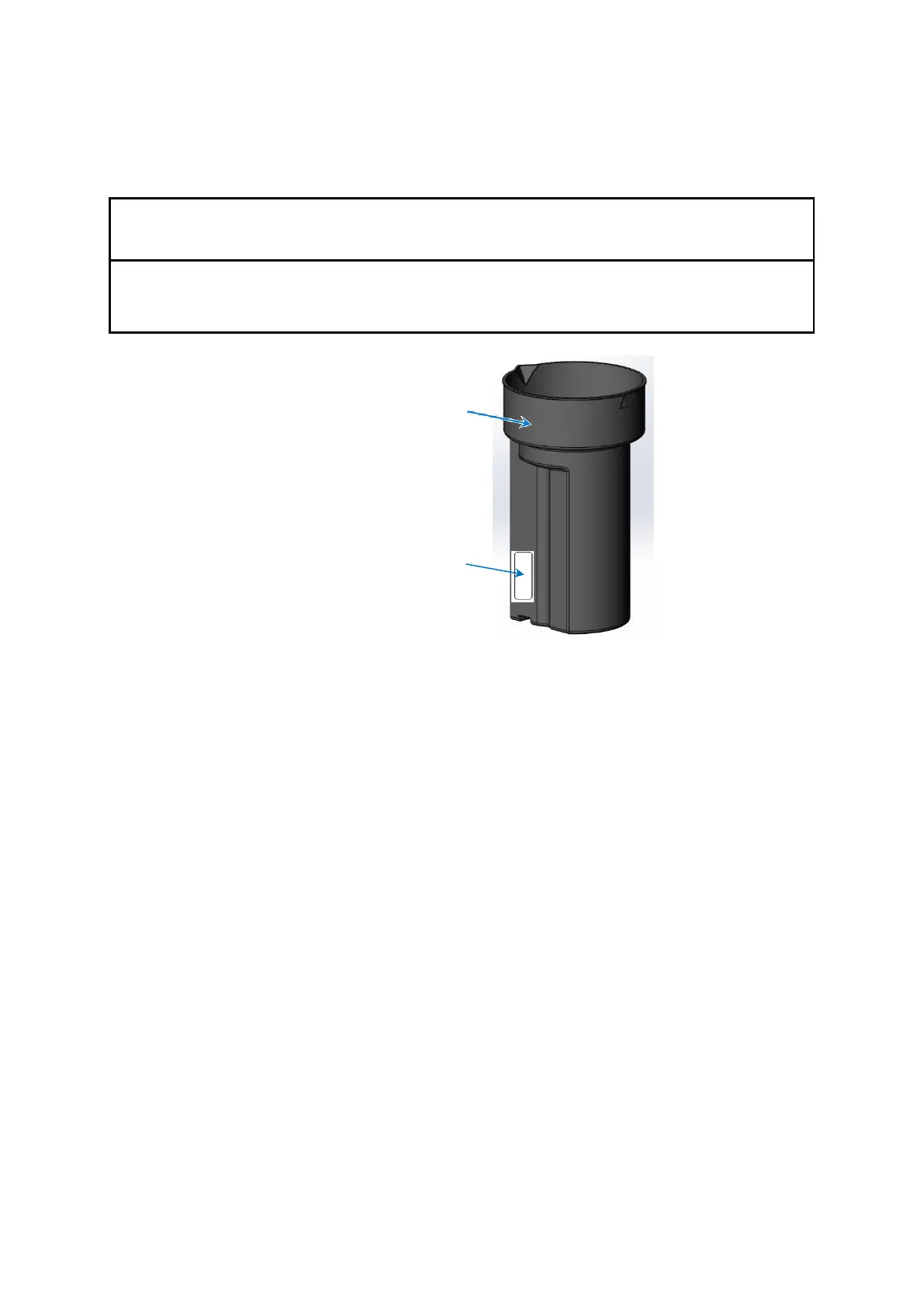

Attachment position of cleaning solvent container label

(11) Install the cleaning solvent container on the Cleaning station in the reverse order of its removal

operation.

Cleaning solvent container

Cleaning solvent container label
