4.3.4.3. Ready Output (Output via NPN/PNP Interfaces: Pin Number 10 on Terminal Block
TB1, Relay Output: Pin Numbers 1 to 3 on Terminal Block TB5 *TB5 IS OPTIONAL
PARTS.)
The ready output provides a function that outputs a signal to the outside indicating that the IJ Printer is in the
ready state.
This function is used to stop the conveyor when printing cannot be performed in the IJ Printer, in order to
prevent the products that are not printed from being transported.
To connect this signal to relay output, set the ready output switch to "1". See "(3) Handling the ready output
selector".

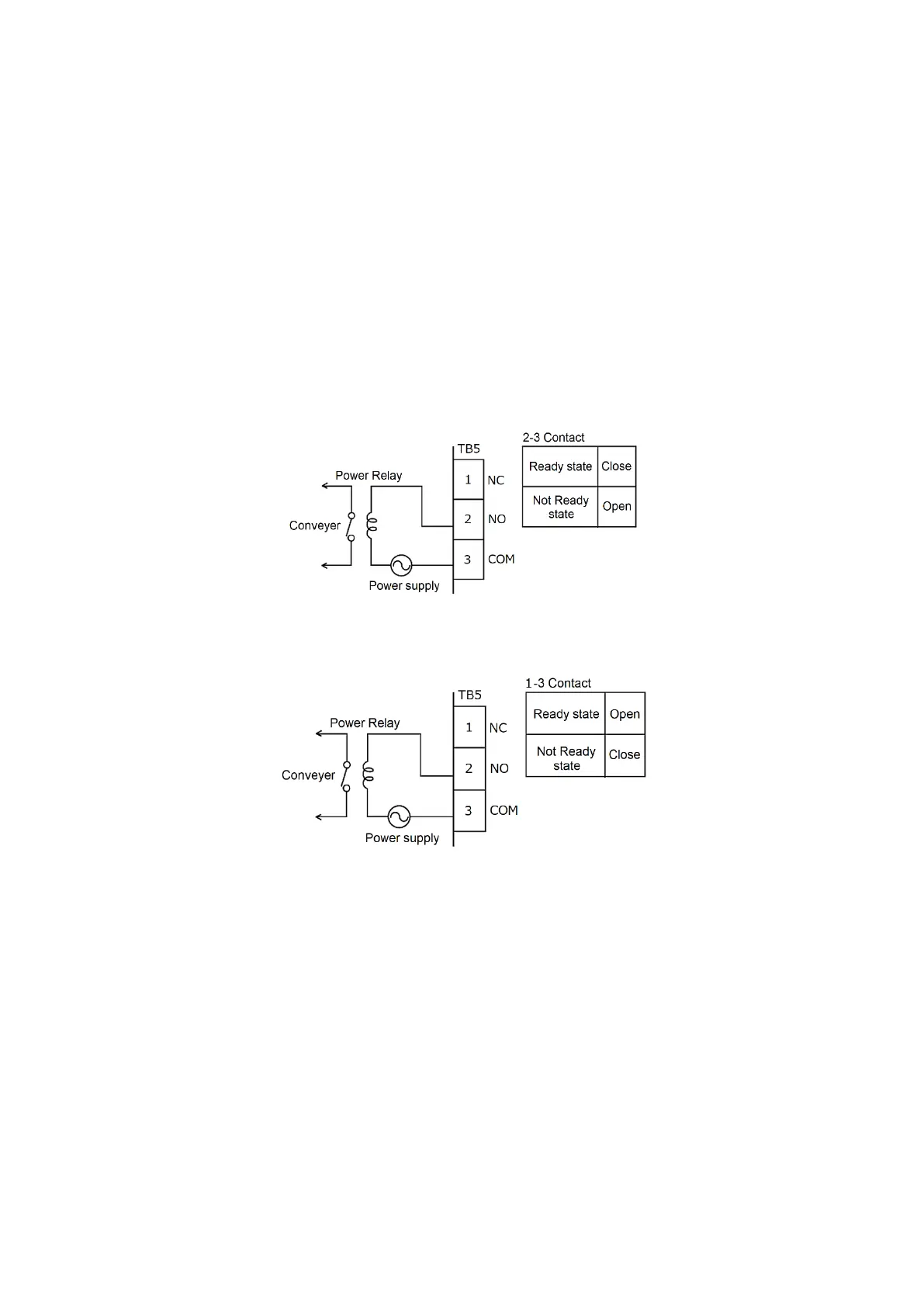

[When the signal is connected to relay output]
(1) When NO (contact a) is used
(2) When NC (contact b) is used
