Vehicle Care 10-53

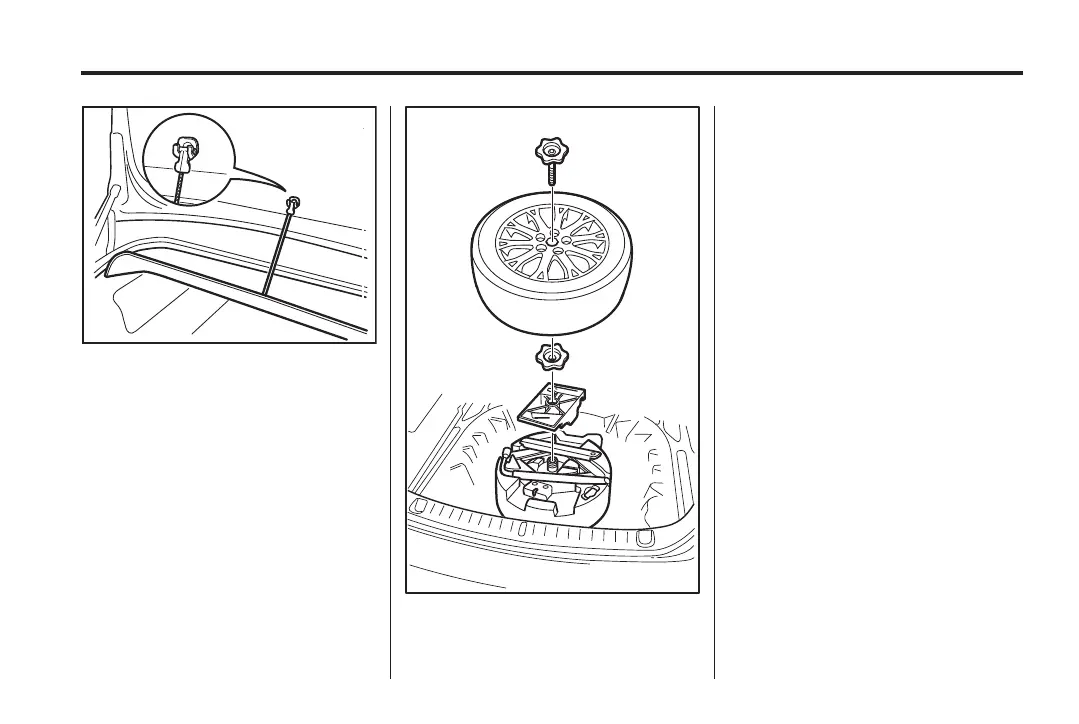

9. Lift the cover by attaching the
T-piece/hook to the boot lid.
10. Undo the retainer nut by hand
and remove the spare wheel.
11. The vehicle may have a
second retaining nut and panel.
To access the tools, remove
the second retaining nut and
panel.
12. Remove the tools. See Tools
on page 10‑35.
Remove the tool container from
the vehicle if required.
13. If a centre cap is fitted that
covers the wheel nuts, remove
it using the wheel wrench.
If individual wheel nut caps are
fitted, remove each nut cap
individually using the nut cap
tool. Insert the nut cap tool into
the nut cavity, squeeze the tool
to grasp the nut cap, and pull
outwards to remove it.
14. Loosen the wheel nuts in an
anticlockwise direction, one
half to a full turn, but do not
remove the wheel nuts.
