Affirm Breast Biopsy Guidance System Service Manual
Appendix D: Biopsy Device Evaluation Procedure
MAN-05754 Revision 002 Page 89
D.3.2 Wire Localization Parameters
Keep each parameter within the valid range as stated in the following table. If you
believe that a parameter for your device is outside the valid range, contact Hologic
Technical Support desk for guidance on how to proceed.
Table 14: Wire Localization (Loc) Parameters (see also following two figures)
Needle Offset
(NO)
The vertical distance between the center of the needle and the
top of the wire localization (loc) needle adapter
0.01 to 100.0
Front Edge (FE) The horizontal distance between the alignment pin on the
wire loc needle adapter and the end of the wire needle guide
0 to 105.0
Body Size (BS) The distance between the wire loc needle and the bottom of
the needle guide
0 to 40.0

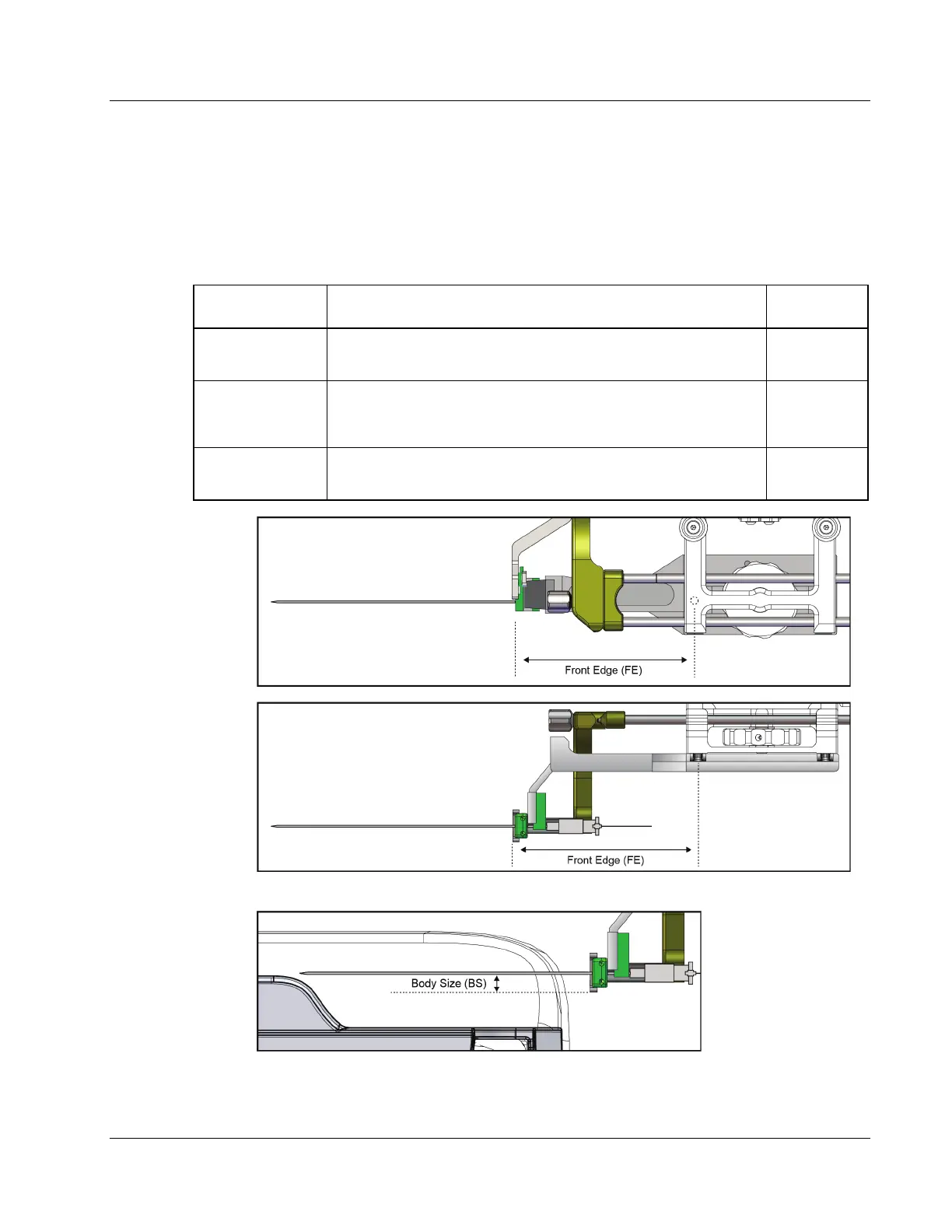

Figure 56: Needle Wire Localization Parameters - Front Edge for Lateral Arm
Figure 57:
Needle Wire Localization Parameters - Body Size for Lateral Arm
