Affirm Breast Biopsy Guidance System Service Manual
Appendix A: System Specifications
Page 66 MAN-05754 Revision 002
A.2 Lateral Arm Measurements

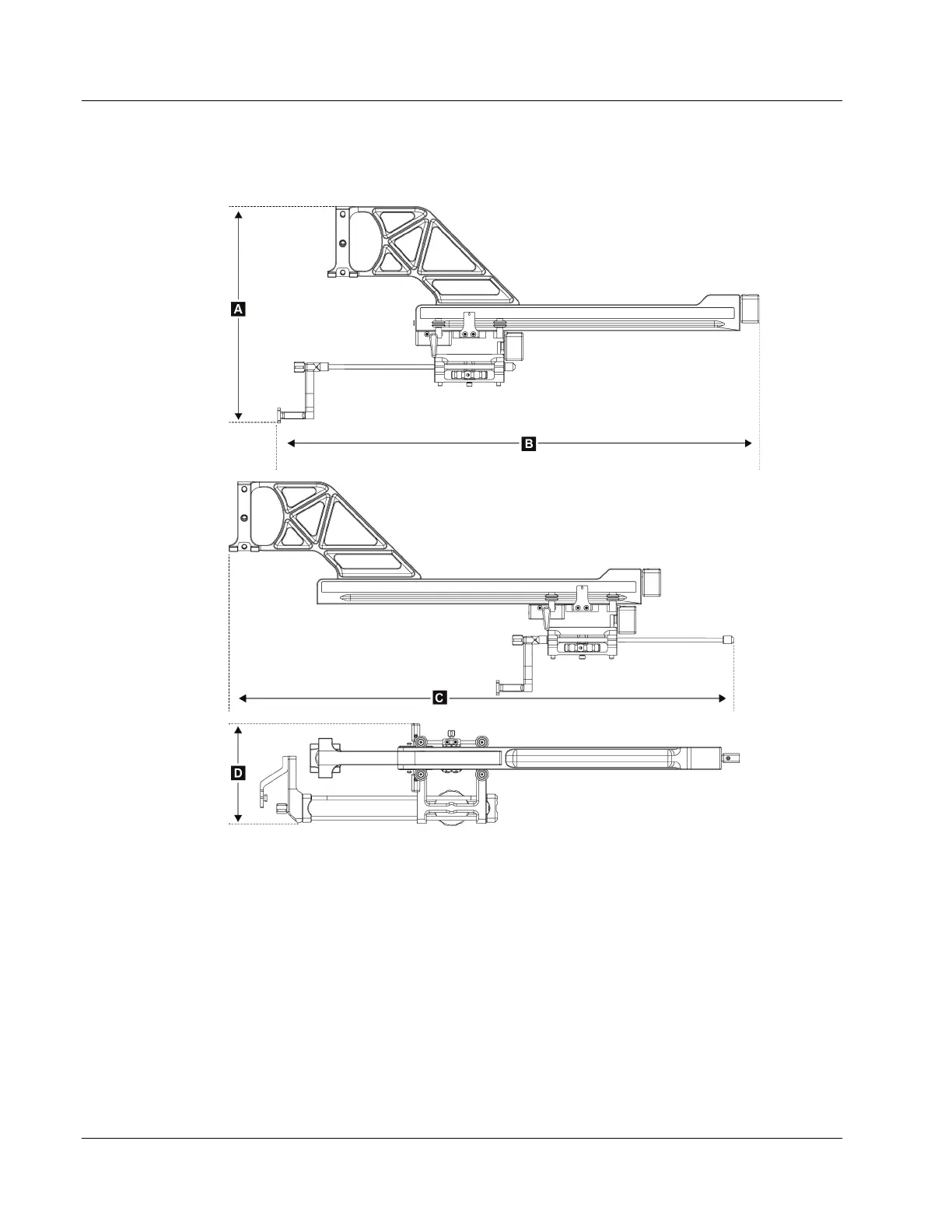

Figure 45: Lateral Arm
A. Height
24.4 cm (9.6 inches)
B. Width (Biopsy Device Mount
and Needle Guide extended
toward Lateral Arm Mount)
53.0 cm (20.9 inches)
C. Width (Biopsy Device Mount
and Needle Guide extended
toward Lateral Arm Mount)
57.4 cm (22.6 inches)
D. Depth
11.5 cm (4.5 inches)
Weight
1.24 kg (2.73 pounds)
