Affirm Breast Biopsy Guidance System Service Manual
Chapter 3: Installation, Verification, and Removal
MAN-05754 Revision 002 Page 31
The Lateral Arm can be mounted to the left or the right side of the Biopsy Guidance
Module to permit a lateral needle approach from either direction. Determine the desired
approach before mounting the Lateral Arm and install the Biopsy Control Module on the
opposite side from the desired approach.

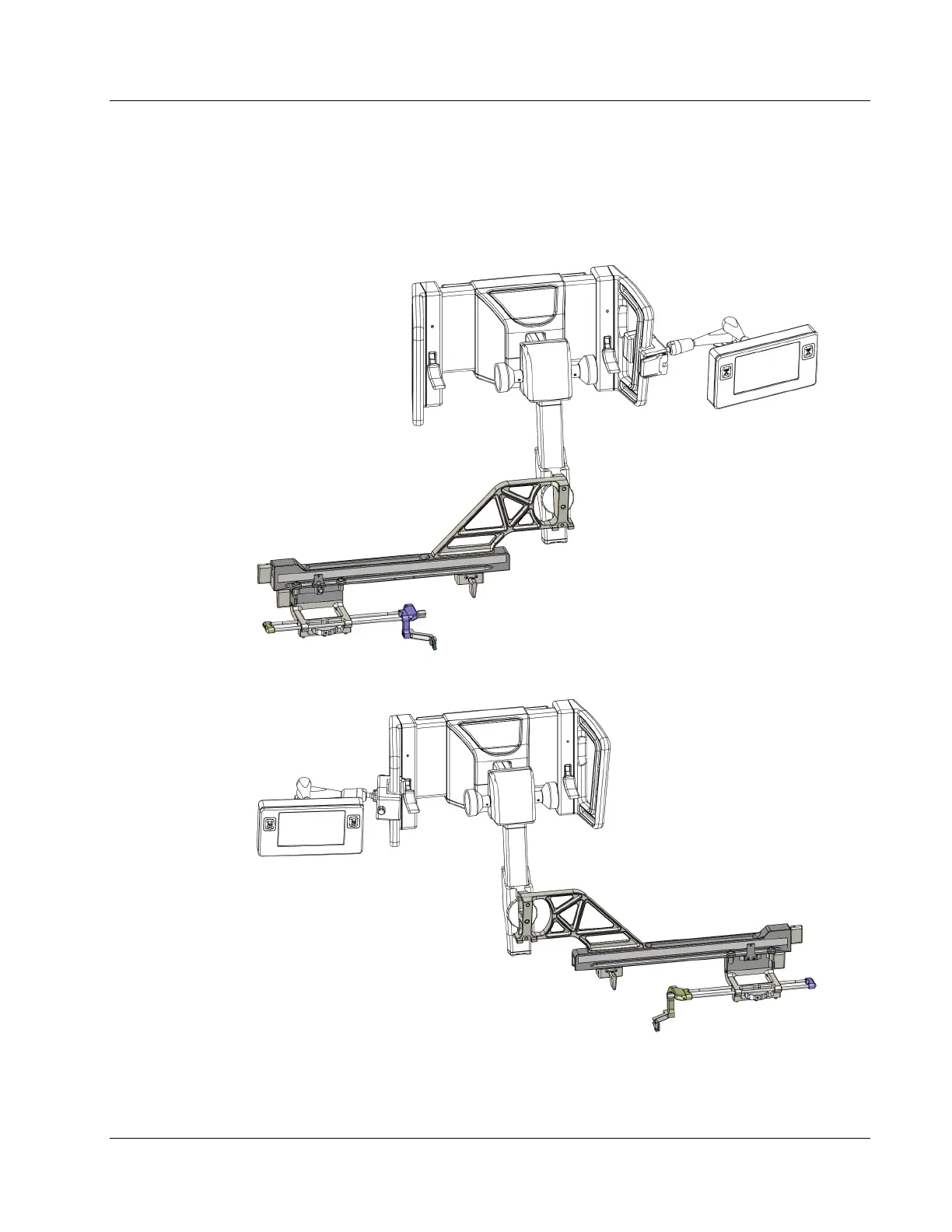

Figure 21: Left Needle Approach of Lateral Arm (Blue)
Figure 22: Right Needle Approach of Lateral Arm (Yellow)
