Affirm Breast Biopsy Guidance System Service Manual
Chapter 3: Installation, Verification, and Removal
Page 38 MAN-05754 Revision 002
2. Using the Carriage Position Indicator and the upper scale, set the Carriage position
to 220 mm.
Note
Setting the Carriage Position Indicator at 220 mm provides a safe distance from the
breast to attach the biopsy device.
3. Flip the Carriage lever completely down to the locked position.
4. Flip the device mount lever up to the unlocked position.

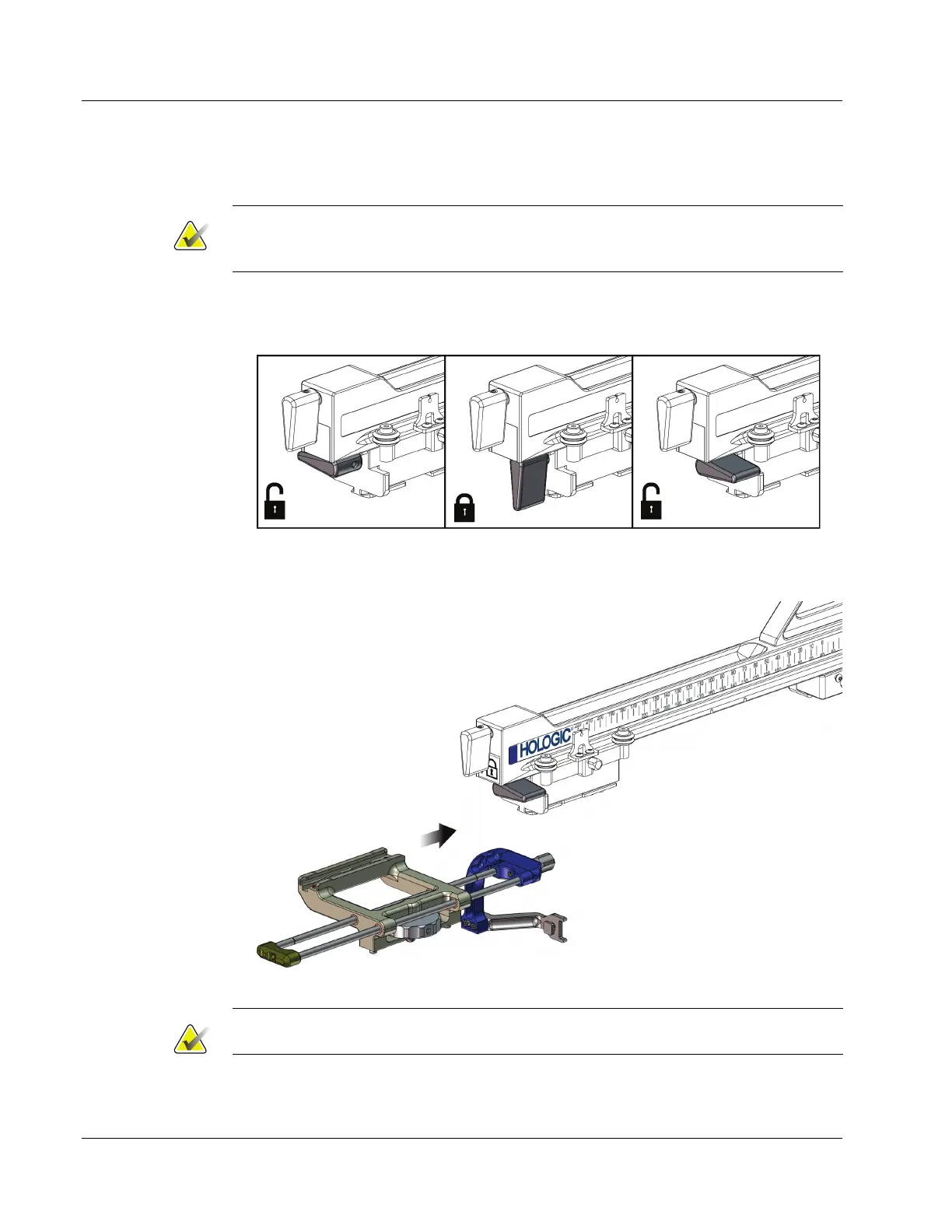

Figure 31: Locked and Unlocked Positions of Device Mount Lever
5. Slide the device mount onto the Lateral Arm Carriage until it stops.
Figure 32: Installing Device Mount onto Lateral Arm Carriage
Note
The device mount must be installed with the needle guide in front of the Lateral Arm.
6. Flip the device mount lever down to lock the device mount in position.
