Hologic Faxitron CT - Object to Imager and Source to Object Distance Chart

Faxitron CT Specimen Radiography System User Guide
Appendix A: System Specifications
Page 90 5081-9544 Revision 004
A.3.3 Object to Imager and Source to Object Distance Chart
Mag Position. Factor
OID
cm (inches)
SOD
cm (inches)
4
25.1 (9.9”)
1.8 (4.5”)
1.4
14.0 (5.5”)
3.5 (8.9”)
1.2
10.2 (4.0")
4.1 (10.4")
See Figure on next page.
Object to Imager dimensions shown at 1.2x magnification (minimum), 1.4x
magnification (typical), and 1.4x magnification (maximum)

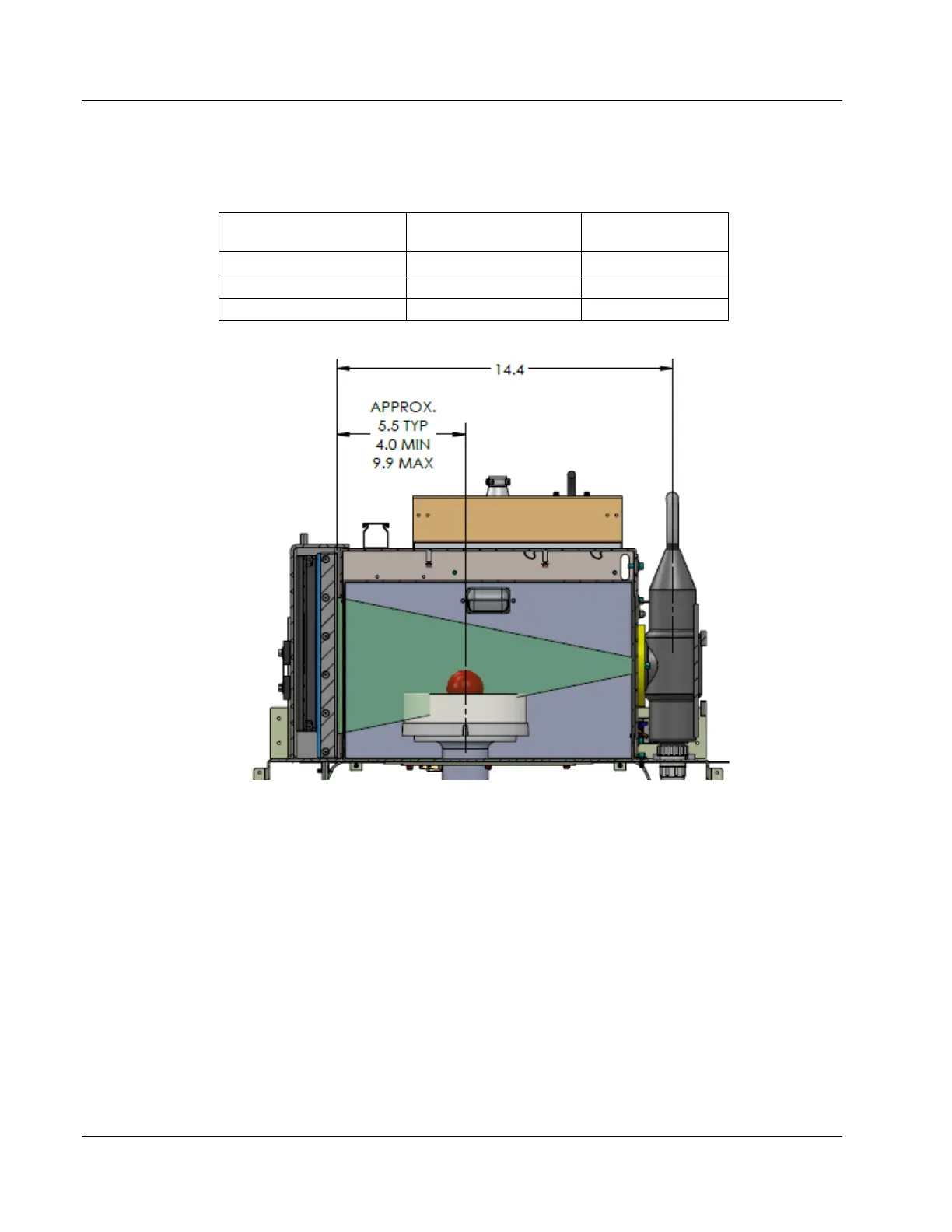

Figure 107: Source to Imager and Object to Imager Dimensions
